REAR COMBINATION LAMP

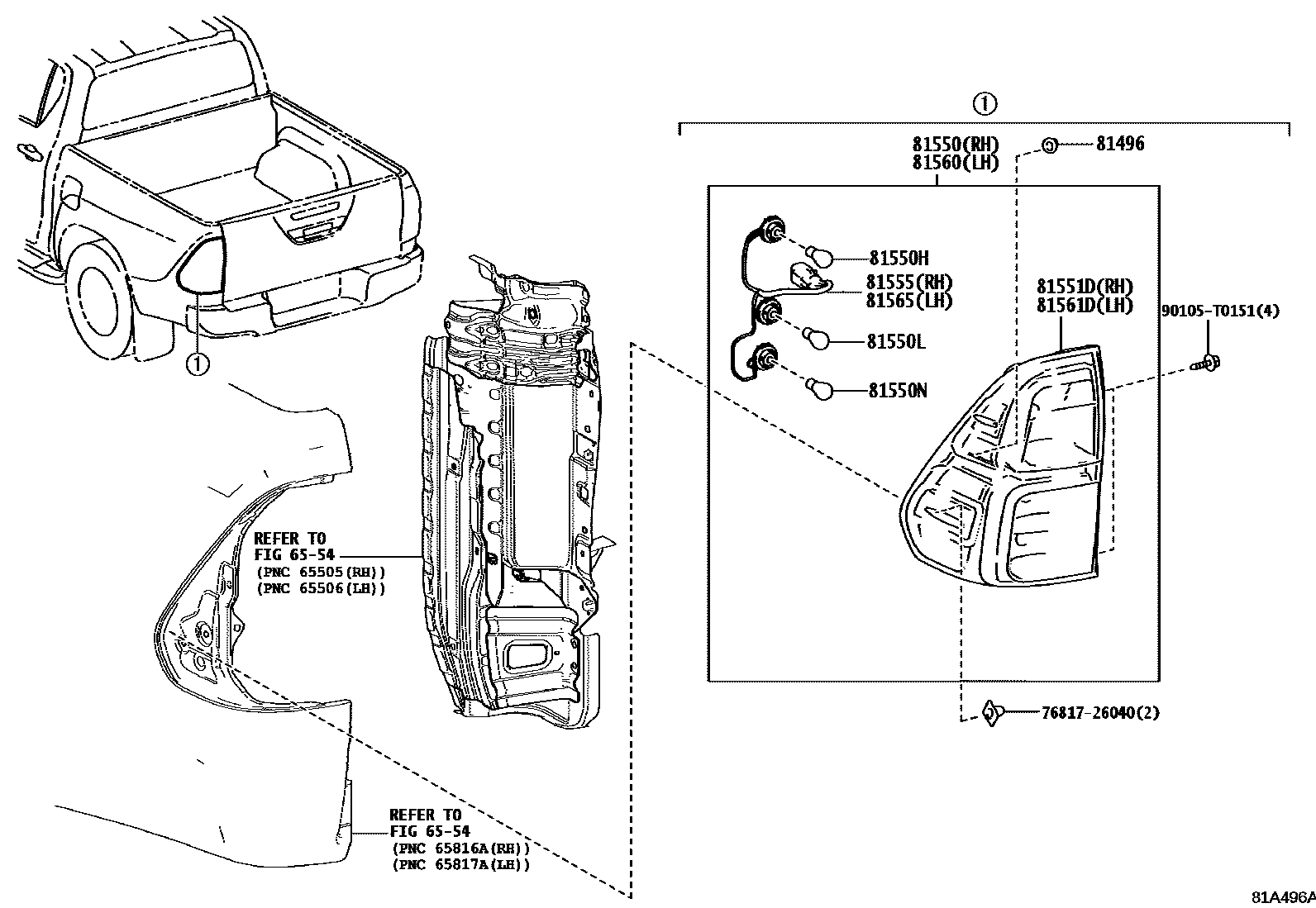

Parts diagram
6554
81496GUIDE, REAR COMBINATION LAMP
main81496-0D040i202108-202301
(L)
main81496-52020i202108-202301
(J)
81550LAMP ASSY, REAR COMBINATION, RH
main81550-0K261i202108-202207
HEADLAMP-4-BULB HALOGEN MULTI
main81550-0K281i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81550-0K291i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81550-0K360i202109-202301
main81550-0K430i202108-202110
HEADLAMP-LED
sub81550-0K431
main81550-0K431i202111-202207
HEADLAMP-LED
sub81550-0K690
main81550-0K480i202109-202301
sub81550-0K730
main81550-0K500i202109-202301
sub81550-0K750
81550HBULB, TAIL & STOP LAMP
main90981-13094i202108-202301
12V 21/5W
main90981-13094i202108-202301
12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI
main90981-TD004i202109-202301
12V 21/5W
81550LBULB, REAR TURN SIGNAL LAMP
main90981-15028i202108-202301
12V 21W,AMBER
main90981-15028i202108-202207
12V 21W,AMBER,PNC 81560 = KOITO
main90981-15028i202108-202207
12V 21W,AMBER,HEADLAMP-LED
main90981-15028i202108-202207
12V 21W,AMBER,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81560 = KOITO
main90981-TD003i202109-202301
12V 21W
81550NBULB, BACK UP LAMP
main90981-13093i202108-202301
12V 21W
main90981-13093i202108-202301
12V 21W,HEADLAMP-4-BULB HALOGEN MULTI
main90981-TD003i202109-202301
12V 21W
81551LENS, REAR COMBINATION LAMP, RH
main81551-0K360i202109-202301
81551DLENS & BODY, REAR COMBINATION LAMP, RH
main81551-0K261i202108-202207
HEADLAMP-4-BULB HALOGEN MULTI
main81551-0K281i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81551-0K291i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81551-0K430i202108-202111
HEADLAMP-LED
sub81551-0K431
main81551-0K431i202111-202207
HEADLAMP-LED
sub81551-0K690
main81551-0K480i202109-202301
main81551-0K500i202109-202301
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-0K260i202108-202207
HEADLAMP-4-BULB HALOGEN MULTI
main81555-0K281i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81555-0K291i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81555-0K430i202108-202207
HEADLAMP-LED
main81555-0K480i202109-202301
main81555-0K500i202109-202301
81560LAMP ASSY, REAR COMBINATION, LH
main81560-0K271i202108-202207
HEADLAMP-4-BULB HALOGEN MULTI
main81560-0K281i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81560-0K291i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81560-0K400i202109-202301
main81560-0K450i202108-202110
HEADLAMP-LED
sub81560-0K451
main81560-0K451i202111-202207
HEADLAMP-LED
sub81560-0K700
main81560-0K480i202109-202301
sub81560-0K730
main81560-0K490i202109-202301
sub81560-0K740
81561LENS, REAR COMBINATION LAMP, LH
main81561-0K400i202109-202301
81561DLENS & BODY, REAR COMBINATION LAMP, LH
main81561-0K271i202108-202207
HEADLAMP-4-BULB HALOGEN MULTI
main81561-0K281i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81561-0K291i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81561-0K450i202108-202111
HEADLAMP-LED
sub81561-0K451
main81561-0K451i202111-202207
HEADLAMP-LED
sub81561-0K700
main81561-0K480i202109-202301
main81561-0K490i202109-202301
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-0K270i202108-202207
HEADLAMP-4-BULB HALOGEN MULTI
main81555-0K281i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81555-0K291i202109-202301
HEADLAMP-4-BULB HALOGEN MULTI
main81555-0K440i202108-202207
HEADLAMP-LED
main81555-0K480i202109-202301
main81555-0K500i202109-202301
7681726040CLIP, BACK DOOR OUTSIDE GARNISH
main76817-26040
90105T0151
main90105-T0151

15 parts on this diagram · 3 diagrams in section
