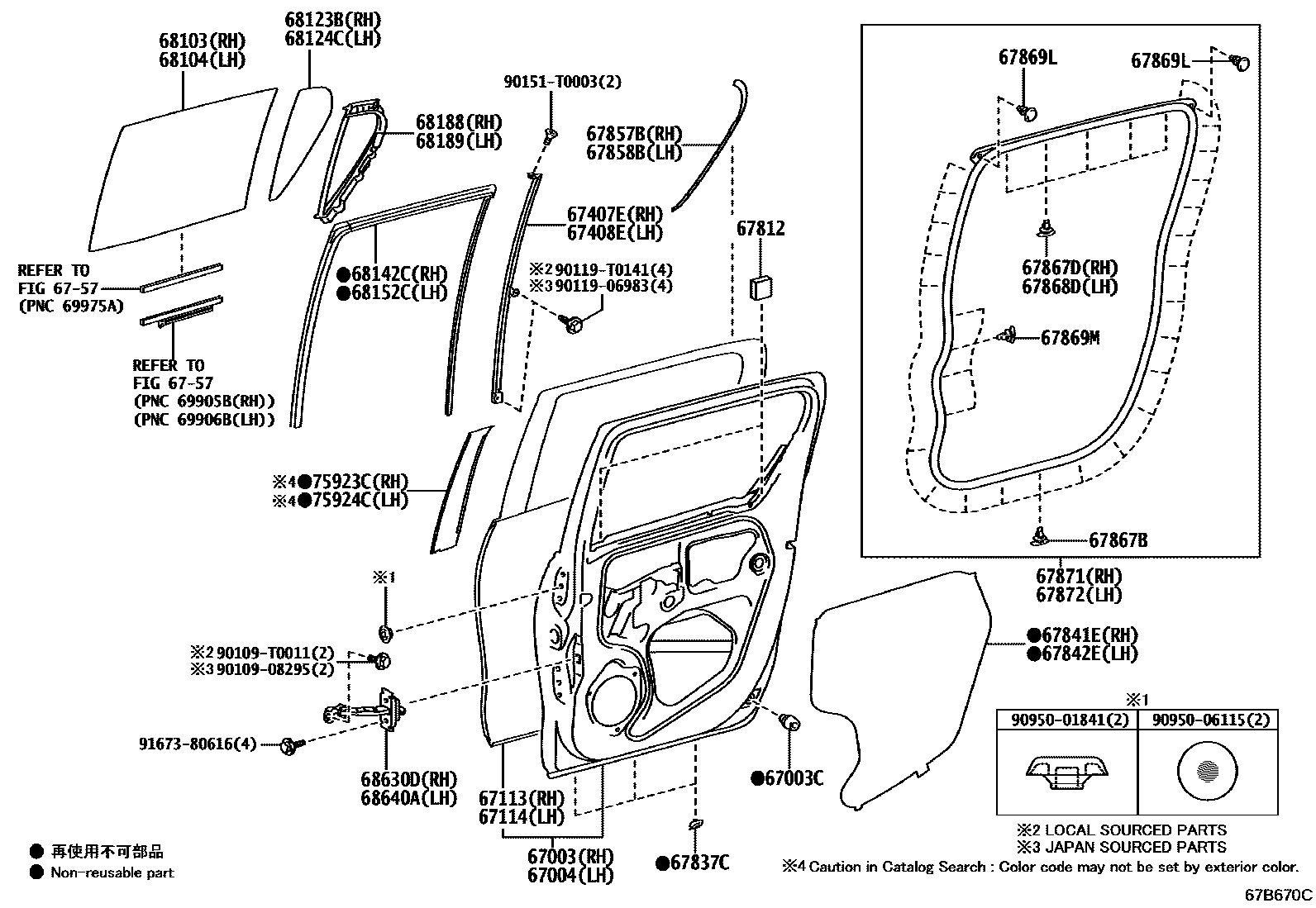

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
6757
67812PAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869LCLIP, REAR DOOR WEATHERSTRIP
67869MCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
BACK GLASS-FIX TYPE(GREEN)
BACK GLASS-FIX TYPE(PRIVACY)
68104GLASS SUB-ASSY, REAR DOOR, LH
BACK GLASS-FIX TYPE(GREEN)
BACK GLASS-FIX TYPE(PRIVACY)
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
BACK GLASS-FIX TYPE(GREEN)
BACK GLASS-FIX TYPE(PRIVACY)
68124CGLASS, REAR DOOR QUARTER WINDOW, LH
BACK GLASS-FIX TYPE(GREEN)
BACK GLASS-FIX TYPE(PRIVACY)
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75923CTAPE, BLACK OUT, NO.2 RH
BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)
BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)
75924CTAPE, BLACK OUT, NO.2 LH
BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)
BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)
9010908295
main90109-08295
90109T0011
main90109-T0011
9011906983
main90119-06983
90119T0141
main90119-T0141
90151T0003
main90151-T0003
9095001841
main90950-01841
9095006115
main90950-06115
9167380616
main91673-80616
41 parts on this diagram · 4 diagrams in section
