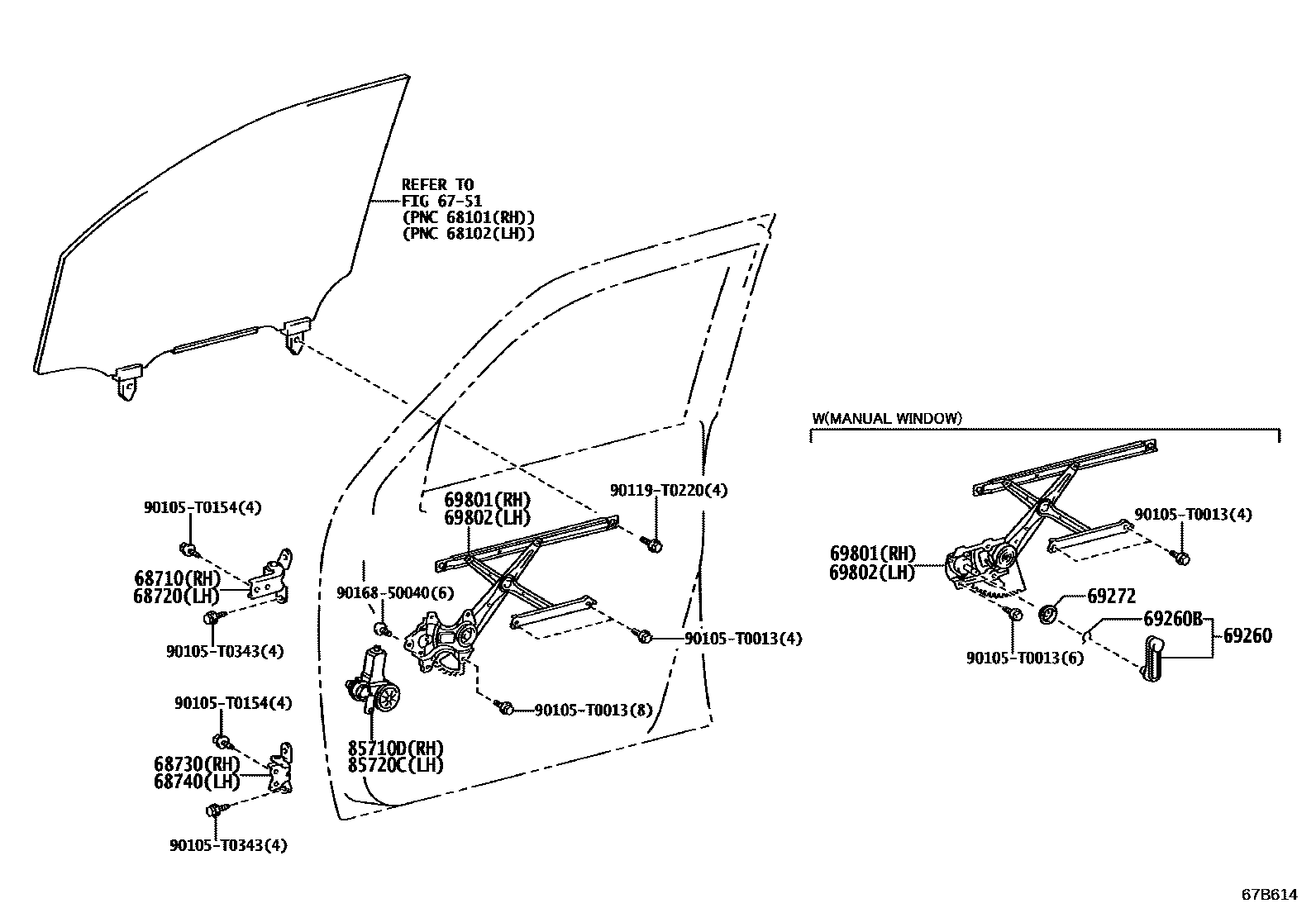

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iGUN12#,135..SAP202109-202301

main68710-0D050iGUN12#,135..THP202108-202207

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iGUN12#,135..SAP202109-202301

main68720-0D050iGUN12#,135..THP202108-202207

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02070iGUN12#,135..SAP202109-202301

main68730-02100iGUN12#,135..THP202108-202207

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02070iGUN12#,135..SAP202109-202301

main68740-02100iGUN12#,135..THP202108-202207

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0K040×2iGUN125..L202212-202301

main69260-0K040-C0×2supersedes 69260-0K040-C0iGUN135..SCB..L202109-202301

BLACK,TRIM2#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52152×2supersedes 90080-52152iGUN135..SCB..L202109-202301

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-02022×2iGUN125,135..(DCB,SCB)..L202109-202301

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K140iGUN12#,135..THP202108-202207

main69801-0K150iGUN135..SCB..S;GUN12#..SAP..(H,S);GUN135..(DCB,XTR)..SAP202109-202301

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69810-0K270iGUN125,135..(DCB,SCB)..L202109-202301

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K140iGUN12#,135..THP202108-202207

main69802-0K150iGUN135..SCB..S;GUN12#..SAP..(H,S);GUN135..(DCB,XTR)..SAP202109-202301

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

main69820-0K290iGUN125,135..(DCB,SCB)..L202109-202301

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K180iGUN12#,135..THP..S202108-202207

main85710-0K190iGUN126..SAP;GUN125..RHD;GUN125..LHD..SAP..H202108-202301

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K180iGUN125..RHD..S202109-202301

WIRELESS DOOR LOCK-WITH

main85720-0K190iGUN12#,135..THP202108-202207

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

9016850040

main90168-50040

17 parts on this diagram · 1 diagram in section
