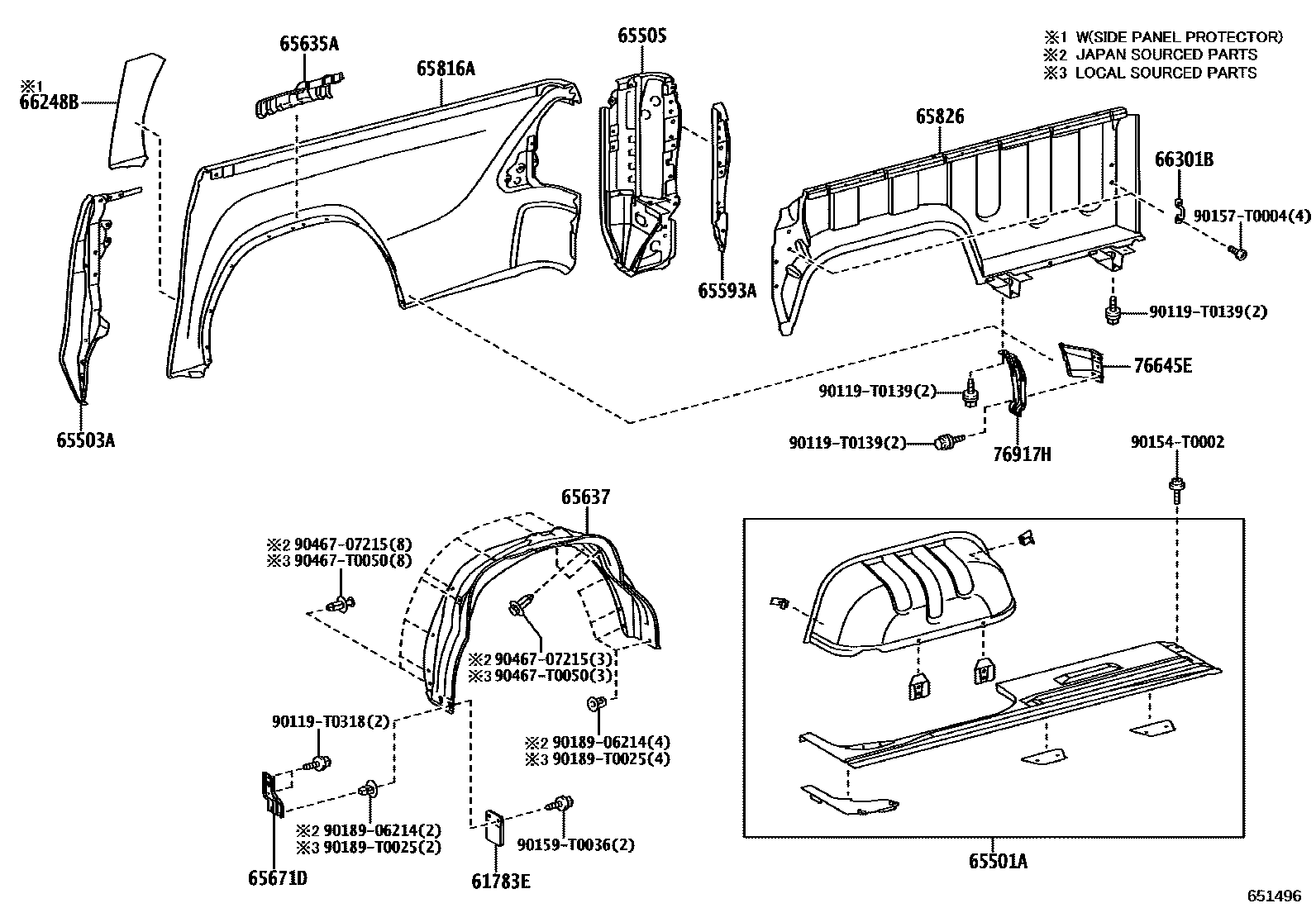

REAR BODY SIDE PANEL
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
EXCEPT PLANT TSAM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
PLANT TSAM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,PLANT TSAM
PLANT TSAM
TIRE & DISC WHEEL-265/65R17 STEEL
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
65635APANEL, WHEEL HOUSE, REAR RH
TIRE & DISC WHEEL-265/65R17 STEEL
65637LINER, REAR WHEEL HOUSE, RH
TIRE & DISC WHEEL-265/65R17 STEEL
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
TIRE & DISC WHEEL-265/65R17 STEEL
65816APANEL, REAR BODY SIDE, RH
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
TIRE & DISC WHEEL-265/65R17 STEEL
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
65826PANEL, REAR BODY SIDE, INNER RH
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
66248BPROTECTOR, REAR BODY SIDE PANEL, RH
STEP & STEP COVER-WITH(BLACK)
STEP & STEP COVER-WITHOUT
TIRE & DISC WHEEL-265/65R17 STEEL
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITH(BLACK)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&STEP & STEP COVER-WITHOUT
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
66301BHOOK SUB-ASSY, ROPE
76645EBRACKET, RR BODY MUDGUARD, RH
TIRE & DISC WHEEL-265/65R17 STEEL
76917HMUDGUARD, SIDE, REAR RH
90119T0139
main90119-T0139
90119T0318
main90119-T0318
90154T0002
main90154-T0002
90157T0004
main90157-T0004
90159T0036
main90159-T0036
9018906214
main90189-06214
90189T0025
main90189-T0025
9046707215
main90467-07215
90467T0050
main90467-T0050
23 parts on this diagram · 6 diagrams in section
