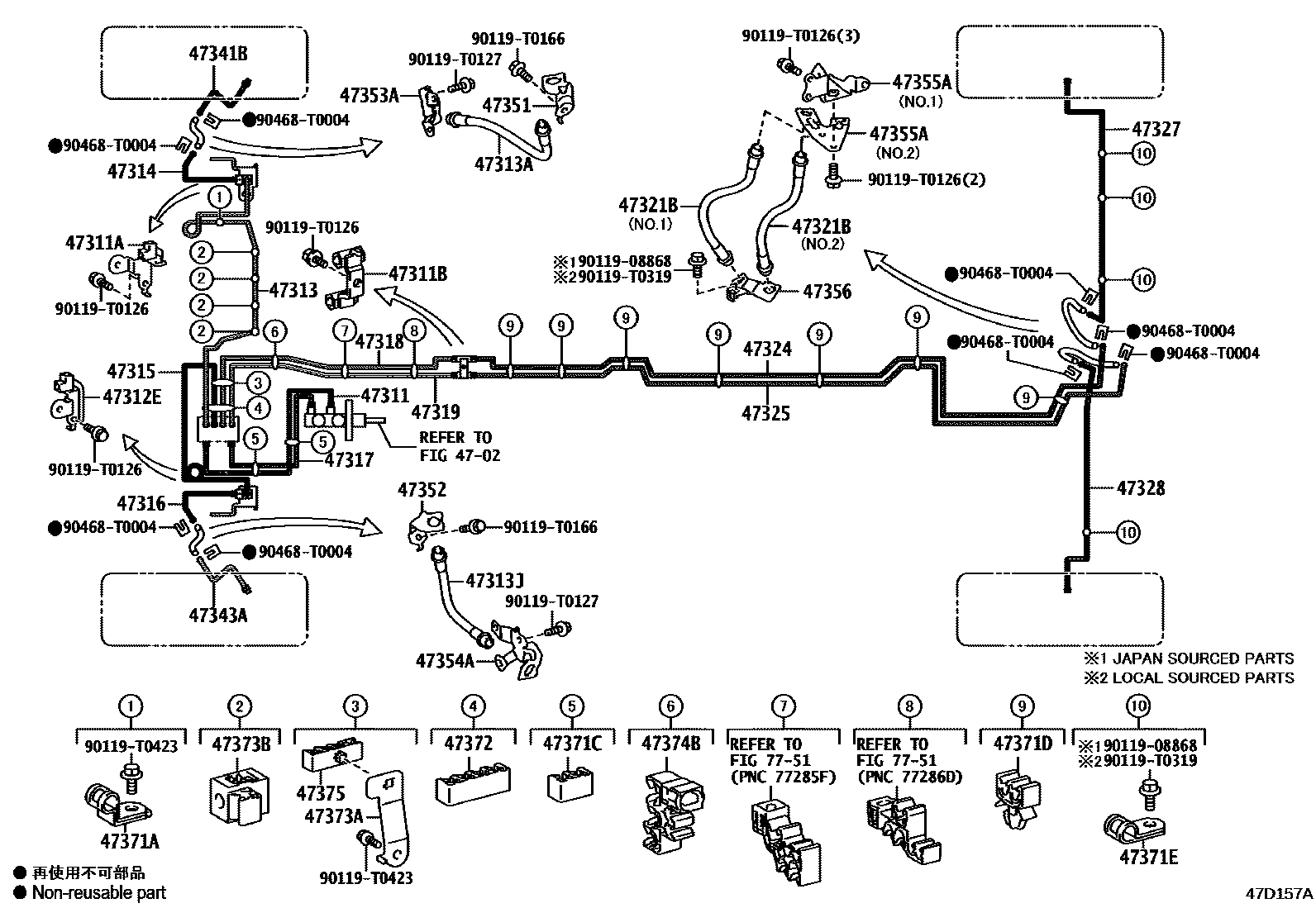

BRAKE TUBE & CLAMP
4702
47311TUBE, FRONT BRAKE, NO.1
47311AWAY(FOR FRONT BRAKE TUBE)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
47319TUBE, FRONT BRAKE, NO.9
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
47324TUBE, REAR BRAKE, NO.4
UKRAINE SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)
RUSSIA&CUSTOM UNION SPEC
47325TUBE, REAR BRAKE, NO.5
UKRAINE SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
RUSSIA&CUSTOM UNION SPEC
47327TUBE, REAR BRAKE, NO.7
47328TUBE, REAR BRAKE, NO.8
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2
47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2
47355ABRACKET, FLEXIBLE HOSE, NO.5
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
47356BRACKET, FLEXIBLE HOSE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
RUSSIA&CUSTOM UNION SPEC
ISRAEL SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
UKRAINE SPEC (EURO 6 REGULATION)
47371ECLAMP, BRAKE TUBE, NO.9
47372CLAMP, BRAKE TUBE, NO.2
47373ABRACKET, TUBE CLAMP
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
7751
9011908868
90119T0126
main90119-T0126
90119T0127
main90119-T0127
90119T0166
90119T0319
main90119-T0319
90119T0423
main90119-T0423
90468T0004
main90468-T0004
44 parts on this diagram · 5 diagrams in section
