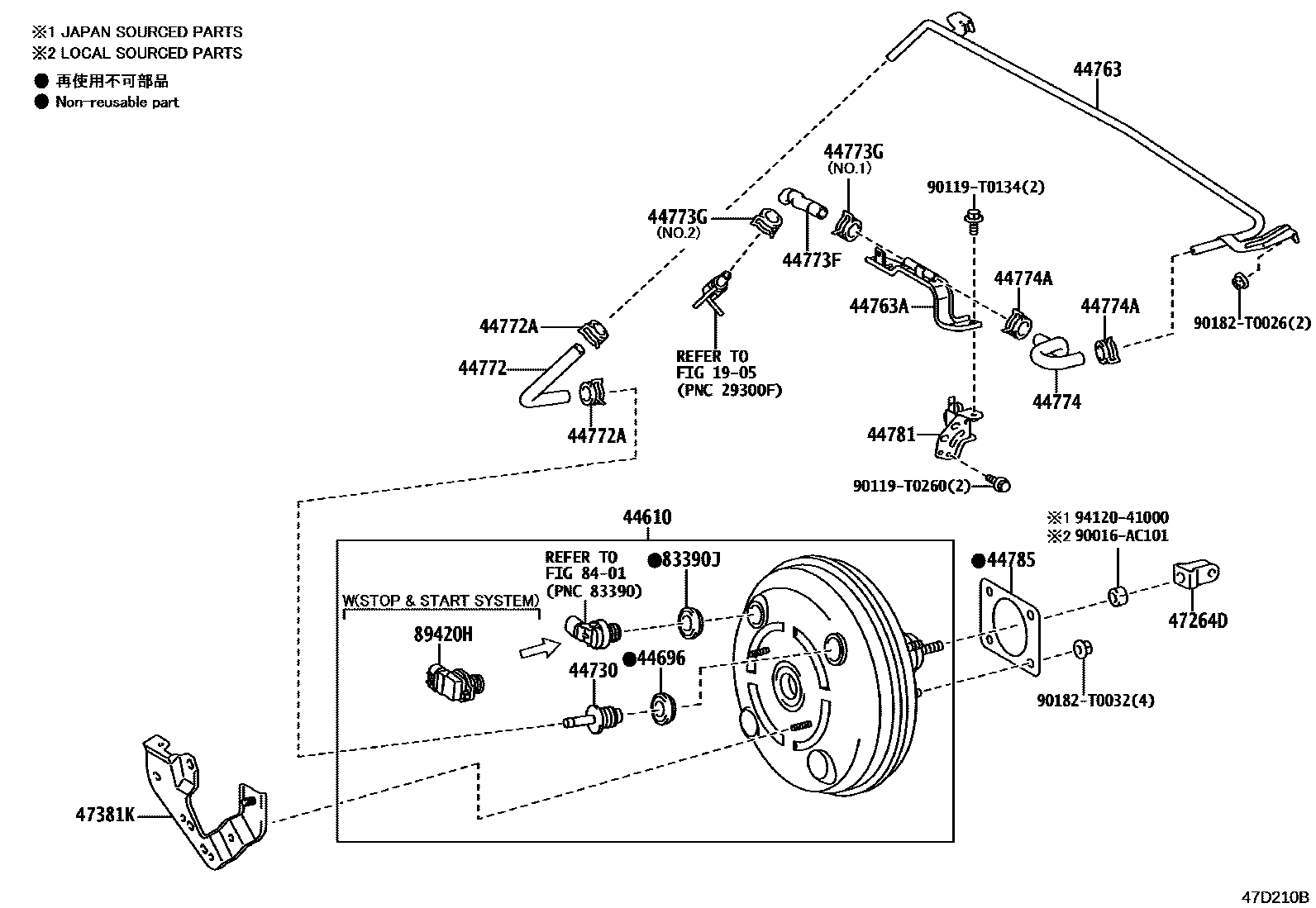

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44763TUBE, BOOSTER VACUUM
44763ATUBE, HOSE TO HOSE, NO.1
TYPE A:REFER ILLUST.
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44773FHOSE, UNION TO CHECK VALVE
44773GCLIP(FOR UNION TO CHECK VALVE HOSE)
NO.1
NO.2
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44781BRACKET, HOSE
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47381KBRACKET, BRAKE BOOSTER TUBE CLAMP
83390JGROMMET, VACUUM WARNING SWITCH
8401
89420HSENSOR ASSY, VACUUM
90016AC101
main90016-AC101
90119T0134
90119T0260
main90119-T0260
90182T0026
90182T0032
9412041000
25 parts on this diagram · 2 diagrams in section
