FRONT AXLE HOUSING & DIFFERENTIAL

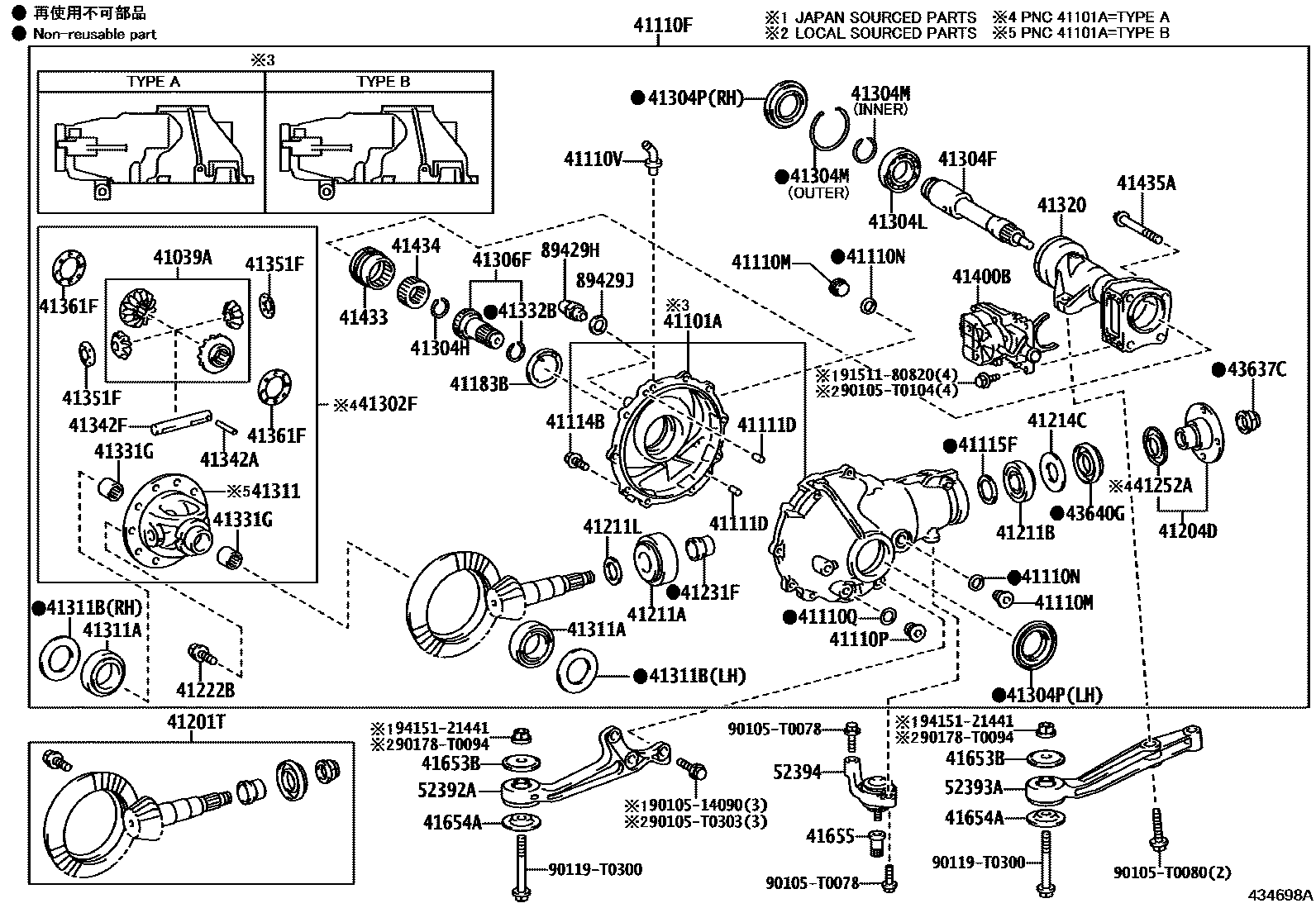

Parts diagram
41039AGEAR KIT, DIFFERENTIAL
main41039-71040i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
main41101-0K060i202108-202301
TYPE B:REFER ILLUST.
main41101-71030i202108-202301
TYPE A:REFER ILLUST.
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
main41110-0KA80i202108-202301
*FGR=43:12=3.583,PNC 41101A=TYPE B
sub41110-0KA81
main41110-0KA90i202108-202301
*FGR=43:11=3.909,PNC 41101A=TYPE B
sub41110-0KA91
main41110-0KB00i202108-202301
*FGR=41:10=4.100,PNC 41101A=TYPE B
sub41110-0KB01
main41110-71470i202108-202301
*FGR=43:12=3.583,PNC 41101A=TYPE A
sub41110-71471
main41110-71480i202108-202301
*FGR=43:11=3.909,PNC 41101A=TYPE A
sub41110-71481
main41110-71490i202108-202301
*FGR=41:10=4.100,PNC 41101A=TYPE A
sub41110-71491
41110MPLUG, FRONT DIFFERENTIAL FILLER
main90341-18032i202108-202301
PNC 41101A=TYPE A,(J),PNC 41101A=T/P B
main90341-T0002i202108-202301
(L),PNC 41101A=T/P B
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
main12157-10010i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41110PPLUG, FRONT DIFFERENTIAL DRAIN
main90341-24014i202108-202301
PNC 41101A=TYPE A
main90341-T0003i202108-202301
PNC 41101A=TYPE B
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
main90430-24017i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41110VUNION (FOR FRONT DIFFERENTIAL)
main90404-08004i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
main90250-10017i202108-202301
PNC 41101A=TYPE A
main90250-T0004i202108-202301
PNC 41101A=TYPE B
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
main90105-10391i202108-202301
PNC 41101A=TYPE A
main90105-T0101i202108-202301
PNC 41101A=TYPE B
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
main41115-0K010i202108-202301
PNC 41101A=TYPE B
main41115-35010i202108-202301
PNC 41101A=TYPE A
41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER
main41183-0K010i202108-202301
PNC 41101A=TYPE B
main41183-35040i202108-202301
PNC 41101A=TYPE A
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
main41201-09C60i202108-202301
*FGR=43:11=3.909,PNC 41101A=TYPE B
main41201-09C70i202108-202301
*FGR=41:10=4.100,PNC 41101A=TYPE B
main41201-09D00i202108-202301
*FGR=43:12=3.583,PNC 41101A=TYPE B
main41201-79465i202108-202301
*FGR=43:11=3.909,PNC 41101=TYPE A
main41201-79475i202108-202301
*FGR=41:10=4.100,PNC 41101=TYPE A
main41201-79505i202108-202301
*FGR=43:12=3.583,PNC 41101=TYPE A
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
main41204-0K120i202108-202301
PNC 41101A=TYPE B
main41204-71030i202108-202301
PNC 41101A=TYPE A
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
main90366-35087i202108-202301
PNC 41101A=TYPE A
main90366-T0016i202108-202301
PNC 41101A=TYPE B
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
main90366-30067i202108-202301
PNC 41101A=TYPE A
main90366-T0013i202108-202301
PNC 41101A=TYPE B
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
main90201-35497i202108-202301
OD=47,T=1.70,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35498i202108-202301
OD=47,T=1.73,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35499i202108-202301
OD=47,T=1.76,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35500i202108-202301
OD=47,T=1.79,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35501i202108-202301
OD=47,T=1.82,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35502i202108-202301
OD=47,T=1.85,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35503i202108-202301
OD=47,T=1.88,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35504i202108-202301
OD=47,T=1.91,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35505i202108-202301
OD=47,T=1.94,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35506i202108-202301
OD=47,T=1.97,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35507i202108-202301
OD=47,T=2.00,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35508i202108-202301
OD=47,T=2.03,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35509i202108-202301
OD=47,T=2.06,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35510i202108-202301
OD=47,T=2.09,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35511i202108-202301
OD=47,T=2.12,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35512i202108-202301
OD=47,T=2.15,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35513i202108-202301
OD=47,T=2.18,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35514i202108-202301
OD=47,T=2.21,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35515i202108-202301
OD=47,T=2.24,MARK 01,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35516i202108-202301
OD=47,T=2.27,MARK 02,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35517i202108-202301
OD=47,T=2.30,MARK 03,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90201-35518i202108-202301
OD=47,T=2.33,MARK 04,PNC41101A=T/PB,OD=47,PNC41101A=T/PA,OD=47
main90564-35109i202108-202301
OD=52,T=1.70,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35110i202108-202301
OD=52,T=1.73,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35111i202108-202301
OD=52,T=1.76,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35112i202108-202301
OD=52,T=1.79,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35113i202108-202301
OD=52,T=1.82,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35114i202108-202301
OD=52,T=1.85,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35115i202108-202301
OD=52,T=1.88,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35116i202108-202301
OD=52,T=1.91,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35117i202108-202301
OD=52,T=1.94,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35118i202108-202301
OD=52,T=1.97,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35119i202108-202301
OD=52,T=2.00,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35120i202108-202301
OD=52,T=2.03,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35121i202108-202301
OD=52,T=2.06,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35123i202108-202301
OD=52,T=2.09,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35124i202108-202301
OD=52,T=2.12,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35125i202108-202301
OD=52,T=2.15,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35126i202108-202301
OD=52,T=2.18,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35127i202108-202301
OD=52,T=2.21,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35128i202108-202301
OD=52,T=2.24,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35129i202108-202301
OD=52,T=2.27,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35130i202108-202301
OD=52,T=2.30,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
main90564-35131i202108-202301
OD=52,T=2.33,PNC41101A=T/PB,OD=52,PNC41101A=T/PA,OD=52
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
main41214-26011i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90105-T0310i202108-202301
(L),PNC 41101A=T/P B
main90901-05002i202108-202301
PNC 41101A=TYPE A,(J),PNC 41101A=T/P B
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
main41231-35040i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
main41252-71030i202108-202301
PNC 41101A=TYPE A
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
main41301-71110i202108-202301
PNC 41101A=TYPE A
main41301-71120i202108-202301
PNC 41101A=TYPE A
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
main41337-35060i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
main90520-31011i202108-202301
PNC 41101A=TYPE A
main90520-T0028i202108-202301
PNC 41101A=TYPE B
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
main90363-T0014i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
main90520-41014i202108-202301
PNC41101A=T/PA,INNER
main90520-75002i202108-202301
PNC41101A=T/PA,OUTER
main90520-T0027i202108-202301
PNC41101A=T/PB,INNER
main90521-T0002i202108-202301
PNC41101A=T/PB,OUTER
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
main90311-47035i202108-202301
LH,PNC 41101A=TYPE A
sub90311-47041
main90311-47038i202108-202301
RH,PNC 41101A=TYPE A
sub90311-47042
main90311-T0101i202108-202301
LH,PNC 41101A=TYPE B
sub90311-T0107
main90311-T0102i202108-202301
RH,PNC 41101A=TYPE B
sub90311-T0108
41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
main41306-0K030i202108-202301
PNC 41101A=TYPE B
main41306-35060i202108-202301
PNC 41101A=TYPE A
41311CASE, FRONT DIFFERENTIAL
main41311-0K060i202108-202301
PNC 41101A=TYPE B
main41311-0K070i202108-202301
PNC 41101A=TYPE B
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
main90366-53004i202108-202301
PNC 41101A=TYPE A
main90366-T0031i202108-202301
PNC 41101A=TYPE B
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
main90564-50124i202108-202301
T=1.60,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50126i202108-202301
T=1.66,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50128i202108-202301
T=1.72,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50130i202108-202301
T=1.78,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50132i202108-202301
T=1.84,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50134i202108-202301
T=1.90,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50136i202108-202301
T=1.96,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50138i202108-202301
T=2.02,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50140i202108-202301
T=2.08,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50142i202108-202301
T=2.14,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50154i202108-202301
T=1.60,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50156i202108-202301
T=1.66,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50158i202108-202301
T=1.72,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50160i202108-202301
T=1.78,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50162i202108-202301
T=1.84,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50164i202108-202301
T=1.90,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50166i202108-202301
T=1.96,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50168i202108-202301
T=2.02,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50170i202108-202301
T=2.08,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50172i202108-202301
T=2.14,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50184i202108-202301
T=1.58,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50185i202108-202301
T=1.62,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50186i202108-202301
T=1.64,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50187i202108-202301
T=1.68,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50188i202108-202301
T=1.70,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50189i202108-202301
T=1.74,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50190i202108-202301
T=1.76,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50191i202108-202301
T=1.80,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50192i202108-202301
T=1.82,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50193i202108-202301
T=1.86,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50194i202108-202301
T=1.88,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50195i202108-202301
T=1.92,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50196i202108-202301
T=1.94,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50197i202108-202301
T=1.98,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50198i202108-202301
T=2.00,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50199i202108-202301
T=2.04,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50200i202108-202301
T=2.06,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50201i202108-202301
T=2.10,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50202i202108-202301
T=2.12,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50203i202108-202301
T=2.16,LH,PNC 41101A=TYPE A,LH,PNC 41101A=TYPE B
main90564-50204i202108-202301
T=1.58,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50205i202108-202301
T=1.62,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50206i202108-202301
T=1.64,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50207i202108-202301
T=1.68,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50208i202108-202301
T=1.70,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50209i202108-202301
T=1.74,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50210i202108-202301
T=1.76,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50211i202108-202301
T=1.80,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50212i202108-202301
T=1.82,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50213i202108-202301
T=1.86,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50214i202108-202301
T=1.88,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50215i202108-202301
T=1.92,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50216i202108-202301
T=1.94,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50217i202108-202301
T=1.98,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50218i202108-202301
T=2.00,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50219i202108-202301
T=2.04,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50220i202108-202301
T=2.06,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50221i202108-202301
T=2.10,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50222i202108-202301
T=2.12,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50223i202108-202301
T=2.16,RH,PNC 41101A=TYPE B,RH,PNC 41101A=TYPE A
main90564-50224i202108-202301
T=1.44,RH,PNC 41101A=TYPE A
main90564-50225i202108-202301
T=1.46,RH,PNC 41101A=TYPE A
main90564-50226i202108-202301
T=1.48,RH,PNC 41101A=TYPE A
main90564-50227i202108-202301
T=1.50,RH,PNC 41101A=TYPE A
main90564-50228i202108-202301
T=1.52,RH,PNC 41101A=TYPE A
main90564-50229i202108-202301
T=1.54,RH,PNC 41101A=TYPE A
main90564-50230i202108-202301
T=1.56,RH,PNC 41101A=TYPE A
main90564-50231i202108-202301
T=2.18,LH,PNC 41101A=TYPE A
main90564-50232i202108-202301
T=2.20,LH,PNC 41101A=TYPE A
main90564-50233i202108-202301
T=2.22,LH,PNC 41101A=TYPE A
main90564-50234i202108-202301
T=2.24,LH,PNC 41101A=TYPE A
main90564-50235i202108-202301
T=2.26,LH,PNC 41101A=TYPE A
main90564-50236i202108-202301
T=2.28,LH,PNC 41101A=TYPE A
main90564-50237i202108-202301
T=2.30,LH,PNC 41101A=TYPE A
41320TUBE ASSY, FRONT DIFFERENTIAL
main41320-0K020i202108-202301
PNC 41101A=TYPE B
main41320-71020i202108-202301
PNC 41101A=TYPE A
41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)
main90364-35010i202108-202301
PNC 41101A=TYPE A
main90364-T0009i202108-202301
PNC 41101A=TYPE B
41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)
main90521-34003i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i202108-202301
PNC 41101A=TYPE A
main90250-T0006i202108-202301
PNC 41101A=TYPE B
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-0K040i202108-202301
PNC 41101A=TYPE B
main41342-53020i202108-202301
PNC 41101A=TYPE A
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-0K010i202108-202301
(L),PNC 41101A=T/P B
main41351-35030i202108-202301
PNC 41101A=TYPE A,(J),PNC 41101A=T/P B
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-0K020i202108-202301
T=1.55,PNC 41101A=TYPE B
main41361-0K030i202108-202301
T=1.60,PNC 41101A=TYPE B
main41361-0K040i202108-202301
T=1.65,PNC 41101A=TYPE B
main41361-0K050i202108-202301
T=1.70,PNC 41101A=TYPE B
main41361-0K060i202108-202301
T=1.75,PNC 41101A=TYPE B
main41361-0K070i202108-202301
T=1.80,PNC 41101A=TYPE B
main41361-0K080i202108-202301
T=1.85,PNC 41101A=TYPE B
main41361-0K090i202108-202301
T=1.90,PNC 41101A=TYPE B
main41361-34010i202108-202301
T=1.50,PNC 41101A=TYPE A
main41361-34020i202108-202301
T=1.55,PNC 41101A=TYPE A
main41361-34030i202108-202301
T=1.60,PNC 41101A=TYPE A
main41361-34040i202108-202301
T=1.65,PNC 41101A=TYPE A
main41361-34050i202108-202301
T=1.70,PNC 41101A=TYPE A
main41361-34060i202108-202301
T=1.75,PNC 41101A=TYPE A
main41361-34070i202108-202301
T=1.80,PNC 41101A=TYPE A
main41361-34080i202108-202301
T=1.85,PNC 41101A=TYPE A
main41361-34090i202108-202301
T=1.90,PNC 41101A=TYPE A
41400BACTUATOR ASSY, DIFFERENTIAL MOTOR
main41400-35034i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41433SLEEVE, DIFFERENTIAL CLUTCH
main41433-35010i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41434HUB, DIFFERENTIAL CLUTCH
main41434-35030i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
main90107-12002i202108-202301
*12-1.25PX78-30,PNC 41101A=TYPE A
main90107-T0001i202108-202301
*12-1.25PX78-30,PNC 41101A=TYPE B
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
main41653-0K010i202108-202301
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
main41654-0K010i202108-202301
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
main41655-0K011i202108-202301
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
main90177-22003i202108-202301
PNC 41101A=TYPE A,PNC 41101A=TYPE B
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
main90311-41015i202108-202301
PNC 41101A=TYPE A
main90311-T0064i202108-202301
PNC 41101A=TYPE B
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
main52380-0K010i202108-202207
main52380-0K070i202109-202301
52393ASUPPORT, FRONT DIFFERENTIAL, NO.2
main52380-0K020i202108-202207
main52380-0K080i202109-202301
52394SUPPORT, FRONT DIFFERENTIAL, NO.3
main52380-0K030i202108-202207
main52380-0K090i202109-202301
89429HSENSOR, TEMPERATURE
main89429-53010i202108-202301
89429JGASKET(FOR TEMPERATURE SENSOR)
main90430-14011i202108-202301
9010514090
main90105-14090
90105T0078
main90105-T0078
90105T0080
main90105-T0080
90105T0104
main90105-T0104
90105T0303
main90105-T0303
90119T0300
main90119-T0300
90178T0094
main90178-T0094
9151180820
main91511-80820
9415121441
main94151-21441

61 parts on this diagram · 2 diagrams in section

FRONT AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
