TRANSFER ASSEMBLY & GASKET KIT

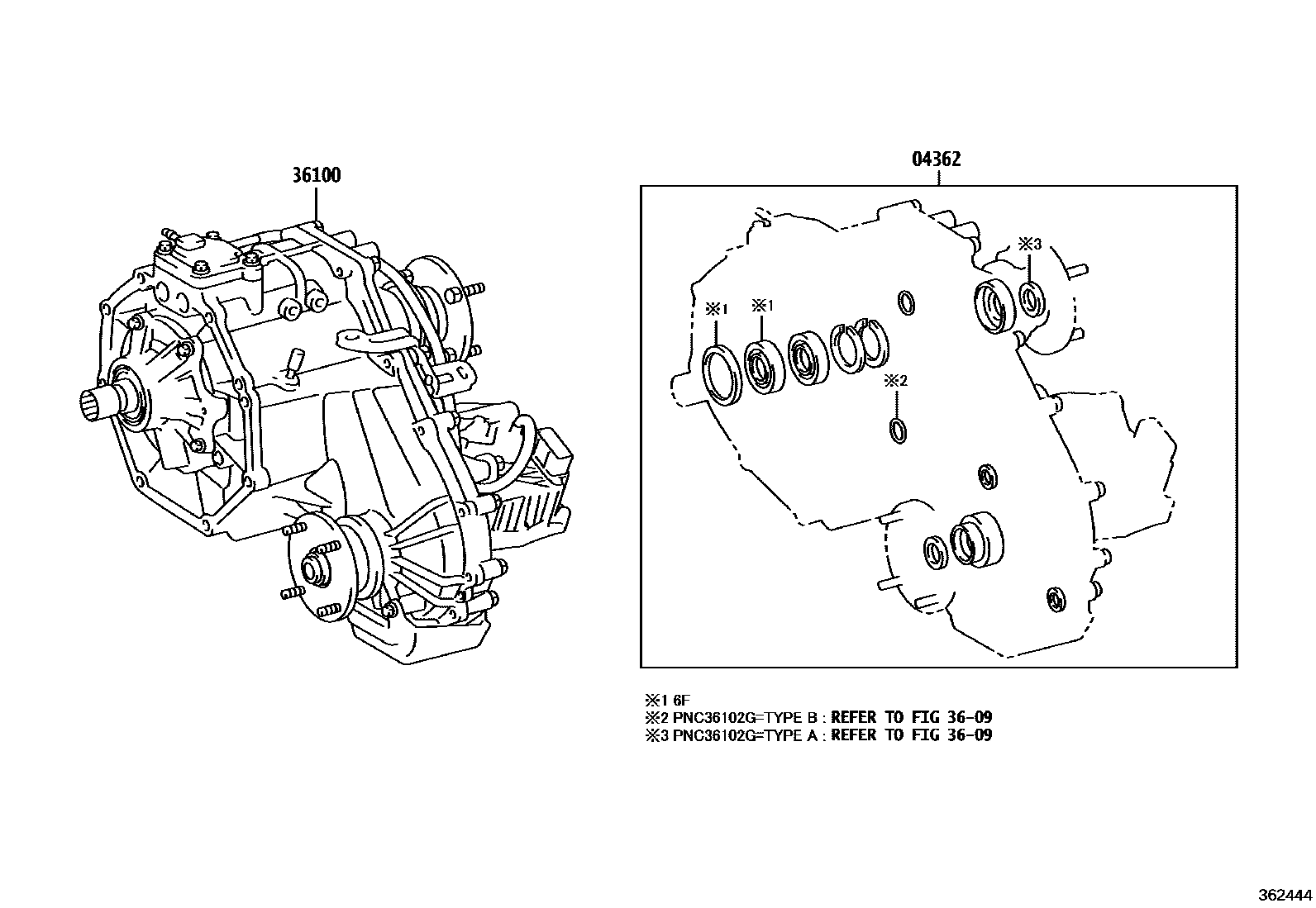

Parts diagram
04362GASKET KIT, TRANSFER OVERHAUL
main04362-0K020i202108-202301
*382
main04362-0K030i202108-202301
*382
main04362-71170i202108-202301
*381
main04362-71180i202108-202301
*381
3609
36100TRANSFER ASSY
main36100-0K420i202108-202301
*382
main36100-0K460i202108-202301
*382
main36100-71420i202108-202301
*381
sub36100-71421
main36100-71460i202108-202301
*381

3 parts on this diagram · 1 diagram in section
