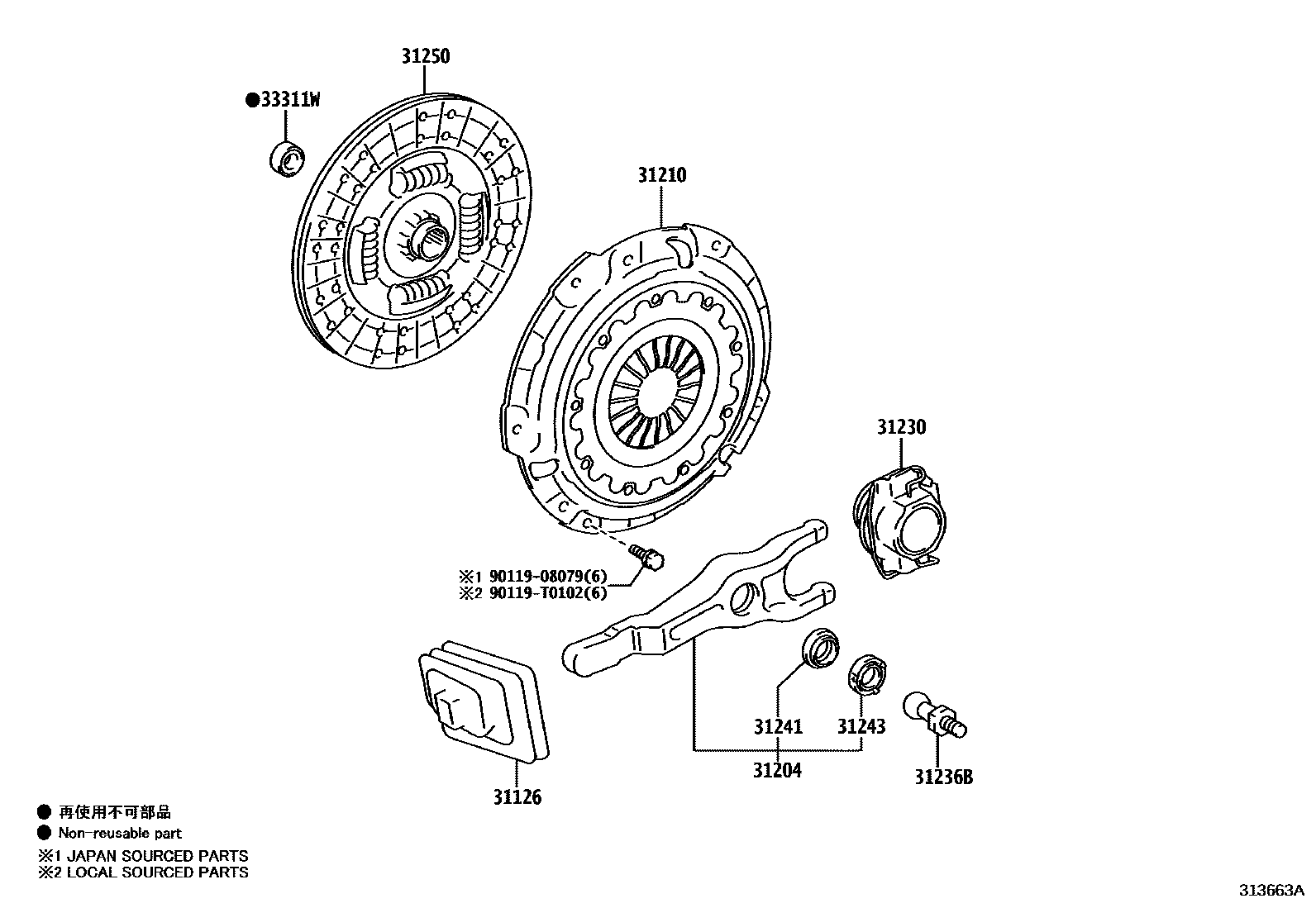

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
31236BSUPPORT, RELEASE FORK
TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
31241SEAL, CLUTCH RELEASE FORK DUST
TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
31243COLLAR, CLUTCH RELEASE FORK
TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
9011908079
main90119-08079
90119T0102
main90119-T0102
11 parts on this diagram · 2 diagrams in section
