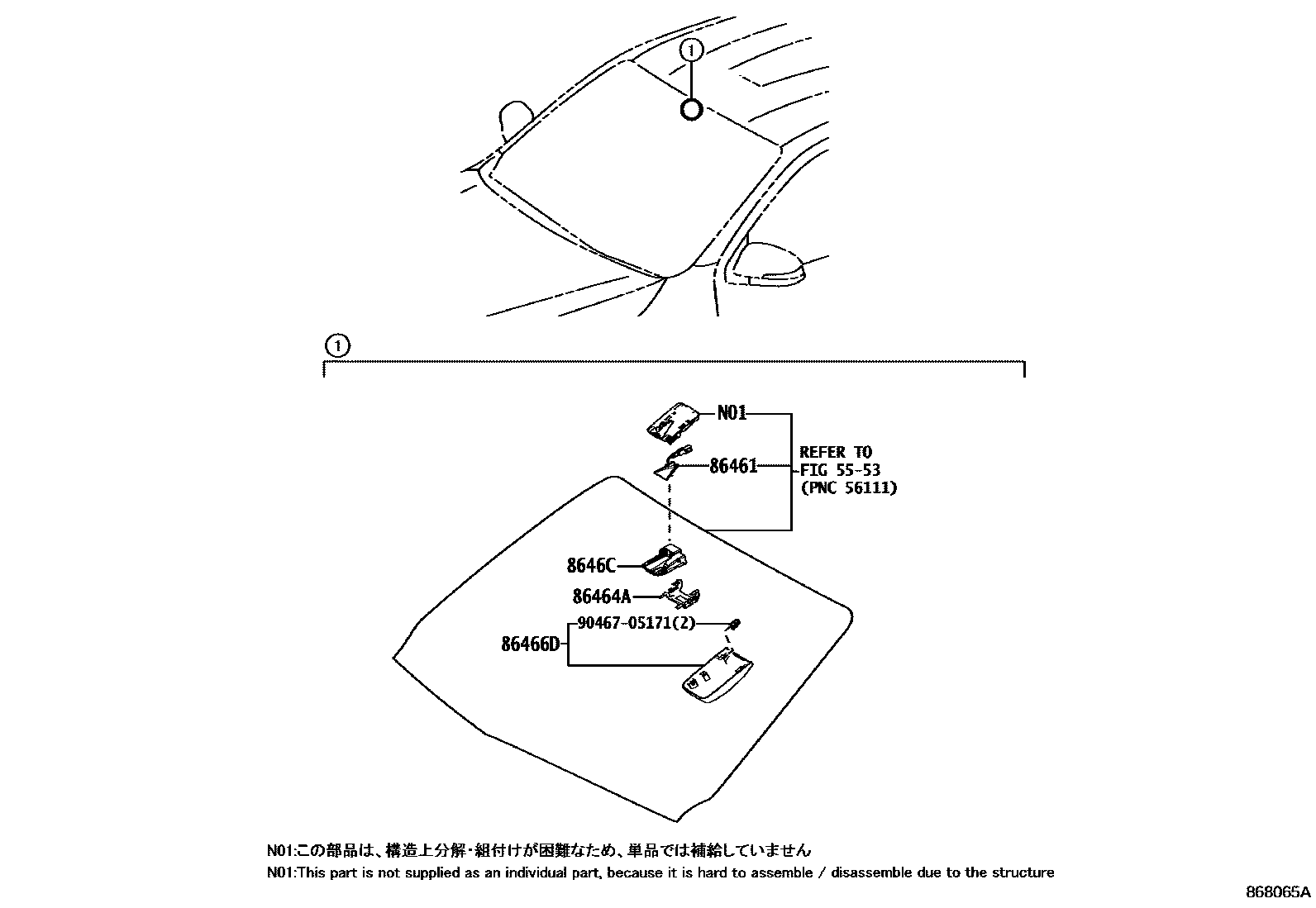

PRE-COLLISION SYSTEM

5553

86461HOOD, FORWARD RECOGNITION

main86401-71010iGUN125,135..THDCB..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202103

ACTIVE SAFETY PACKAGE-WITHOUT

main86401-71010iGUN12#..RHD202009-202103

KM/H MTR COUNTRY FOR RHD SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main86401-71010iGUN126..THDCB;GUN125,135..THDCB..6F202006-202108

ACTIVE SAFETY PACKAGE-WITH

main86401-71010iGUN125,135..THDCB..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202109

86464ALATCH, FORWARD RECOGNITION

main86464-26010iGUN125,135..THDCB..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202103

ACTIVE SAFETY PACKAGE-WITHOUT

main86464-26010iGUN12#..RHD202009-202103

KM/H MTR COUNTRY FOR RHD SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main86464-26010iGUN126..THDCB;GUN125,135..THDCB..6F202006-202108

ACTIVE SAFETY PACKAGE-WITH

main86464-26010iGUN125,135..THDCB..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202109

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-71030iGUN125,135..THDCB..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202103

ACTIVE SAFETY PACKAGE-WITHOUT

main86466-71030iGUN12#..RHD202009-202103

KM/H MTR COUNTRY FOR RHD SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main86466-71030iGUN126..THDCB;GUN125,135..THDCB..6F202006-202108

ACTIVE SAFETY PACKAGE-WITH

main86466-71030iGUN125,135..THDCB..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202109

8646CCAMERA, FORWARD RECOGNITION

main8646C-71011iGUN125,135..THDCB..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202103

ACTIVE SAFETY PACKAGE-WITHOUT

main8646C-71011iGUN12#..RHD202009-202103

KM/H MTR COUNTRY FOR RHD SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main8646C-71011iGUN126..THDCB;GUN125,135..THDCB..6F202006-202108

ACTIVE SAFETY PACKAGE-WITH

main8646C-71011iGUN125,135..THDCB..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202109

main8646C-71031iGUN12#..RHD202009-202109

KM/H MTR COUNTRY FOR RHD SPEC

9046705171

main90467-05171

6 parts on this diagram · 1 diagram in section
