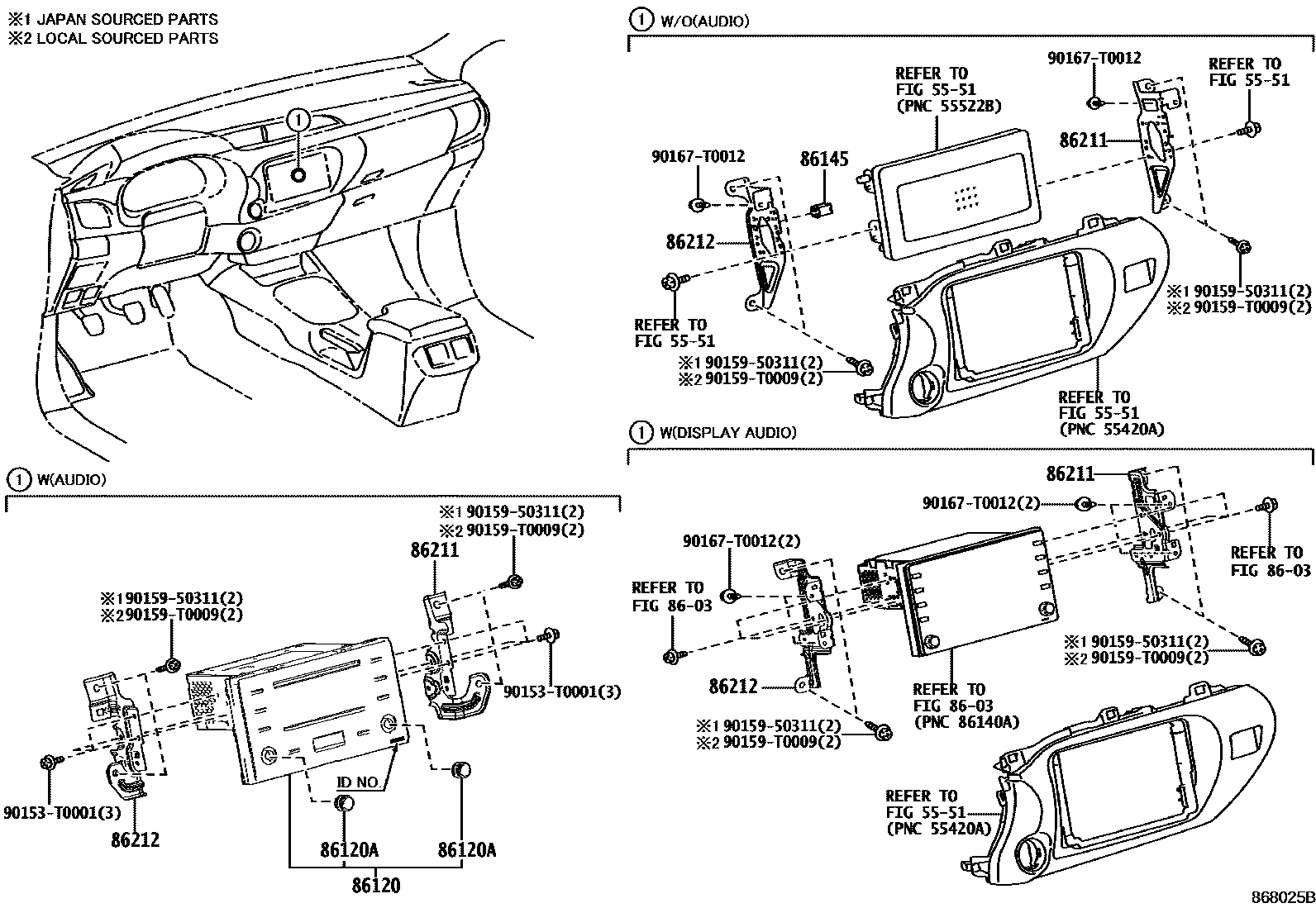

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RADIO RECEIVER 0002 1AMPLIFIER & JACK ADAPTER

5551

8603

86120RECEIVER ASSY, RADIO

main86120-0KE90iGUN125,135..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

DENSO TEN,ID=100892,AUDIO-AM/FM & CD & *BT & RDS

sub86120-0KE91

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23060iGUN125,135..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

AUDIO-AM/FM & CD & *BT & RDS

86145CONNECTOR, ANTENNA MALE

main86145-52010iGUN12#..THDCB..H202006-202108

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86145-52010iGUN135;GUN12#..L,S;GUN12#..(SADCB,SAXTR)..H202006-202109

86211BRACKET, RADIO, NO.1

main86211-KK050iGUN135;GUN12#..L,S;GUN12#..(SADCB,SAXTR)..H202006-202109

main86211-KK050iGUN12#..THDCB..H202006-202108

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86211-KK100iGUN125,135..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

AUDIO-AM/FM & CD & *BT & RDS

main86211-KK130iGUN12#,135..THDCB..S;GUN12#,135..(SADCB,SAXTR)..H202006-202109

AUDIO-*DA(8INCH) & *BT & DAB

main86211-KK130iGUN12#,135..THDCB..S;GUN12#,135..(SADCB,SAXTR)..H202006-202109

AUDIO-AVN(8INCH) & *BT & DAB

main86211-KK130iGUN12#..THDCB..H202006-202108

86212BRACKET, RADIO, NO.2

main86212-KK050iGUN12#..THDCB..H202006-202108

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86212-KK050iGUN135;GUN12#..L,S;GUN12#..(SADCB,SAXTR)..H202006-202109

main86212-KK100iGUN125,135..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

AUDIO-AM/FM & CD & *BT & RDS

main86212-KK130iGUN12#,135..THDCB..S;GUN12#,135..(SADCB,SAXTR)..H202006-202109

AUDIO-*DA(8INCH) & *BT & DAB

main86212-KK130iGUN12#..THDCB..H202006-202108

main86212-KK130iGUN12#,135..THDCB..S;GUN12#,135..(SADCB,SAXTR)..H202006-202109

AUDIO-AVN(8INCH) & *BT & DAB

90153T0001

main90153-T0001

9015950311

main90159-50311

90159T0009

main90159-T0009

90167T0012

main90167-T0012

11 parts on this diagram · 2 diagrams in section
