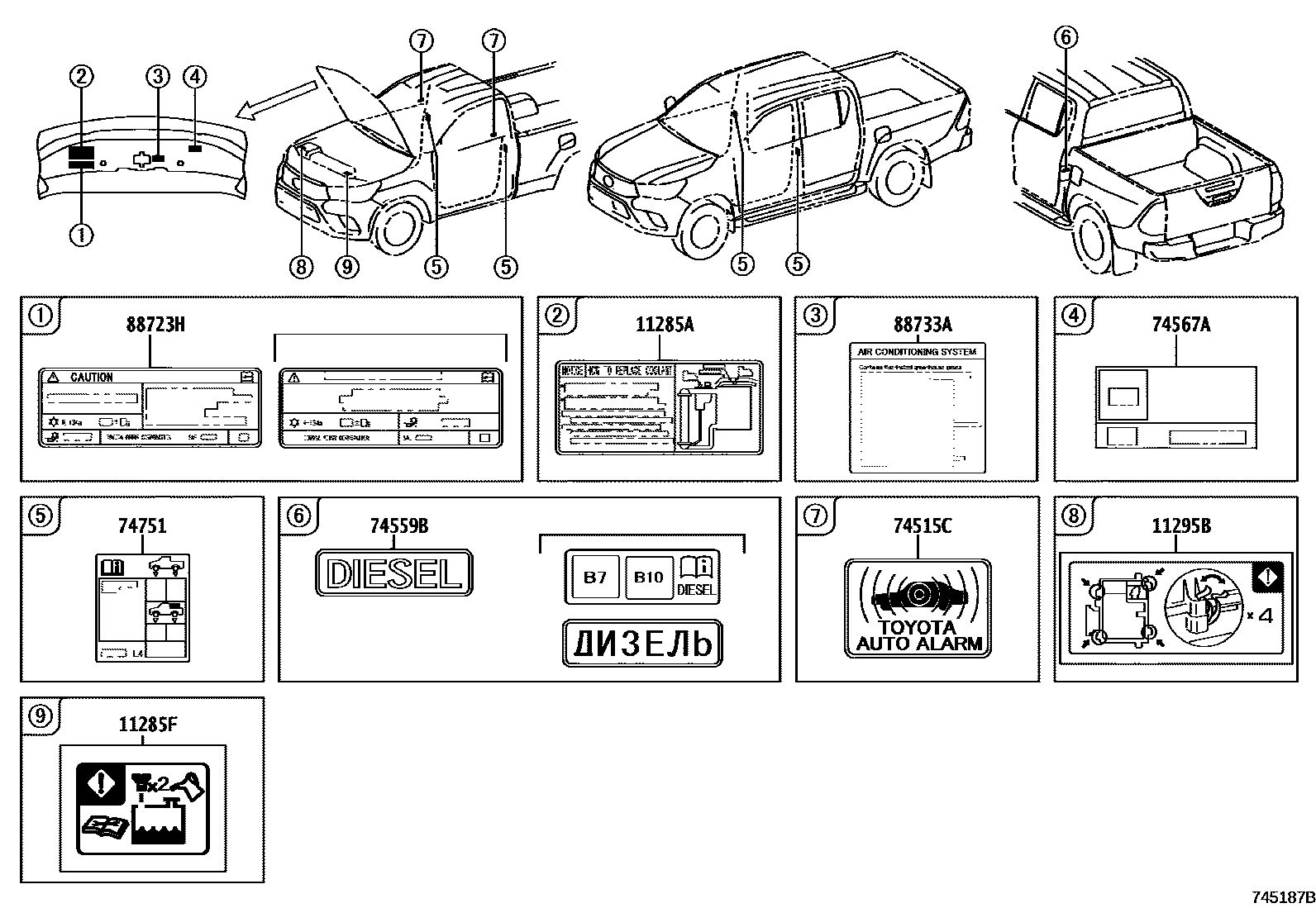

CAUTION PLATE

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0E010i1GDFTV,2GDFTV..GUN12#,135202006-202109

11285FLABEL, COOLANT SYSTEM CAUTION

main11285-0E030i2GDFTV..GUN125,135;1GDFTV..GUN126..SADCB,SAXTR202006-202109

MADE IN THAILAND

main11285-0E040i2GDFTV..GUN125,135;1GDFTV..GUN126..SADCB,SAXTR202006-202109

MADE IN SOUTH AFRICA

main11285-0E050i2GDFTV..GUN125,135;1GDFTV..GUN126..SADCB,SAXTR202006-202109

MADE IN ARGENTINA

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-0E010i1GDFTV,2GDFTV..GUN12#,135..THDCB202101-202109

74515CLABEL, THEFT WARNING INFORMATION

main74515-0K020iGUN135..SASCB..S;GUN126..LHD..SADCB;GUN135..(SADCB,SAXTR,THDCB)..6F;GUN125..LHD..(SADCB,SASCB,SAXTR)..(H,S)202006-202109

74559BLABEL, FUEL INFORMATION

main74559-60020iGUN126..THDCB202006-202108

RUSSIA, CUSTOM UNION SPEC

main74559-71020iGUN125,135;GUN126..SADCB,SAXTR202006-202109

74567APLATE, E.C.E APPROVED NUMBER

main74567-25041iGUN126..6FC202006-202109

main74567-60380iGUN126..6F202009-202109

main74567-71040iGUN125,135202006-202109

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0KN40iGUN125,135..SASCB202009-202109

main42661-0KN70iGUN12#,135..SADCB,SAXTR202009-202109

TIRE & DISC WHEEL-265/65R17, STEEL

main42661-0KS00iGUN12#,135..THDCB202006-202108

88723HLABEL, COOLER SERVICE CAUTION

main88723-0K261iGUN12#,135..THDCB202006-202108

main88723-0K450iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

88733ALABEL, COOLER SERVICE INFORMATION

main88733-0K010iGUN12#,135..THDCB202006-202108

9 parts on this diagram · 2 diagrams in section
