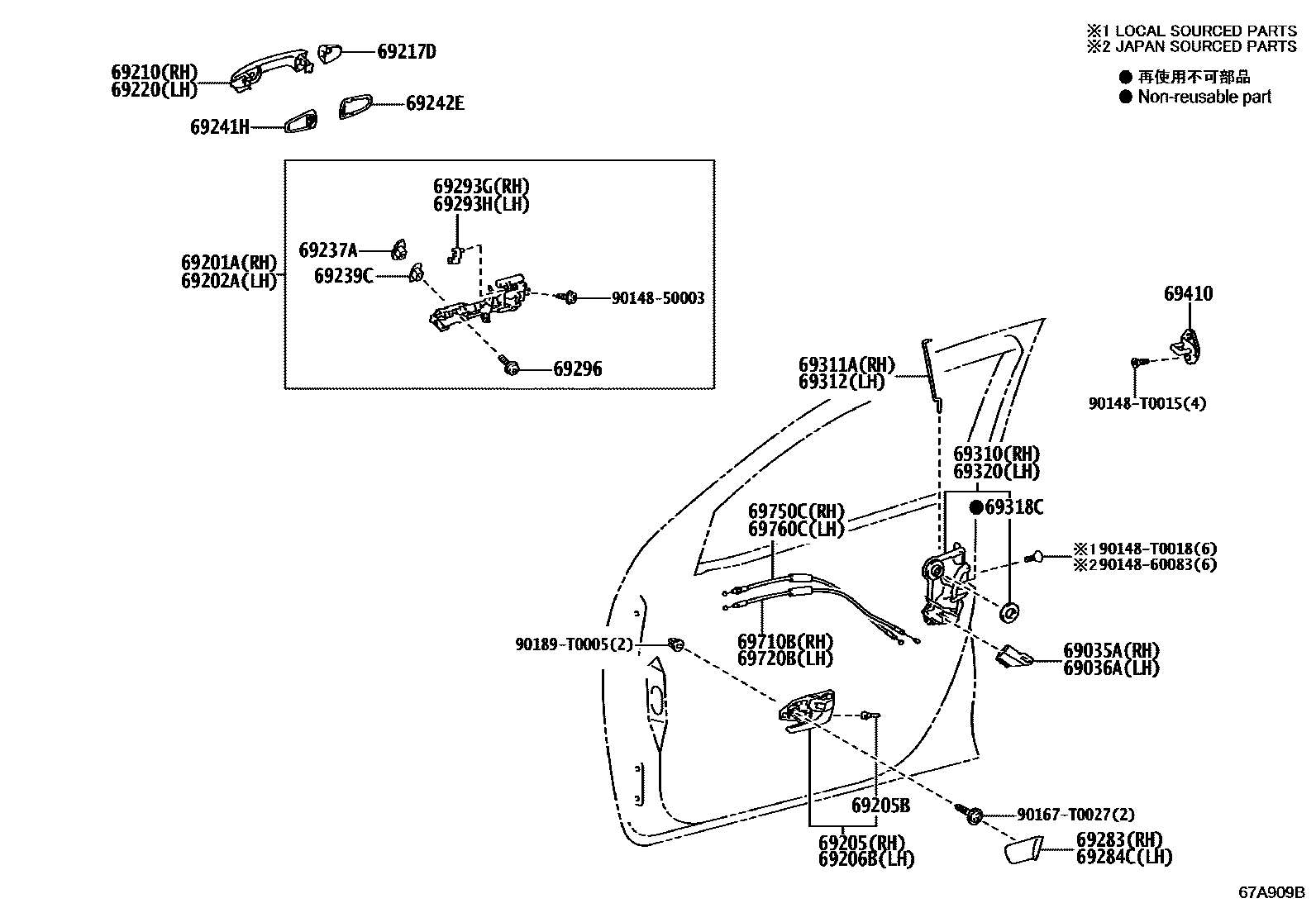

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
NO PAINT REQ.
PLATED
PLATED,WIRELESS DOOR LOCK-WITH
NO PAINT REQ.
PLATED,UKRAINE SPEC (EURO 6 REGULATION)
PLATED
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,PASSENGER SIDE
main69217-0K450iGUN135..SASCB..S;GUN135..(SADCB,SAXTR)..(L,S);GUN125..(SADCB,SASCB,SAXTR)..S202009-202109
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K450iGUN135..SASCB..S;GUN135..(SADCB,SAXTR)..(L,S);GUN125..(SADCB,SASCB,SAXTR)..S202009-202109
BLACK MATERIAL,DRIVER & PASSENGER
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,PASSENGER SIDE
main69217-0K460iGUN135..SASCB..S;GUN135..(SADCB,SAXTR)..(L,S);GUN125..(SADCB,SASCB,SAXTR)..S202009-202109
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH,DRIVER SIDE
*CR,DRIVER SIDE
*CR,RUSSIA, CUSTOM UNION SPEC&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION),DRIVER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
*CR,DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
*CR,DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE
*CR,RUSSIA, CUSTOM UNION SPEC&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION),PASSENGER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION)&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE
*CR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
NO PAINT REQ.
PLATED
PLATED,WIRELESS DOOR LOCK-WITH
NO PAINT REQ.
PLATED,UKRAINE SPEC (EURO 6 REGULATION)
PLATED
69237ANUT, FRONT DOOR HANDLE
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69310LOCK ASSY, FRONT DOOR, RH
WIRELESS DOOR LOCK-WITH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
WIRELESS DOOR LOCK-WITH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
9014860083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
35 parts on this diagram · 1 diagram in section
