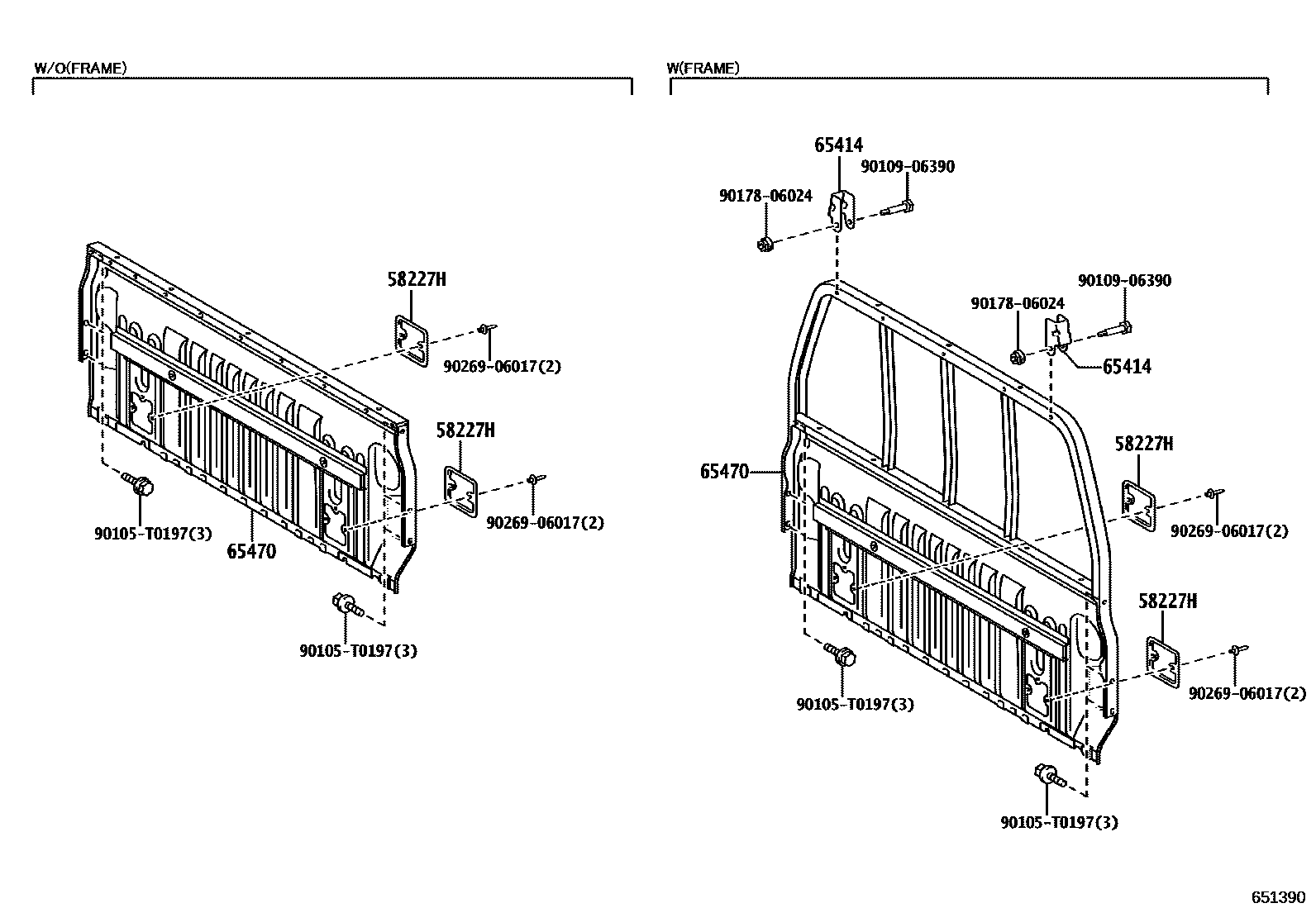

REAR BODY GUARD FRAME & TAIL GATE

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LOCK TYPE) 0003 1TAIL GATE(LATCH TYPE)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K031iGUN12#,135..CBU¥680202006-202109

65414STOPPER, GUARD FRAME

main65414-KK010

65470BOARD ASSY, HEADER

main65470-KK010iGUN12#,135..(SADCB,SAXTR,THDCB)..CBU¥29,300202006-202109

main65470-KK020iGUN125,135..SASCB..CBU202009-202109

90105T0197

main90105-T0197

9010906390

main90109-06390¥120

9017806024

main90178-06024

9026906017

main90269-06017¥140

7 parts on this diagram · 3 diagrams in section
