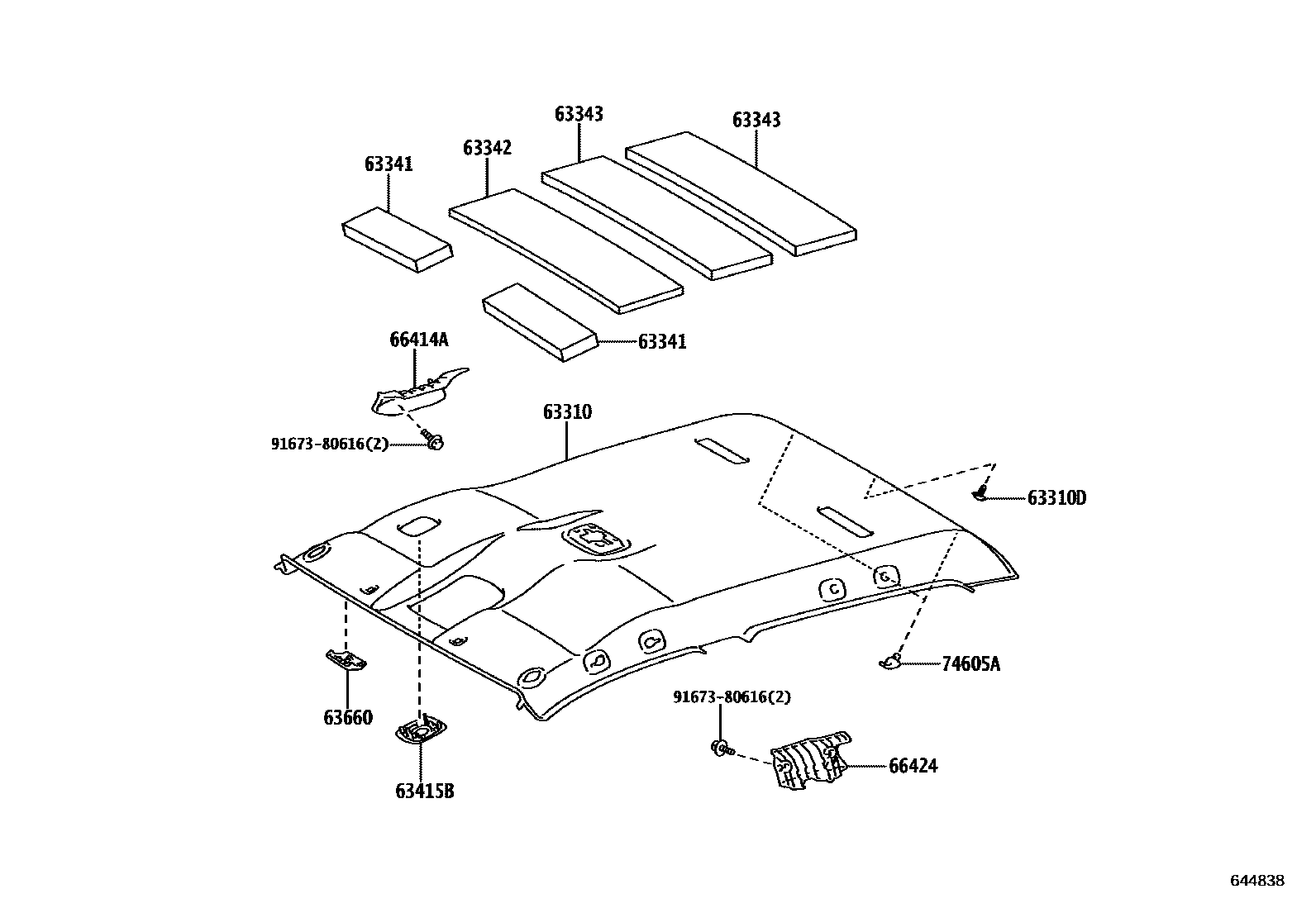

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21
AUDIO-AVN(8INCH) & *BT & DAB,LT. GRAY,TRIM20
AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM20
AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21
AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM20
AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM21
AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM21
63310DCLIP, ROOF HEADLINING
LT.GRAY,TRIM20
BLACK,TRIM21
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63415BGRILLE, ROOF SPEAKER, RH
RUSSIA, CUSTOM UNION SPEC&AUDIO-AVN(8INCH) & *BT & DAB,LT.GRAY,TRIM2#
BLACK,TRIM21
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM2#
BLACK,TRIM21
AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM2#
AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21
66414ASPACER, SIDE RAIL, REAR RH
66424SPACER, SIDE RAIL, REAR LH
74605AHOOK SUB-ASSY, COAT
LT.GRAY,TRIM20
BLACK,TRIM21
LT.GRAY,TRIM20
BLACK,TRIM21
9167380616
main91673-80616
11 parts on this diagram · 3 diagrams in section
