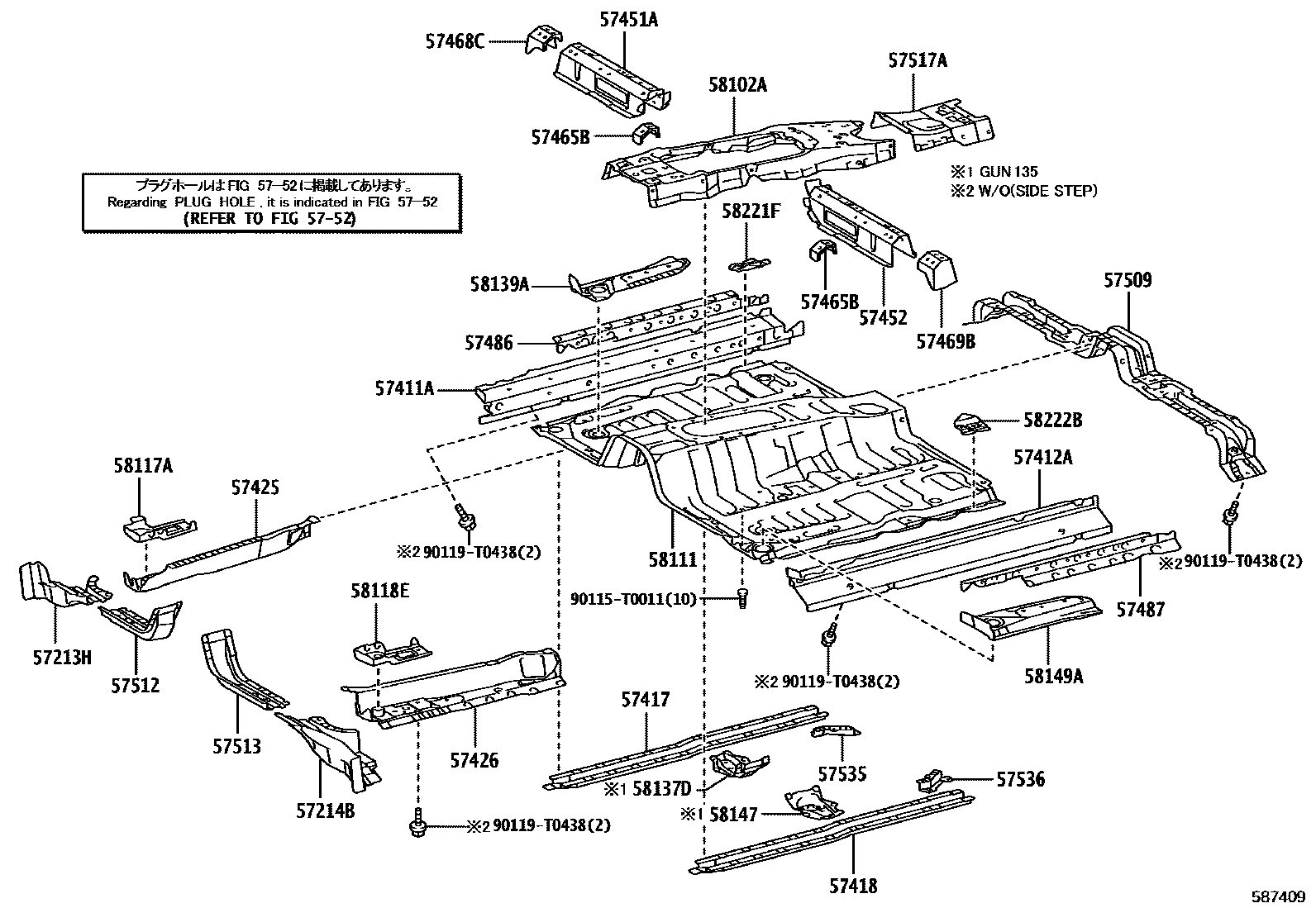

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SHIFT LEVER BOOT 0003 1SIDE STEP 0004 1SIDE STEP 0005 1SIDE STEP

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-KK010iGUN12#,135202006-202109

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-KK010iGUN12#,135202006-202109

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-KK020iGUN135..6FC;GUN12#,135..SADCB,SASCB,SAXTR202006-202109

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-KK020iGUN12#..THDCB;GUN135..THDCB..6F202006-202108

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iGUN12#,135202006-202109

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K011iGUN12#,135202006-202109

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-KK010iGUN12#,135202006-202109

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-KK010iGUN12#,135202006-202109

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-KK010iGUN126..THDCB202006-202108

RUSSIA, CUSTOM UNION SPEC

main57451-KK030iGUN12#..RHD;GUN12#,135..LHD..(SADCB,SASCB,SAXTR)..6F202009-202109

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-KK010supersedes 57452-KK010iGUN125..THDCB..6F202006-202108

RUSSIA, CUSTOM UNION SPEC

main57452-KK020iGUN12#..RHD;GUN12#,135..LHD..(SADCB,SASCB,SAXTR)..6F202009-202109

57465BBRACKET, FRONT SEAT, INNER

main57465-KK010×2iGUN12#,135202006-202109

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-KK010iGUN12#,135202006-202109

sub57468-KK020

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-KK010iGUN12#,135202006-202109

sub57469-KK020

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-KK010iGUN12#,135202006-202109

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-KK010iGUN12#,135202006-202109

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-KK010iGUN135202006-202109

main57509-KK020iGUN12#202006-202109

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K030iGUN12#,135202006-202109

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iGUN12#,135202006-202109

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-KK010iGUN12#..RHD..6F202009-202109

main57517-KK020iGUN12#,135..LHD..6F202006-202109

main57517-KK030iGUN12#..RHD..6FC202009-202109

main57517-KK040iGUN12#,135..LHD..6FC202006-202109

5752

57535BRACE, FRONT FLOOR, RH

main57535-KK010iGUN12#,135202006-202109

57536BRACE, FRONT FLOOR, LH

main57536-KK010iGUN12#,135202006-202109

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-KK010iGUN12#..RHD..6F202009-202109

main58102-KK020iGUN12#,135..LHD..6F202006-202109

main58102-KK030iGUN12#..RHD..6FC202009-202109

main58102-KK040iGUN12#,135..LHD..6FC202006-202109

58111PAN, FRONT FLOOR

main58111-KK050iGUN12#..RHD..6F202009-202109

sub58111-KK140

main58111-KK060iGUN12#,135..LHD..6F202006-202109

sub58111-KK150

main58111-KK070iGUN12#..RHD..6FC202009-202109

sub58111-KK160

main58111-KK080supersedes 58111-KK040iGUN125,135..LHD..6FC;GUN126..LHD..(SADCB,SAXTR)..6FC202006-202109

sub58111-KK170

main58111-KK020iGUN125..THDCB..6F202006-202108

RUSSIA, CUSTOM UNION SPEC

sub58111-KK120

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-KK010supersedes 58117-KK010iGUN125..THDCB..6F202006-202108

RUSSIA, CUSTOM UNION SPEC

main58117-KK020iGUN12#..RHD;GUN12#,135..LHD..(SADCB,SASCB,SAXTR)..6F202009-202109

58118EBRACKET, JACK SET

main58118-KK010supersedes 58118-KK010iGUN125..THDCB..6F202006-202108

RUSSIA, CUSTOM UNION SPEC

main58118-KK020iGUN12#..RHD;GUN12#,135..LHD..(SADCB,SASCB,SAXTR)..6F202009-202109

58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH

main58137-KK010iGUN135202006-202109

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-KK010iGUN12#,135202006-202109

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-KK010iGUN135202006-202109

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-KK010iGUN12#,135202006-202109

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-KK010iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

main58221-KK020iGUN12#,135..THDCB202006-202108

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-KK010iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

main58222-KK020iGUN12#,135..THDCB202006-202108

90115T0011

main90115-T0011

90119T0438

main90119-T0438

34 parts on this diagram · 5 diagrams in section
