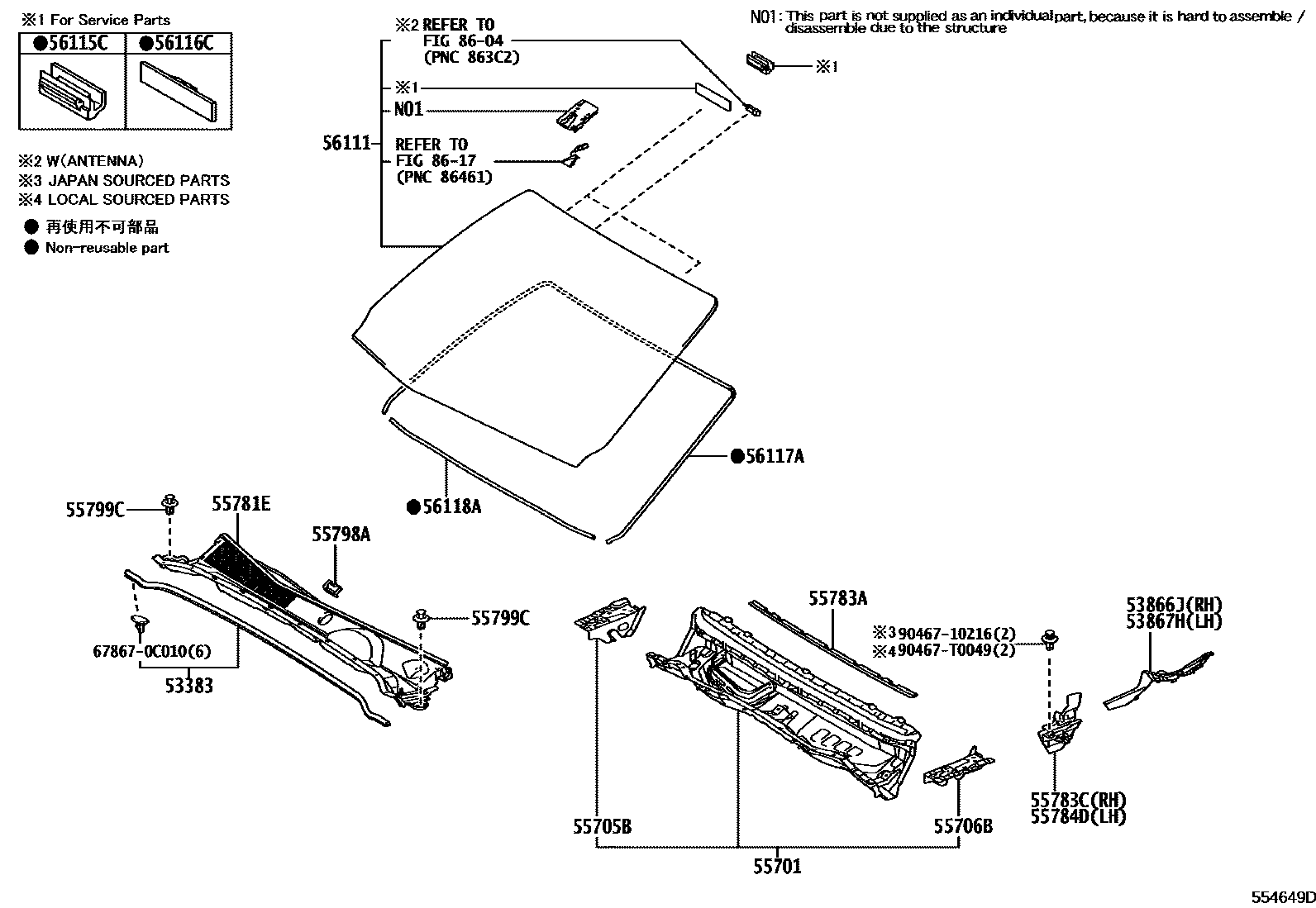

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
WINDSHIELD DEICER-WITH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
WINDSHIELD DEICER-WITH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
WINDSHIELD DEICER-WITH
55701PANEL SUB-ASSY, COWL
WINDSHIELD DEICER-WITHOUT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
WINDSHIELD DEICER-WITHOUT
sub55708-0K211
sub55708-0K351
WINDSHIELD DEICER-WITH
sub55708-0K361
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
56111GLASS, WINDSHIELD
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AVN(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB
WINDSHIELD DEICER-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & *BT & DAB
WINDSHIELD DEICER-WITHOUT
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2620,ACTIVE SAFETY PACKAGE-WITHOUT
L=2620
L=2620,ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=2620,ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & *BT & DAB
L=2620,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=2620,AUDIO-*DA(8INCH) & *BT & DAB
L=2620,AUDIO-AVN(8INCH) & *BT & DAB
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248
L=1248,ACTIVE SAFETY PACKAGE-WITHOUT
L=1248,ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=1248,ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-AVN(8INCH) & *BT & DAB
L=1248,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=1248,AUDIO-*DA(8INCH) & *BT & DAB
L=1248,AUDIO-AVN(8INCH) & *BT & DAB
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 3 diagrams in section
