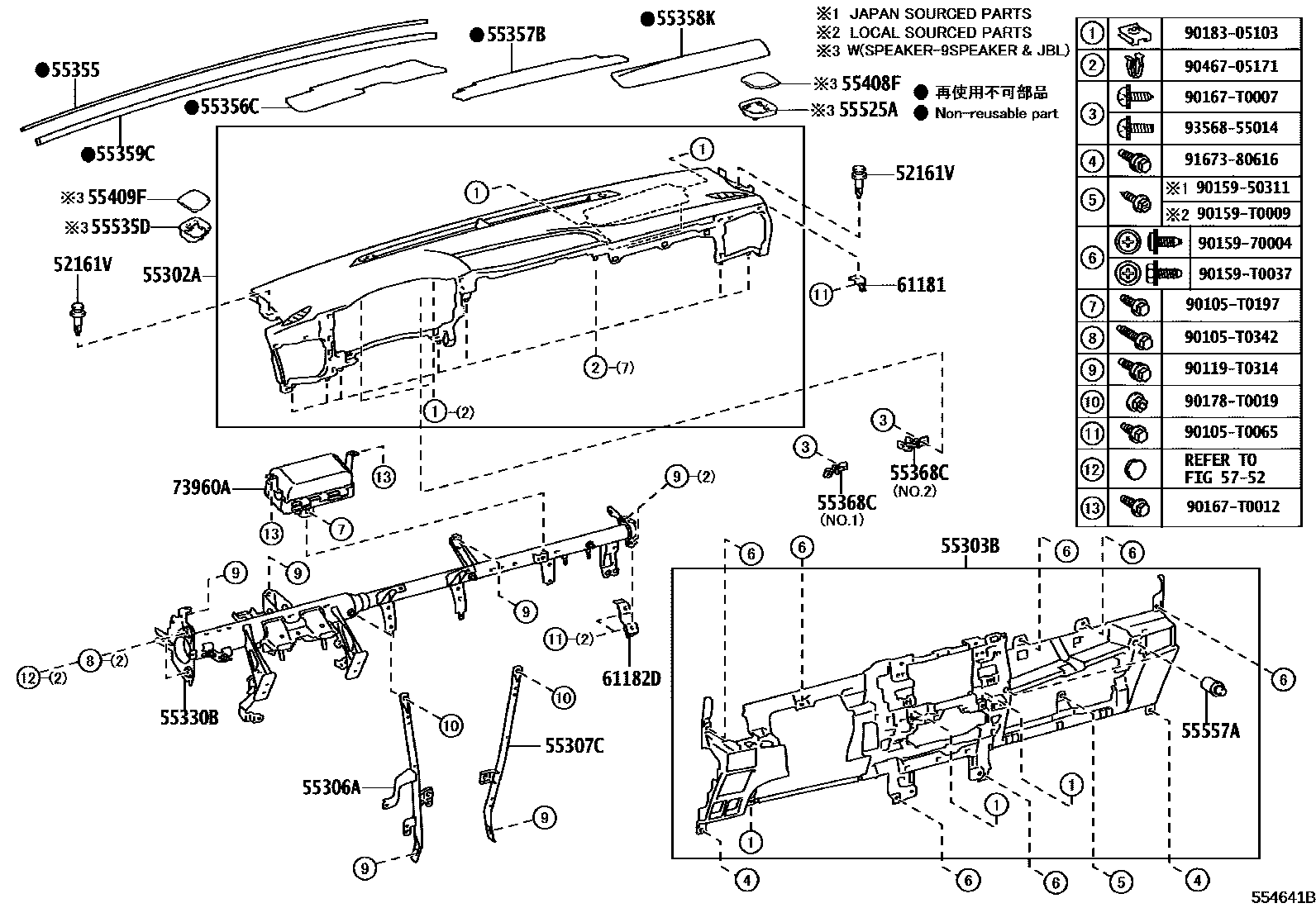

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040×2iGUN12#,135202006-202109

(L)

main52161-16010×2iGUN12#,135202006-202109

(J)

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-KK041-C0iGUN12#..RHD202009-202109

BLACK,TRIM2#

main55302-KK111-C0iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)202009-202109

BLACK,TRIM2#

main55302-KK180-C0iGUN12#,135..THDCB202006-202108

BLACK,TRIM2#

main55302-KK160-C0iGUN12#..RHD..H202009-202109

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

main55302-KK170-C0iGUN12#,135..LHD..SADCB..H202009-202109

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

main55302-KK270-C0iGUN12#..THDCB..H202006-202108

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-KK030-C0iGUN12#..RHD202009-202109

BLACK,TRIM2#

sub55303-KK050

main55303-KK040-C0iGUN12#,135..LHD202006-202109

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-KK030iGUN12#..RHD202009-202109

main55306-KK050iGUN12#,135..LHD202006-202109

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-KK030iGUN12#..RHD202009-202109

main55307-KK040iGUN12#,135..LHD202006-202109

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-KK300iGUN12#..RHD..6F202009-202104

main55330-KK310iGUN125,135..THDCB..6F202006-202108

main55330-KK340iGUN12#..RHD..6FC202009-202104

main55330-KK350iGUN12#,135..THDCB..6FC202006-202108

main55330-KK560iGUN12#..RHD..6F202104-202109

main55330-KK570iGUN12#..RHD..6FC202104-202109

main55330-KK580iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..6F202104-202109

main55330-KK590iGUN12#..LHD..(SADCB,SAXTR)..6FC202104-202109

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-KK020iGUN12#..RHD202009-202109

main55355-KK030iGUN12#,135..LHD202006-202109

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-KK070iGUN12#,135..(SADCB,SAXTR,THDCB)..(H,S)202006-202109

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-KK030iGUN12#,135202006-202109

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-KK070iGUN12#,135..(SADCB,SAXTR,THDCB)..(H,S)202006-202109

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-KK030iGUN12#..RHD..(SADCB,SAXTR)202009-202109

main55359-KK040iGUN12#,135..LHD..(SADCB,SAXTR,THDCB)..(H,S)202006-202109

55368CBRACKET, METER MOUNTING

main55368-KK010iGUN12#,135202006-202109

NO.1:REFER ILLUST.

main55368-KK020iGUN12#..RHD202009-202109

NO.2:REFER ILLUST.

main55368-KK030iGUN12#,135..LHD202006-202109

NO.2:REFER ILLUST.

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-KK030iGUN12#,135..(SADCB,THDCB)..H202006-202109

SPEAKER-9SPEAKER & JBL

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-KK030iGUN12#,135..(SADCB,THDCB)..H202006-202109

SPEAKER-9SPEAKER & JBL

55525ACOVER, INSTRUMENT PANEL SPEAKER PANEL, NO.1

main55525-KK010iGUN12#..RHD..H202009-202109

SPEAKER-9SPEAKER & JBL

main55525-KK020iGUN12#,135..LHD..(SADCB,THDCB)..H202006-202109

SPEAKER-9SPEAKER & JBL

55535DCOVER, INSTRUMENT PANEL SPEAKER PANEL, NO.2

main55535-KK010iGUN12#..RHD..H202009-202109

SPEAKER-9SPEAKER & JBL

main55535-KK020iGUN12#,135..LHD..(SADCB,THDCB)..H202006-202109

SPEAKER-9SPEAKER & JBL

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-0K030×2iGUN12#,135202006-202109

5752

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-KK030iGUN12#,135202006-202109

61182DBRACKET, INSTRUMENT PANEL SIDE

main61125-KK010iGUN12#,135..LHD202006-202109

main61126-KK010iGUN12#..RHD202009-202109

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0K040iGUN12#..RHD202009-202109

main73960-0K050iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)202009-202109

main73960-0K070iGUN12#,135..THDCB202006-202108

90105T0065

main90105-T0065

90105T0197

main90105-T0197

90105T0342

main90105-T0342

90119T0314

main90119-T0314

9015950311

main90159-50311

9015970004

main90159-70004

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

36 parts on this diagram · 8 diagrams in section
