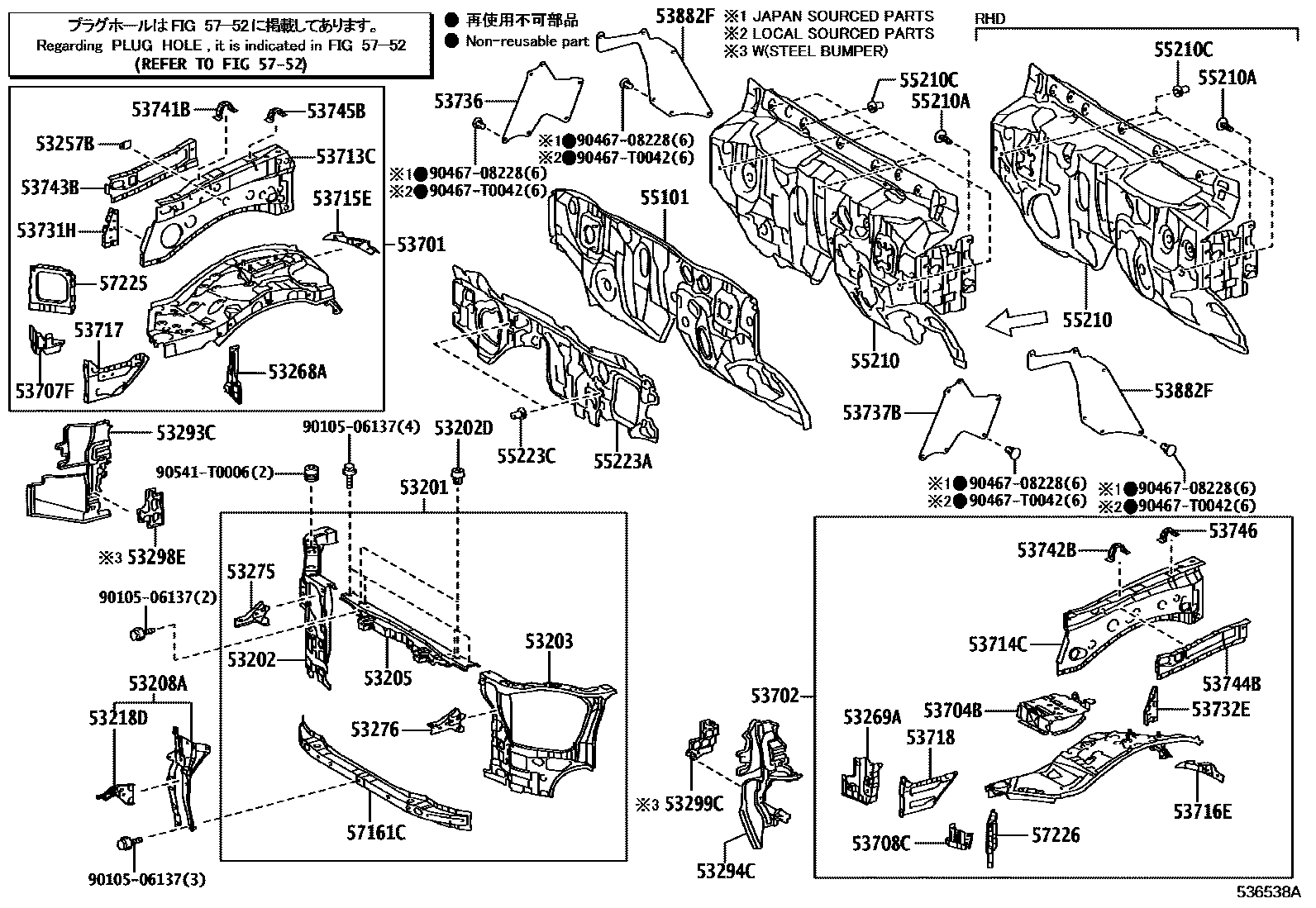

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK050iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

main53201-KK060iGUN12#,135..THDCB202006-202108

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK020iGUN12#,135202006-202109

53202DCUSHION, RADIATOR SUPPORT

main53384-0K040iGUN12#,135202006-202109

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK020iGUN12#,135202006-202109

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK040iGUN12#,135..THDCB202006-202108

main53205-KK050iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-KK020iGUN12#,135202006-202109

53218DEXTENSION, HOOD LOCK BRACE

main53218-KK010iGUN12#,135..THDCB202006-202109

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGUN12#,135202006-202109

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-KK010iGUN12#,135202006-202109

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-KK010iGUN12#,135202006-202109

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK010iGUN12#,135202006-202109

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK010iGUN12#,135202006-202109

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-KK030iGUN125,135..SASCB202009-202109

main53293-KK100iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-KK030iGUN125,135..SASCB202009-202109

main53294-KK100iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

53298ESEAL, RADIATOR SIDE, RH

main53298-KK030iGUN125,135;GUN126..SADCB,SAXTR202006-202109

53299CSEAL, RADIATOR SIDE, LH

main53299-KK030iGUN125,135;GUN126..SADCB,SAXTR202006-202109

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-KK070iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)202009-202109

sub53701-KK370

main53701-KK080iGUN12#..RHD202009-202109

sub53701-KK380

main53701-KK370iGUN12#,135..THDCB202006-202108

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-KK030iGUN12#,135..LHD202006-202109

sub53702-KK310

main53702-KK040iGUN12#..RHD202009-202109

sub53702-KK290

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-KK010iGUN12#,135202006-202109

sub53704-KK020

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-KK010iGUN12#,135202006-202109

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-KK010iGUN12#,135202006-202109

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-KK020iGUN12#,135..THDCB202006-202108

main53713-KK040iGUN12#..RHD202009-202109

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-KK020iGUN12#,135..THDCB202006-202109

main53714-KK030iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iGUN12#,135202006-202109

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iGUN12#,135202006-202109

53717PLATE, FENDER APRON, RH

main53717-KK010iGUN12#,135202006-202109

53718PLATE, FENDER APRON, LH

main53718-KK010iGUN12#,135202006-202109

53731HPATCH, FRONT FENDER APRON, RH

main53731-KK010iGUN12#,135202006-202109

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-KK010iGUN12#,135202006-202109

53736SEAL, FRONT FENDER APRON, RH

main53735-KK020iGUN12#,135202006-202109

TYPE B:REFER ILLUST.

53737BSEAL, FRONT FENDER APRON, LH

main53735-KK020iGUN12#,135202006-202109

TYPE B:REFER ILLUST.

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-KK020iGUN12#,135202006-202109

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-KK020iGUN12#,135202006-202109

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-KK010iGUN12#,135202006-202109

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-KK010iGUN12#,135202006-202109

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-KK020iGUN12#,135202006-202109

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-KK020iGUN12#,135202006-202109

53882FSEAL, FRONT FENDER

main53885-KK020iGUN12#,135202006-202109

TYPE B:REFER ILLUST.

55101PANEL SUB-ASSY, DASH

main55101-KK050iGUN12#,135..LHD..6F202006-202109

sub55101-KK220

main55101-KK080iGUN12#,135..LHD..6FC202006-202109

sub55101-KK240

main55101-KK090iGUN12#..RHD..6F202009-202109

sub55101-KK260

main55101-KK120iGUN12#..RHD..6FC202009-202109

sub55101-KK280

55210INSULATOR ASSY, DASH PANEL

main55210-KK130iGUN12#,135..THDCB202006-202011

sub55210-KK131

main55210-KK131iGUN12#,135..THDCB202011-202108

sub55210-0K360

main55210-KK210iGUN125,135..LHD..SADCB..H;GUN126..LHD..(SADCB,SAXTR);GUN125,135..LHD..SAXTR..(H,S)202009-202011

sub55210-KK211

main55210-KK211iGUN125,135..LHD..SADCB..H;GUN126..LHD..(SADCB,SAXTR);GUN125,135..LHD..SAXTR..(H,S)202012-202109

main55210-KK220iGUN12#..RHD..H;GUN125..RHD..SAXTR202009-202011

sub55210-KK221

main55210-KK221iGUN12#..RHD..H;GUN125..RHD..SAXTR202012-202109

main55210-KK230iGUN135..SAXTR..IV3;GUN125,135..LHD..(SADCB,SASCB)..(L,S)202009-202011

sub55210-KK231

main55210-KK231iGUN135..SAXTR..IV3;GUN125,135..LHD..(SADCB,SASCB)..(L,S)202012-202109

main55210-KK240iGUN125..RHD..(SADCB,SASCB)..S202009-202011

sub55210-KK241

main55210-KK241iGUN125..RHD..(SADCB,SASCB)..S202012-202109

55210ACLIP

main90467-T0004-A0iGUN12#,135202006-202109

IVORY

55210CCLIP

main90467-T0032iGUN12#,135..LHD202006-202109

55223AINSULATOR, DASH PANEL, OUTER

main55223-KK030iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)202009-202109

main55223-KK040iGUN12#..RHD202009-202109

main55223-KK051iGUN12#,135..THDCB202006-202108

55223CCLIP

main90467-T0032iGUN12#,135202006-202109

57161CMEMBER, FRONT CROSS

main57161-KK010iGUN12#,135..THDCB202006-202108

main57161-KK020iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-KK010iGUN12#,135202006-202109

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-KK010iGUN12#,135202006-202109

5752

9010506137

main90105-06137

9046708228

main90467-08228

90467T0042

main90467-T0042

90541T0006

main90541-T0006

52 parts on this diagram · 1 diagram in section
