HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
TURKEY SPEC (EURO 6 REGULATION)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
UKRAINE SPEC (EURO 6 REGULATION)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
TOYOTA STOP & START SYSTEM-WITHOUT
TOYOTA STOP & START SYSTEM-WITHOUT
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
TOYOTA STOP & START SYSTEM-WITHOUT&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM2#
BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
90105T0120
main90105-T0120
9011906939
main90119-06939
90119T0273
main90119-T0273
90469T0003
main90469-T0003
90959T1001
main90959-T1001

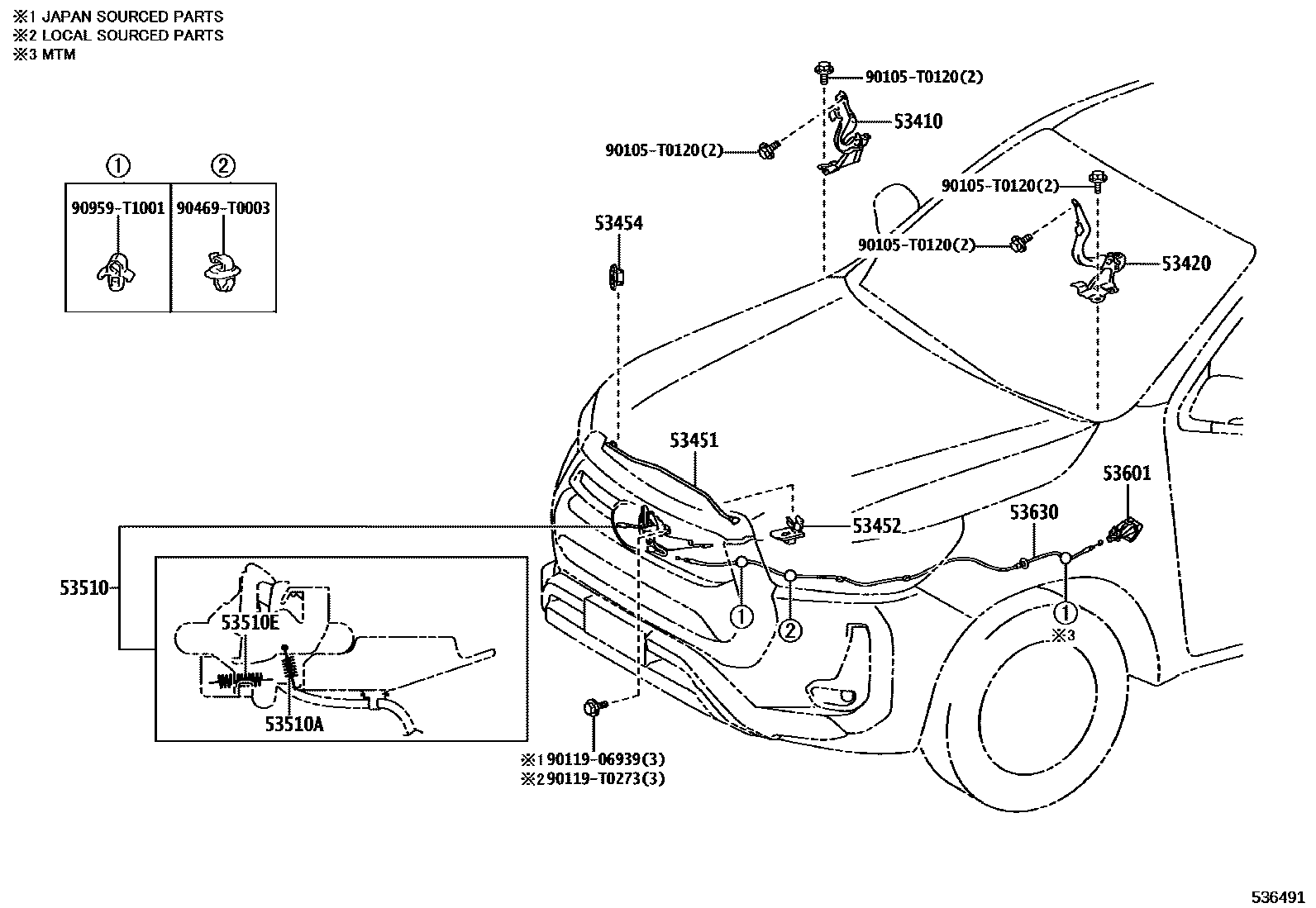

15 parts on this diagram · 2 diagrams in section
