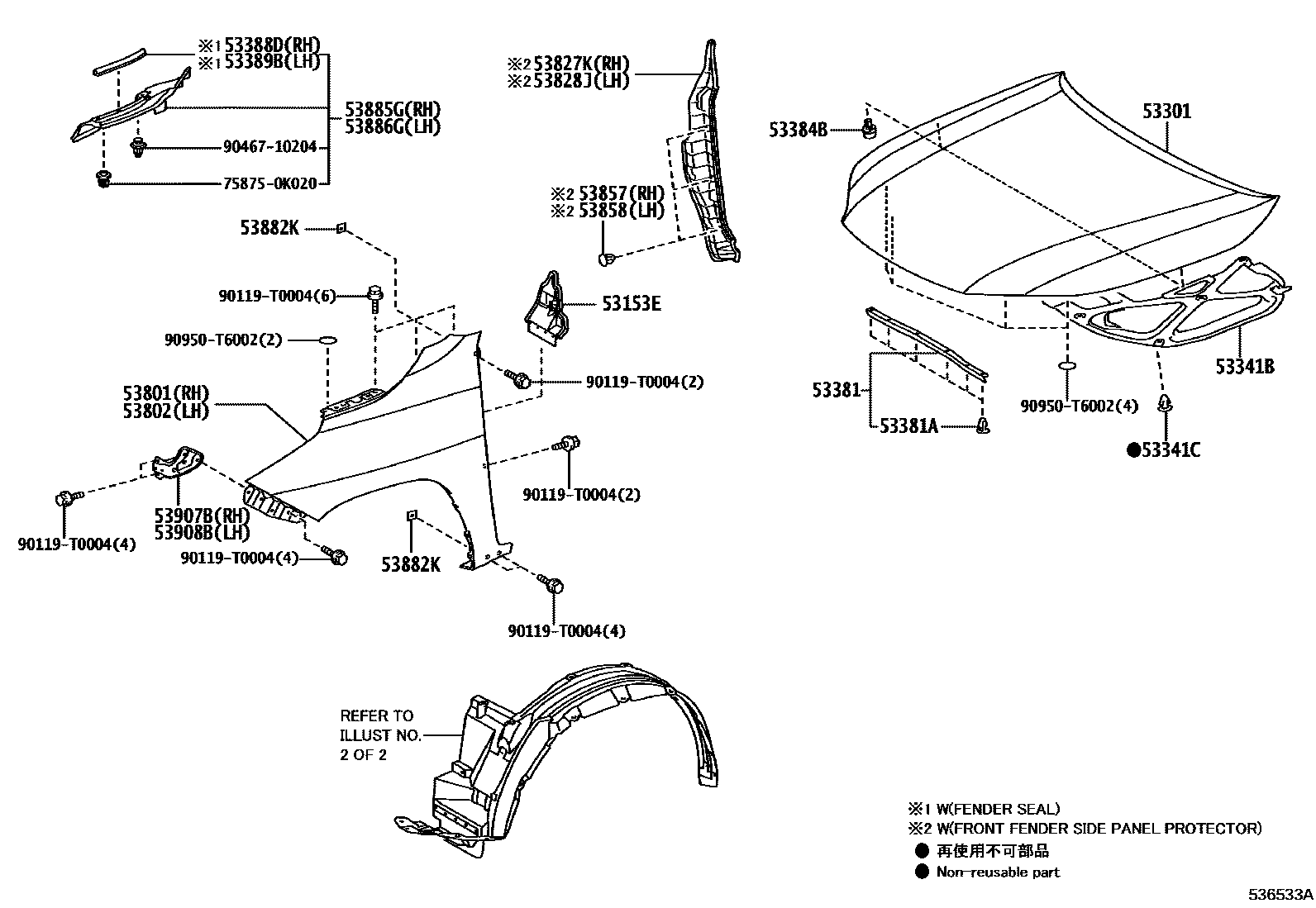

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153EGUIDE, FRONT SIDE AIR

main53153-0K010iGUN12#,135..THDCB202006-202108

main53153-0K020iGUN12#,135..SADCB,SAXTR202009-202109

TIRE & DISC WHEEL-265/65R17, STEEL

main53153-0K100iGUN125,135..SASCB202009-202109

53301HOOD SUB-ASSY

main53301-KK011iGUN125,135..SASCB202009-202109

main53301-KK050iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

53341BINSULATOR, HOOD

main53341-0K250iGUN12#,135..THDCB202006-202108

sub53341-0K251

main53341-0K270iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iGUN12#,135202006-202109

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K080iGUN12#,135..THDCB202006-202108

main53381-0K120iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013iGUN12#,135202006-202109

53384BCUSHION, HOOD, CENTER

main53384-0K040iGUN12#,135202006-202109

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0K010iGUN12#,135..THDCB202006-202108

main53388-0K020iGUN125..SADCB..H;GUN125,135..SAXTR..(H,S);GUN126,135..(SADCB,SAXTR)..H202009-202109

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-0K010iGUN12#,135..THDCB202006-202108

main53388-0K020iGUN125..SADCB..H;GUN125,135..SAXTR..(H,S);GUN126,135..(SADCB,SAXTR)..H202009-202109

53801FENDER SUB-ASSY, FRONT RH

main53811-KK010iGUN135..SASCB..L202009-202109

main53811-KK020iGUN125,135..SASCB..S202009-202109

main53811-KK030iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

53802FENDER SUB-ASSY, FRONT LH

main53812-KK010iGUN135..SASCB..L202009-202109

main53812-KK020iGUN125,135..SASCB..S202009-202109

main53812-KK030iGUN12#,135..SADCB,SAXTR202009-202109

TIRE & DISC WHEEL-265/65R17, STEEL

sub53812-KK050

main53812-KK050iGUN12#,135..THDCB202006-202108

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0K010iGUN12#,135..THDCB202006-202108

main53827-0K020iGUN125..SADCB..H;GUN125,135..SAXTR..(H,S);GUN126,135..(SADCB,SAXTR)..H202009-202109

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0K010iGUN12#,135..THDCB202006-202108

main53828-0K020iGUN125..SADCB..H;GUN125,135..SAXTR..(H,S);GUN126,135..(SADCB,SAXTR)..H202009-202109

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06030iGUN12#,135..THDCB202006-202108

(L)

main53857-0K010iGUN125..SADCB..H;GUN125,135..SAXTR..(H,S);GUN126,135..(SADCB,SAXTR)..H202009-202109

main53857-47011iGUN12#,135..THDCB202006-202108

(J)

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06030iGUN12#,135..THDCB202006-202108

(L)

main53857-0K010iGUN125..SADCB..H;GUN125,135..SAXTR..(H,S);GUN126,135..(SADCB,SAXTR)..H202009-202109

main53857-47011iGUN12#,135..THDCB202006-202108

(J)

53882KSEAL, FRONT FENDER

main53882-33060iGUN12#,135202006-202109

53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-0K100iGUN12#,135..THDCB202006-202108

main53807-0K120iGUN135..SAXTR..IV3;GUN125,135..(SADCB,SASCB)..(L,S)202009-202109

main53807-0K130iGUN125..SADCB..H;GUN125,135..SAXTR..(H,S);GUN126,135..(SADCB,SAXTR)..H202009-202109

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-0K100iGUN12#,135..THDCB202006-202108

main53808-0K120iGUN135..SAXTR..IV3;GUN125,135..(SADCB,SASCB)..(L,S)202009-202109

main53808-0K130iGUN125..SADCB..H;GUN125,135..SAXTR..(H,S);GUN126,135..(SADCB,SAXTR)..H202009-202109

53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH

main53907-KK010iGUN125,135..SASCB202009-202109

main53907-KK020iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH

main53908-KK010iGUN125,135..SASCB202009-202109

main53908-KK020iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

758750K020MOULDING, BACK DOOR OUTSIDE, UPPER

main75875-0K020

90119T0004

main90119-T0004

9046710204

main90467-10204

90950T6002

main90950-T6002

24 parts on this diagram · 2 diagrams in section
