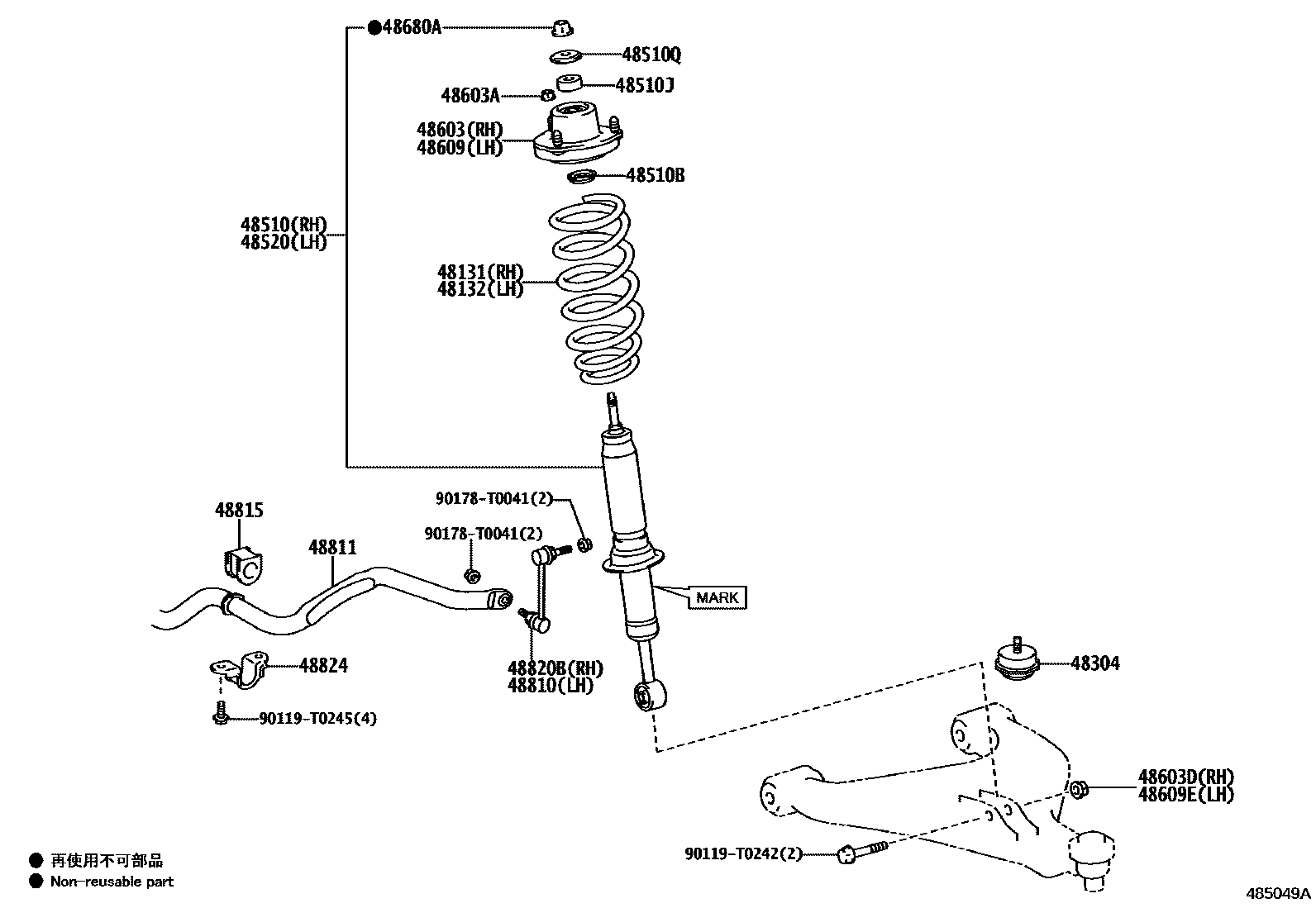

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
main48131-0KM80iGUN126..SAXTR;GUN135..SADCB;GUN125..LHD..SASCB;GUN125..RHD..(SADCB,SAXTR)202009-202109
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0KD40
MARK 48510-0KD40,1 TON PAY LOAD PACKAGE
MARK 48510-0K800
MARK 48510-0K760
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
MADE IN THAILAND
MADE IN INDIA
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-0KD40
MARK 48510-0KD40,1 TON PAY LOAD PACKAGE
MARK 48510-0K800
MARK 48510-0K760
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
MADE IN THAILAND
MADE IN INDIA
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
MADE IN THAILAND
MADE IN INDIA
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824BRACKET, STABILIZER, FRONT
90119T0242
main90119-T0242
90119T0245
main90119-T0245
90178T0041
main90178-T0041
22 parts on this diagram · 1 diagram in section
