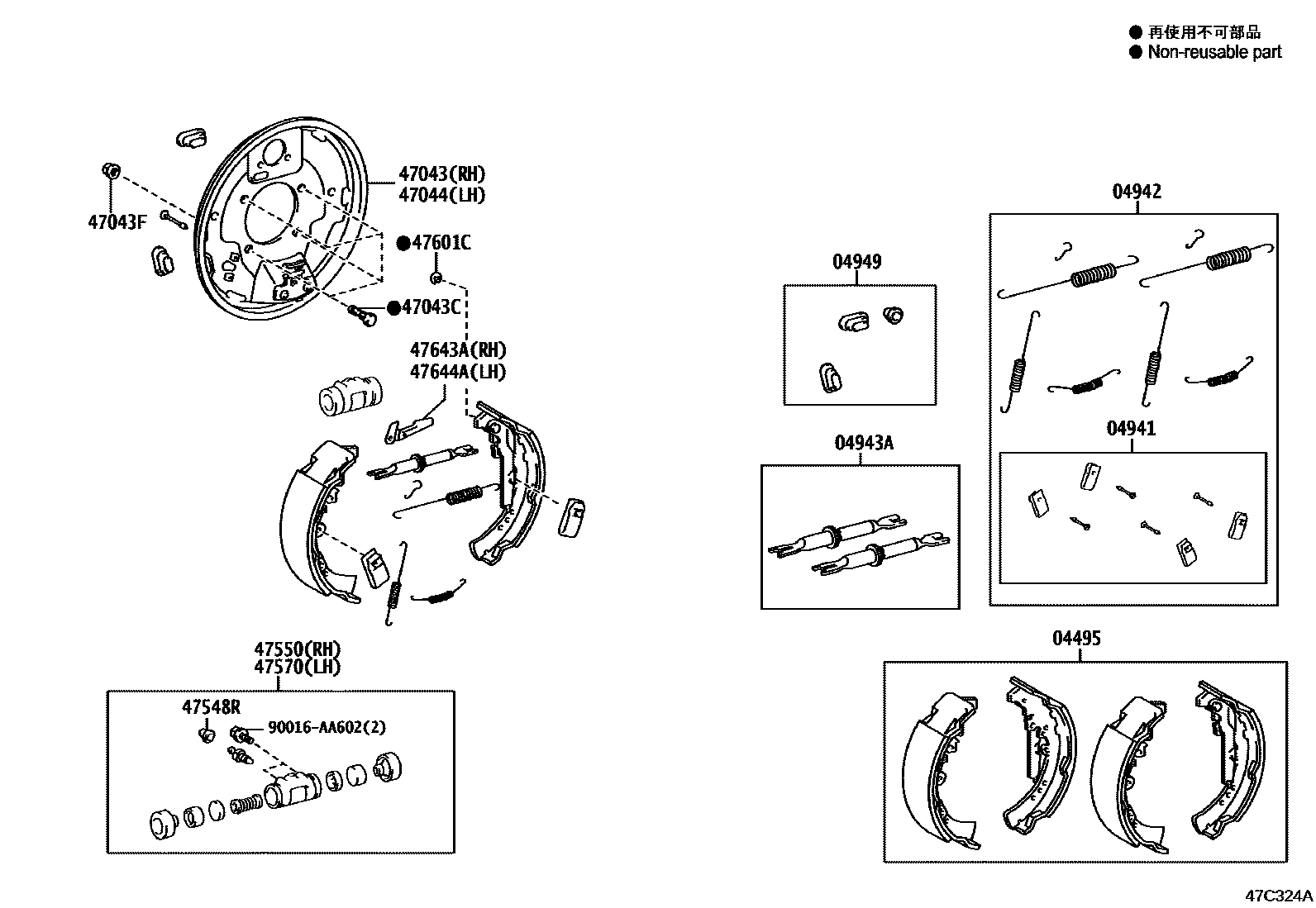

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04495SHOE KIT, REAR BRAKE

main04495-0K120iGUN12#,135..THDCB¥7,800202006-202108

MARK NSA LN508

main04495-0K160iGUN12#,135..SADCB,SASCB,SAXTR¥9,300202009-202109

MARK NBK LN508

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0K030iGUN12#,135..THDCB¥1,080202006-202108

main04941-0K100iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

04942SPRING KIT, REAR BRAKE

main04942-0K130iGUN12#,135..THDCB¥1,650202006-202108

main04942-0K210iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

04943ASTRUT KIT, REAR BRAKE

main04943-0K030iGUN12#,135..THDCB¥2,750202006-202108

main04943-0K110iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

04949PLUG KIT, REAR BRAKE

main04949-0K130iGUN12#,135..THDCB¥520202006-202108

main04949-0K150iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K120iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

main47043-0K130iGUN12#,135..THDCB¥4,290202006-202108

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-T0011iGUN12#,135¥160202006-202109

*10-1.25PX54.5-30

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-T0077iGUN12#,135202006-202109

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K120iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

main47044-0K130iGUN12#,135..THDCB¥4,290202006-202108

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0K030iGUN12#,135..THDCB¥170202006-202108

main31478-30010iGUN12#,135..SADCB,SASCB,SAXTR¥160202009-202109

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09070iGUN12#,135..THDCB¥3,560202006-202108

main47550-71030iGUN12#,135..SADCB,SASCB,SAXTR¥3,560202009-202109

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09070iGUN12#,135..THDCB¥3,560202006-202108

main47550-71030iGUN12#,135..SADCB,SASCB,SAXTR¥3,560202009-202109

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-0K120iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

47601CWASHER, C(FOR REAR BRAKE)

main90016-AD501iGUN12#,135..THDCB¥80202006-202108

main90016-DD002iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0K050iGUN12#,135..THDCB¥310202006-202108

main47644-35040iGUN12#,135..SADCB,SASCB,SAXTR¥200202009-202109

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-35040iGUN12#,135..SADCB,SASCB,SAXTR¥200202009-202109

main47644-0K050iGUN12#,135..THDCB¥310202006-202108

90016AA602

main90016-AA602¥190

17 parts on this diagram · 2 diagrams in section
