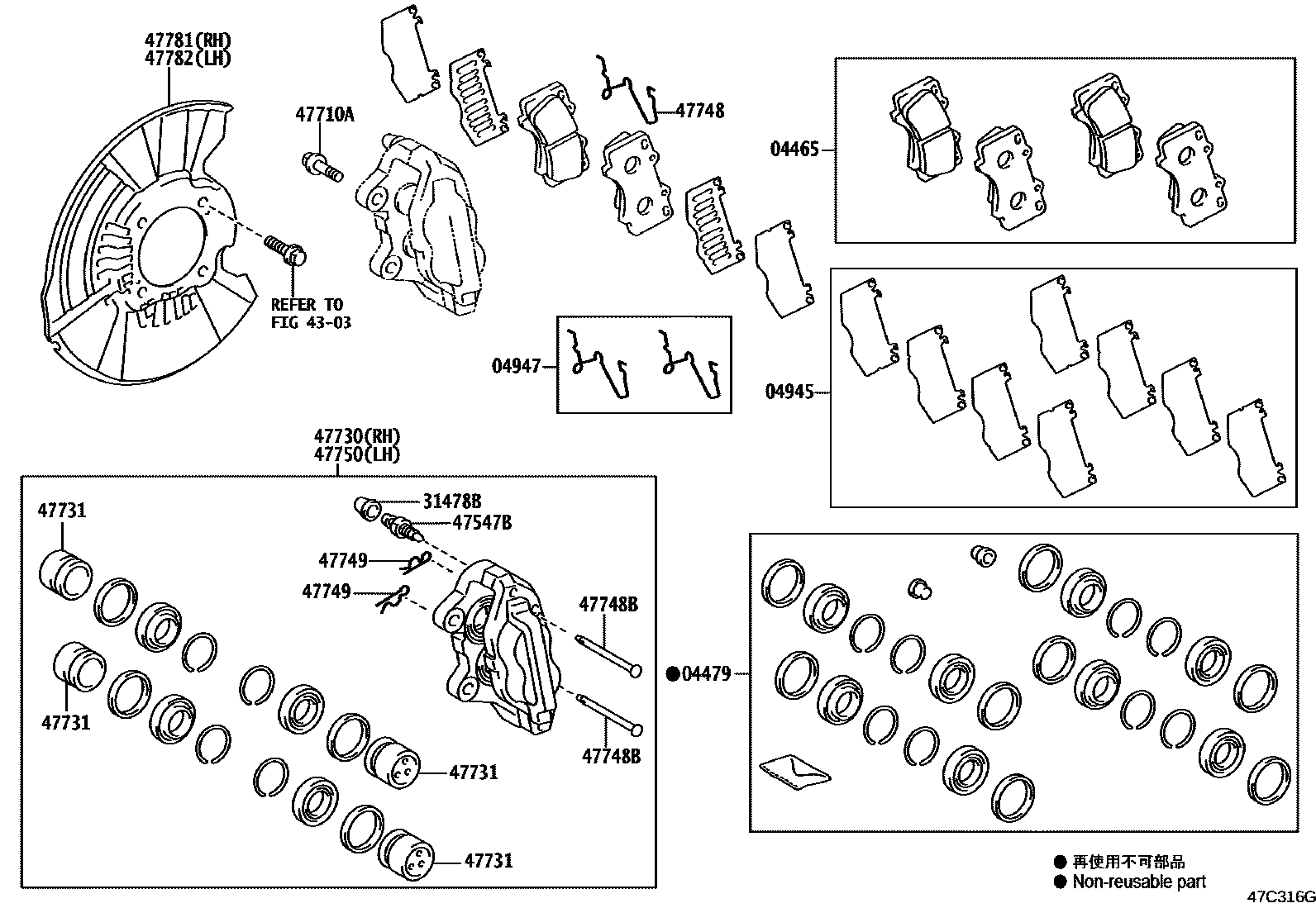

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0K580iGUN12#,135202006-202109

MARK ADVICS PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0K250iGUN12#,135202006-202109

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0K370iGUN12#,135202006-202109

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0K100iGUN12#,135202006-202109

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iGUN12#,135202006-202109

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGUN12#,135202006-202109

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-T0322iGUN12#,135202006-202109

*14-1.5PX35-30.5

sub90105-14212

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K300iGUN12#,135..THDCB202006-202108

main47730-0K350iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

47731PISTON, FRONT DISC BRAKE

main47731-0K300iGUN12#,135202006-202109

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0K300iGUN12#,135..SADCB,SASCB,SAXTR202009-202108

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90016-AE602iGUN12#,135202006-202109

47749CLIP, PIN HOLD

main47743-0K300iGUN12#,135202006-202109

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K300iGUN12#,135..THDCB202006-202108

main47750-0K350iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0K193iGUN12#,135..THDCB202006-202108

main47781-0K201iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0K193iGUN12#,135..THDCB202006-202108

main47782-0K201iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

16 parts on this diagram · 1 diagram in section
