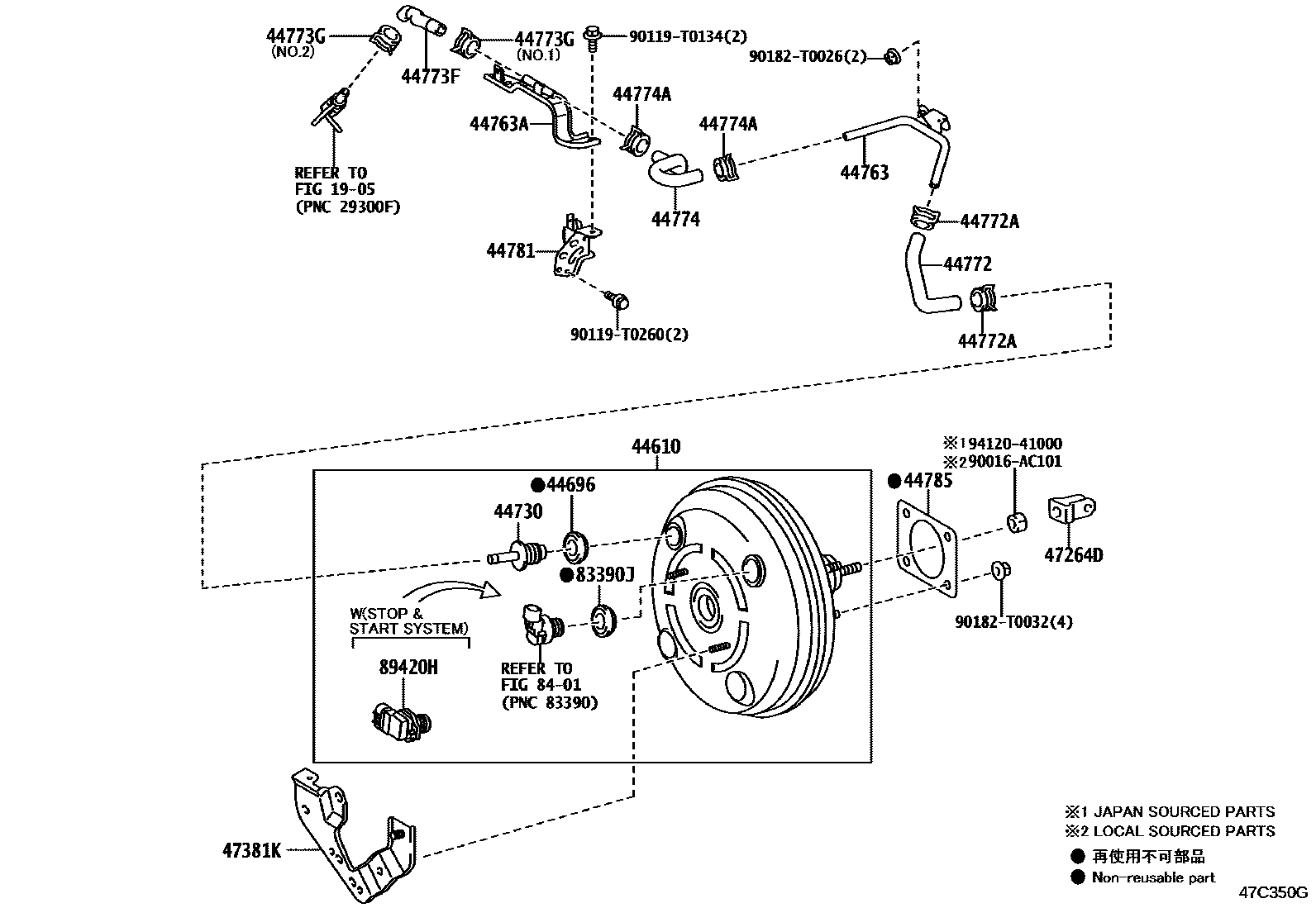

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-0K580iGUN125..RHD..SASCB¥33,200202009-202109

TOYOTA STOP & START SYSTEM-WITHOUT

main44610-0K590iGUN12#..RHD..(SADCB,SAXTR)¥33,600202009-202109

main44610-0K600iGUN135..SASCB,SAXTR,THDCB;GUN12#..LHD..(SASCB,THDCB)202006-202109

main44610-0K610iGUN135..SADCB;GUN12#..LHD..(SADCB,SAXTR)202009-202109

44696GROMMET, CHECK VALVE

main90016-AT003iGUN12#,135¥120202006-202109

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGUN12#,135¥1,300202006-202109

44763TUBE, BOOSTER VACUUM

main44763-KK040iGUN12#..RHD¥1,730202009-202109

main44763-KK050iGUN12#,135..LHD202006-202109

44763ATUBE, HOSE TO HOSE, NO.1

main44763-KK080iGUN12#,135..LHD¥1,430202006-202109

main44763-KK080iGUN12#..RHD¥1,430202009-202109

TYPE A:REFER ILLUST.

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-KK010iGUN12#..RHD¥520202009-202109

main44772-KK070iGUN12#,135..LHD202006-202109

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0019iGUN12#,135¥120202006-202109

44773FHOSE, UNION TO CHECK VALVE

main44773-KK030iGUN12#,135¥520202006-202109

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN12#,135¥120202006-202109

NO.1

main90467-16014iGUN12#,135¥230202006-202109

NO.2

44774HOSE, UNION TO CONNECTOR TUBE

main44774-KK040iGUN12#,135¥910202006-202109

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0019iGUN12#,135¥120202006-202109

44781BRACKET, HOSE

main44781-KK020iGUN12#,135¥1,000202006-202109

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN12#,135¥300202006-202109

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN12#,135¥260202006-202109

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K070iGUN12#,135¥780202006-202102

main47381-0K071iGUN12#,135¥740202102-202109

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iGUN12#,135¥120202006-202109

8401

89420HSENSOR ASSY, VACUUM

main89421-52020iGUN135..SADCB;GUN12#..SADCB,SAXTR¥5,900202009-202109

90016AC101

main90016-AC101

90119T0134

main90119-T0134¥90

90119T0260

main90119-T0260

90182T0026

main90182-T0026¥60

90182T0032

main90182-T0032¥100

9412041000

main94120-41000¥80

25 parts on this diagram · 2 diagrams in section
