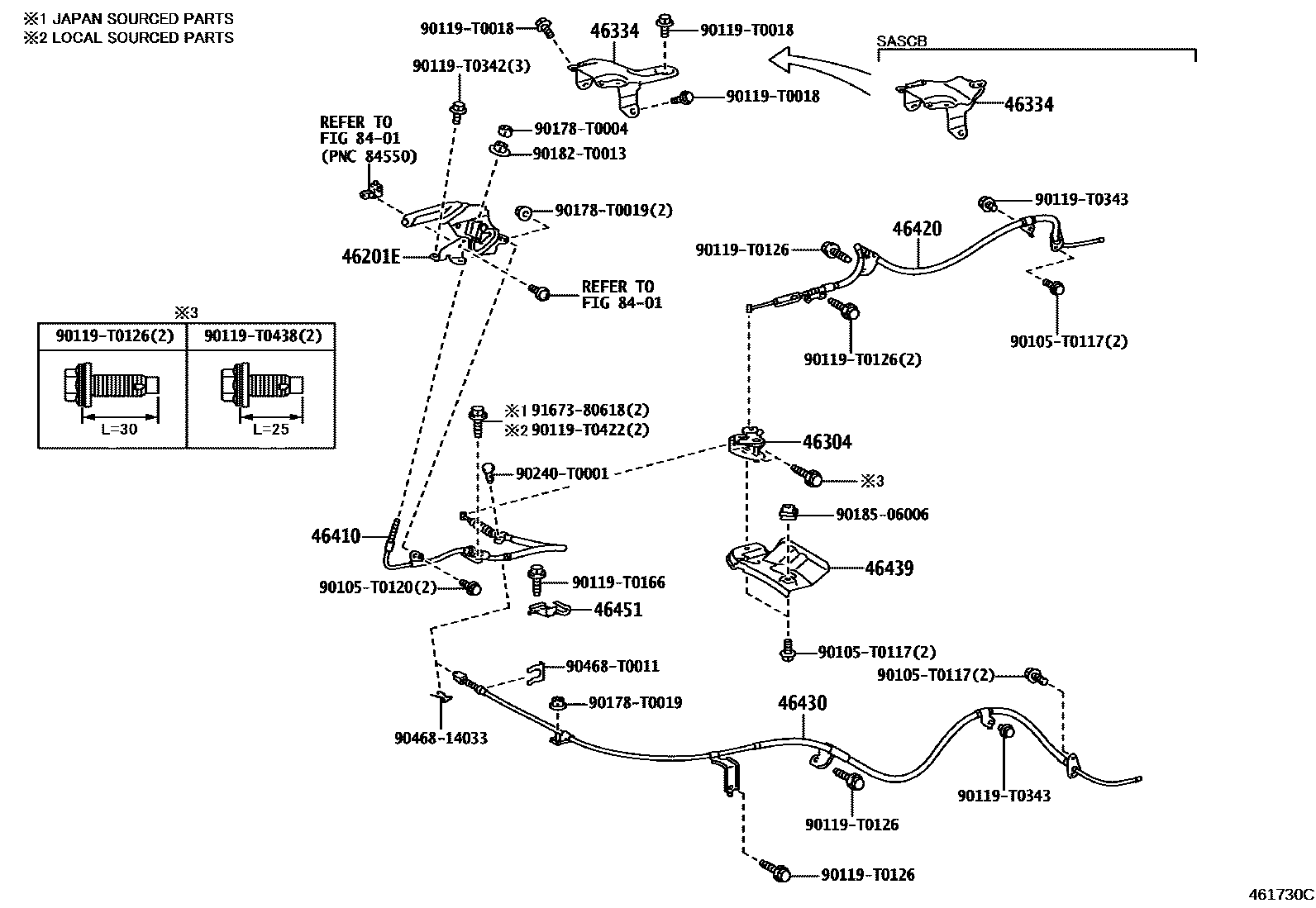

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K210-C0iGUN12#,135..(SADCB,SAXTR)..H202009-202109

BLACK,TRIM2#

main46201-0K230-C0iGUN12#,135..THDCB202006-202108

BLACK,TRIM2#

main46201-0K280-C0iGUN125,135..(SADCB,SASCB,SAXTR)..(L,S)202009-202109

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN12#,135..THDCB202006-202108

main46304-0K090iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN12#,135..SADCB,SAXTR,THDCB202006-202109

main46334-0K020iGUN125,135..SASCB202009-202109

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K120iGUN12#,135202006-202109

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K290iGUN12#,135..THDCB202006-202108

main46420-0K310iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iGUN12#,135..THDCB202006-202108

main46430-0K230iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGUN12#,135202006-202109

46451BRACKET, CABLE SUPPORT

main46451-0K040iGUN12#,135202006-202109

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

26 parts on this diagram · 1 diagram in section
