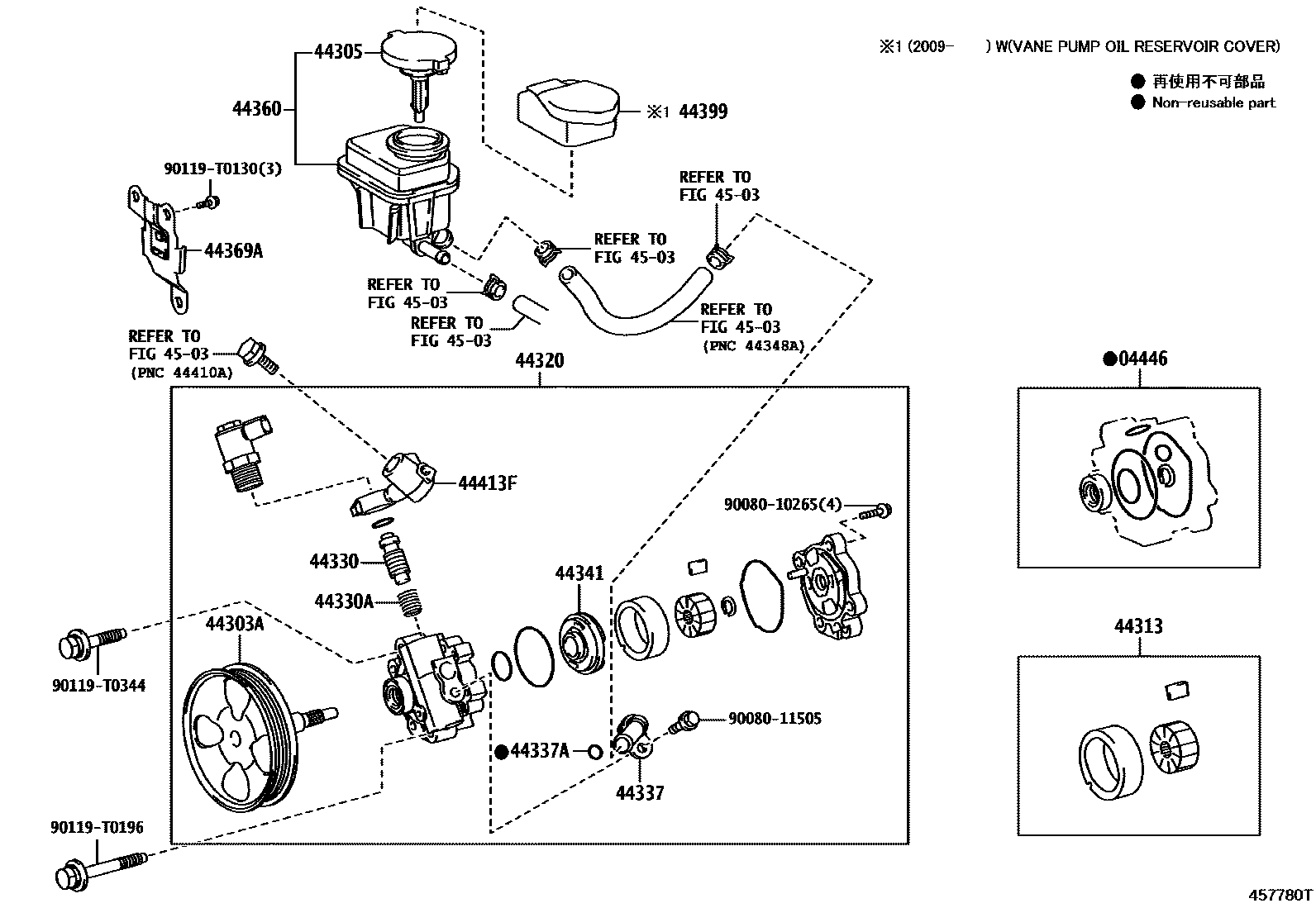

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-06110iGUN12#,135202006-202109

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iGUN12#,135202006-202109

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K030iGUN12#,135202006-202109

44313ROTOR, VANE PUMP

main44313-09010iGUN12#,135202006-202109

44320PUMP ASSY, VANE

main44310-0K142iGUN12#,135202006-202109

44330VALVE ASSY, FLOW CONTROL

main44330-0K330iGUN12#,135202006-202109

MARK C

main44330-0K340iGUN12#,135202006-202109

MARK D

main44330-0K350iGUN12#,135202006-202109

MARK E

main44330-0K360iGUN12#,135202006-202109

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-T0001iGUN12#,135202006-202109

44337UNION, POWER STEERING SUCTION PORT

main44337-0K040iGUN12#,135202006-202109

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30093iGUN12#,135202006-202109

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iGUN12#,135202006-202109

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K050iGUN12#,135202006-202109

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-0K010iGUN12#,135202006-202109

44399COVER, VANE PUMP OIL RESERVOIR

main44399-0K010iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

44413FTUBE, PRESSURE FEED, NO.2

main44413-0K012iGUN12#,135202006-202109

4503

9008010265

main90080-10265

9008011505

main90080-11505

90119T0130

main90119-T0130

90119T0196

main90119-T0196

90119T0344

main90119-T0344

20 parts on this diagram · 1 diagram in section
