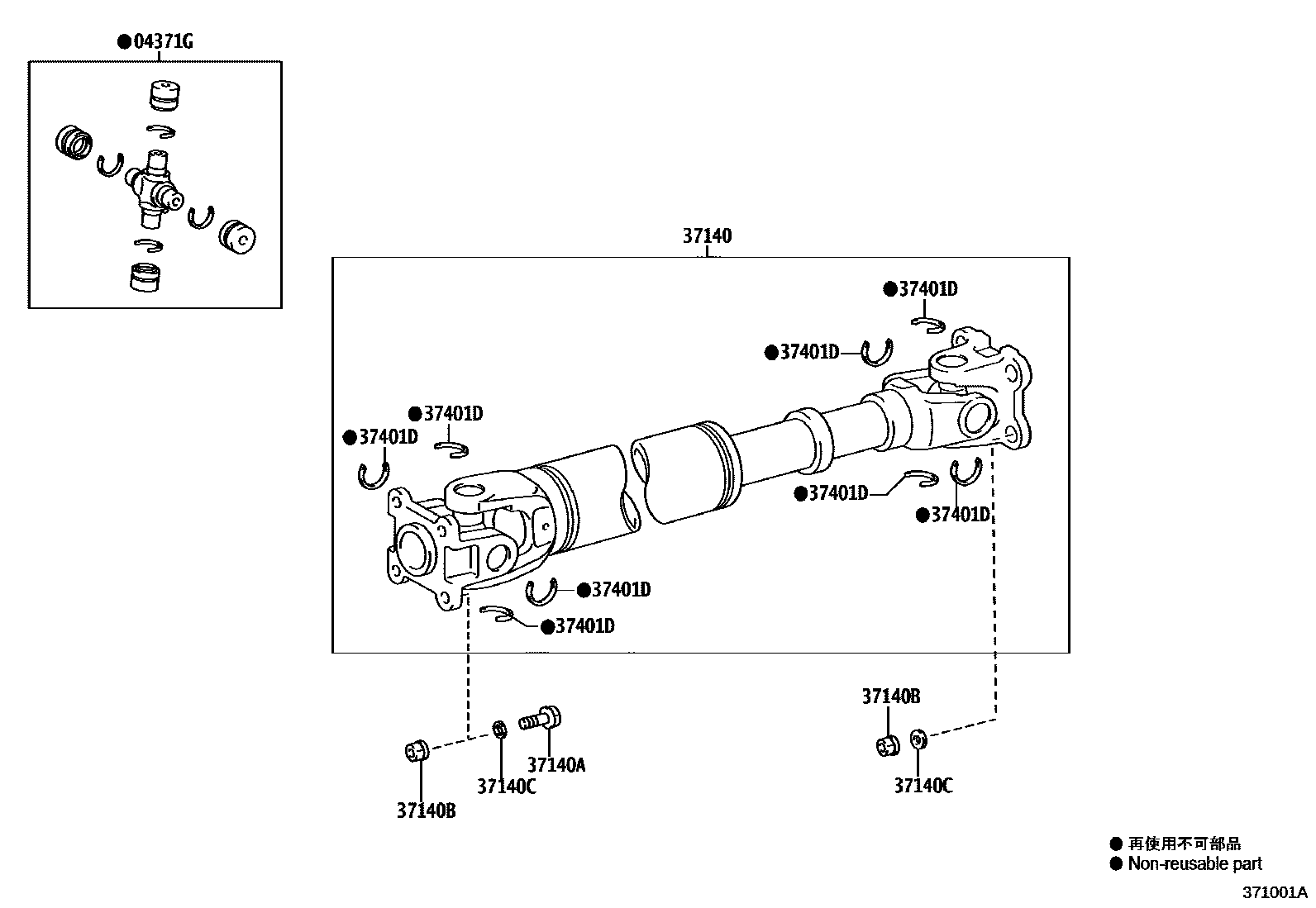

PROPELLER SHAFT & UNIVERSAL JOINT
04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT
37140SHAFT ASSY, PROPELLER, FRONT
37140ABOLT (F0R FRONT PROPELLER SHAFT)
37140BNUT (F0R FRONT PROPELLER SHAFT)
37140CWASHER (F0R FRONT PROPELLER SHAFT)
sub90201-11013
37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
T=1.64,BLUE
T=1.59,YELLOW
T=1.54,SILVER
T=1.49,COPPER
T=1.51,BLACK
T=1.44,RED
T=1.38,GREEN
T=1.41
T=1.46
T=1.48
T=1.56
T=1.61
T=1.66
T=1.71
T=2.19,MARK F
T=2.21,MARK G
T=2.23,MARK H
T=2.25,MARK J
T=2.27,MARK K
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,MARK 3
T=2.35,MARK 4
T=2.37,MARK 5
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK N
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
6 parts on this diagram · 6 diagrams in section
