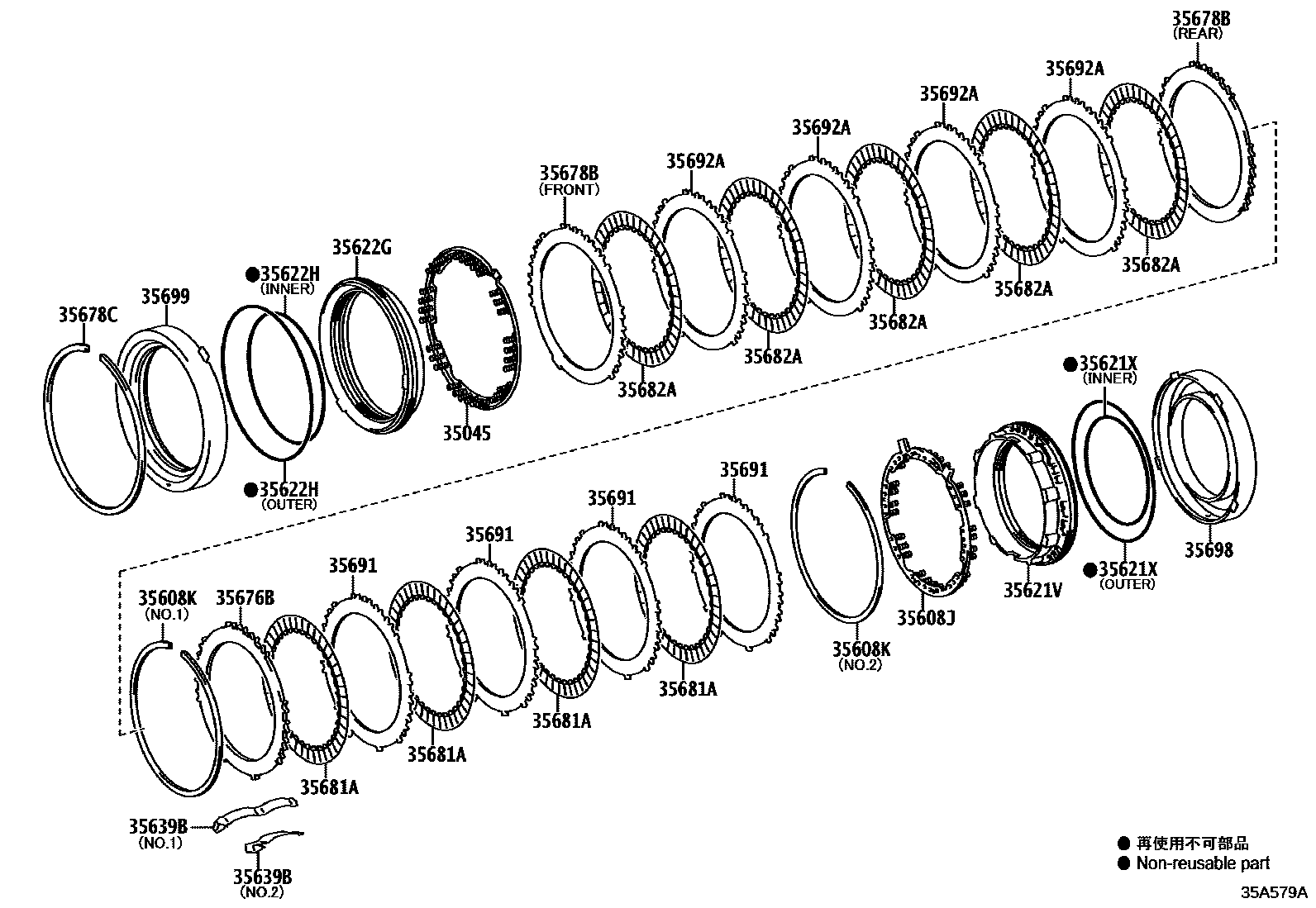

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
(L)
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
(L)
(J)
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(L),NO.2:SEE ILLUST
NO.1:REFER ILLUST.
35621VPISTON, BRAKE, NO.1
(L)
(J)
35621XRING, O (FOR BRAKE PISTON NO.1)
OUTER
INNER
INNER
(L),OUTER
35622GPISTON, BRAKE, NO.2
(L)
35622HRING, O (FOR BRAKE PISTON NO.2)
(J),INNER
(J),OUTER
(L),OUTER
INNER
35639BSPRING, BRAKE PLATE STOPPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35676BFLANGE, BRAKE, NO.1
T=4.9
T=5.0
T=5.1
T=5.2
T=5.3
T=5.4
T=5.5
T=5.6
T=5.7
T=5.8
35678BFLANGE, BRAKE, NO.2
T=3.8,REAR
T=2.0,FRONT
T=2.1,FRONT
T=2.2,FRONT
T=2.3,FRONT
T=2.4,FRONT
T=2.5,FRONT
T=2.6,FRONT
T=2.7,FRONT
T=2.8,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
(L)
35681ADISC, BRAKE, NO.1
(L)
(J)
35682ADISC, BRAKE, NO.2
(L)
(J)
35691PLATE, BRAKE, NO.1
(L)
(J)
35692APLATE, BRAKE, NO.2
(L)
(J)
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
17 parts on this diagram · 1 diagram in section
