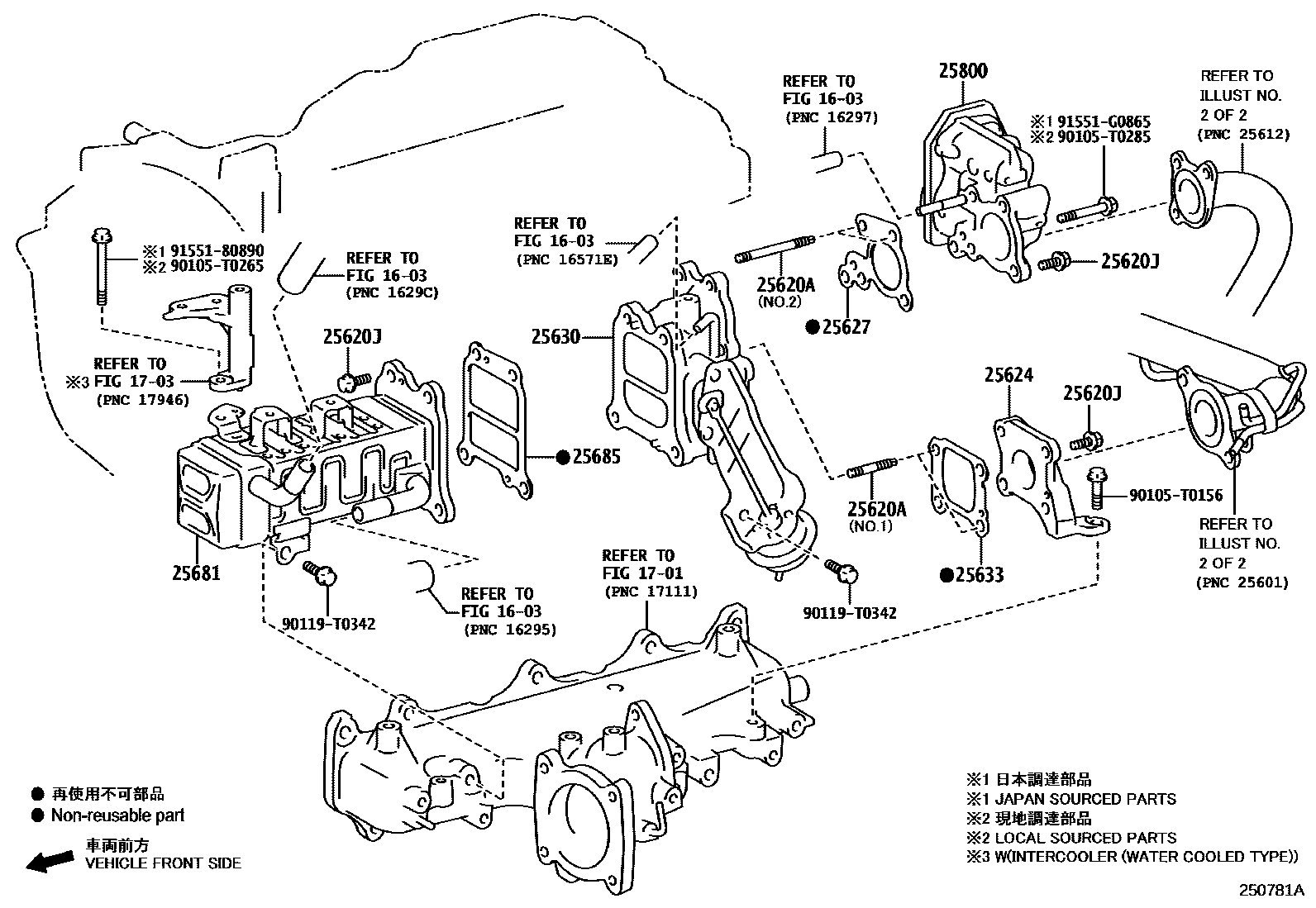

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
1703
25620ABOLT, STUD(FOR EGR VALVE)
NO.1
(L),NO.2
25620JBOLT(FOR EGR VALVE)
(L)
25624ADAPTER, EGR VALVE
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
25627GASKET, EGR VALVE
THA SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25630VALVE ASSY, EGR, NO.2
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
sub25630-0E041
25633GASKET, EGR VALVE
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
25681COOLER, EGR, NO.1
RUSSIA, CUSTOM UNION SPEC,THA SOURCED PARTS
THA SOURCED PARTS
25685GASKET, EGR COOLER, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
25800VALVE ASSY, ELECTRIC EGR CONTROL
(L)
90105T0156
main90105-T0156
90105T0265
main90105-T0265
90105T0285
main90105-T0285
90119T0342
main90119-T0342
9155180890
main91551-80890
91551G0865
main91551-G0865
18 parts on this diagram · 2 diagrams in section
