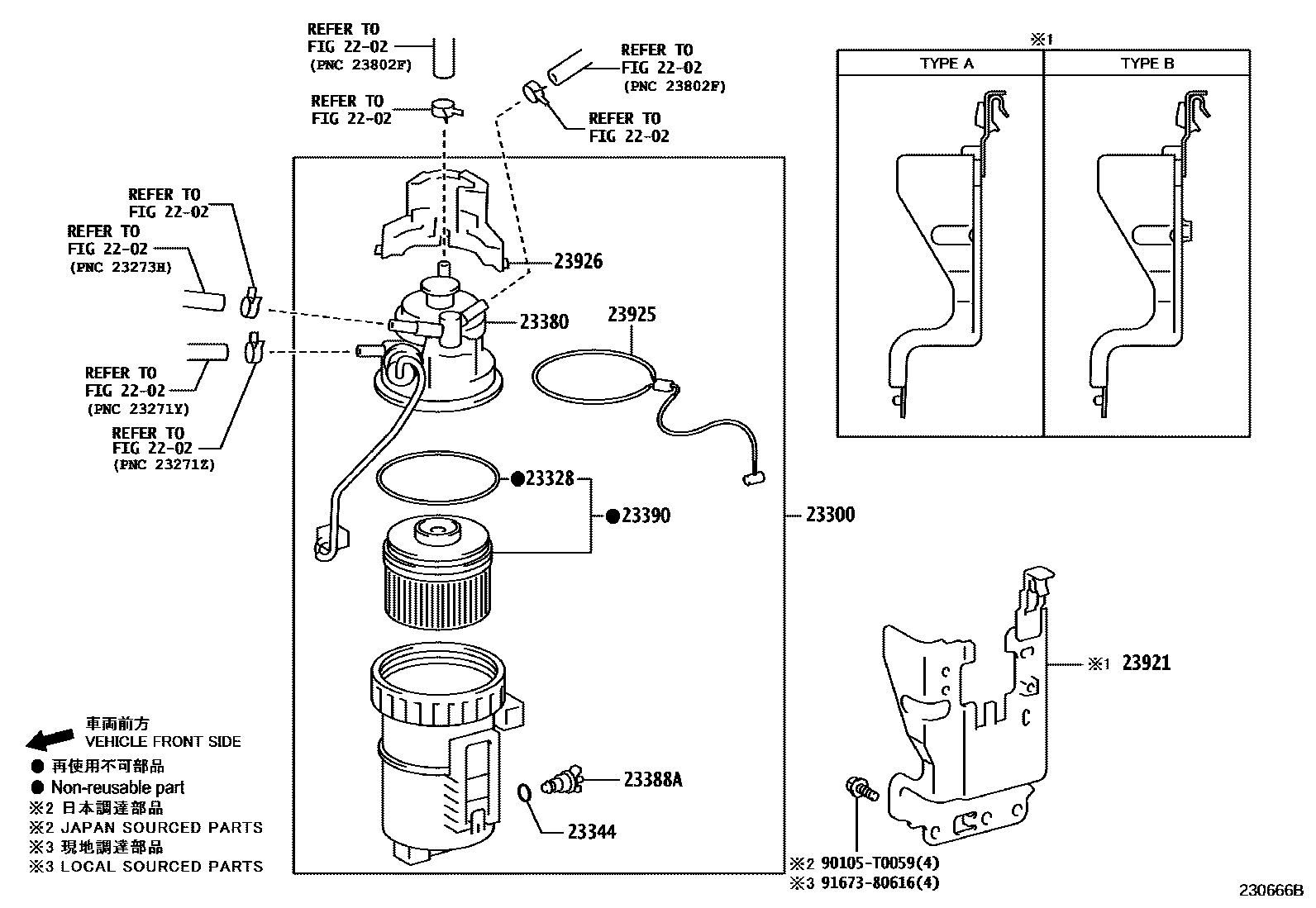

FUEL FILTER

0001 1FUEL FILTER 0002 1PRESSURIZED FUEL FILTER

2202

23300FILTER ASSY, FUEL

main23300-0L091i1GDFTV,2GDFTV..GUN12#,135202006-202109

23328GASKET(FOR FUEL FILTER)

main23344-0L070i1GDFTV,2GDFTV..GUN12#,135202006-202109

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1GDFTV,2GDFTV..GUN12#,135202006-202109

23380CAP ASSY, FUEL FILTER

main23380-0L091i1GDFTV,2GDFTV..GUN12#,135202006-202109

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i1GDFTV,2GDFTV..GUN12#,135202006-202109

23390ELEMENT ASSY, FUEL FILTER

main23390-0L090i1GDFTV,2GDFTV..GUN12#,135202006-202109

23921SUPPORT, FUEL FILTER

main23921-0L130i1GDFTV..GUN126..THDCB202006-202108

TYPE A:REFER ILLUST.

main23921-0L130i1GDFTV..GUN126..THDCB202006-202108

RUSSIA, CUSTOM UNION SPEC,TYPE A:REFER ILLUST.

main23921-0L210i2GDFTV..GUN125,135;1GDFTV..GUN126..SADCB,SAXTR202006-202109

TYPE B:REFER ILLUST.

23925STAY, FUEL FILTER SUPPORT

main23925-0L020i1GDFTV,2GDFTV..GUN12#,135202006-202109

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0L020i1GDFTV,2GDFTV..GUN12#,135202006-202109

90105T0059

main90105-T0059

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
