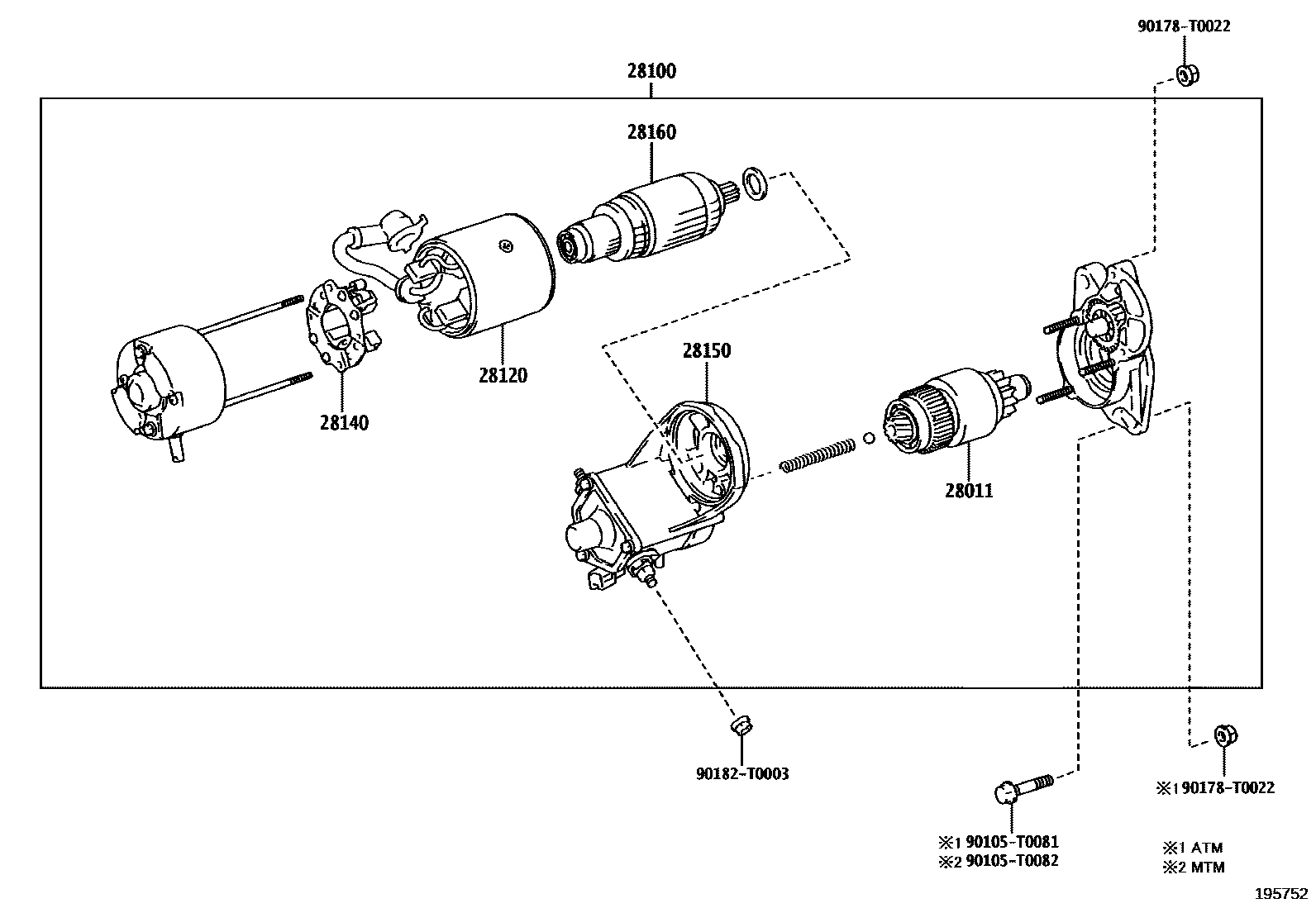

STARTER

0001 112V 2.7KW 0004 112V 2.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i2GDFTV..GUN135..SASCB,SAXTR,THDCB;1GDFTV,2GDFTV..GUN12#..SASCB,THDCB¥19,200202006-202109

28100STARTER ASSY

main28100-0L052i2GDFTV..GUN135..SASCB,SAXTR,THDCB;1GDFTV,2GDFTV..GUN12#..SASCB,THDCB¥88,300202006-202109

12V 2.7KW

main28100-30110i2GDFTV..GUN135..SADCB;1GDFTV,2GDFTV..GUN12#..SADCB,SAXTR¥84,400202009-202109

12V 2.4KW

28120YOKE ASSY, STARTER

main28120-0L050i2GDFTV..GUN135..SASCB,SAXTR,THDCB;1GDFTV,2GDFTV..GUN12#..SASCB,THDCB202006-202109

28140HOLDER ASSY, STARTER BRUSH

main28140-77090i2GDFTV..GUN135..SASCB,SAXTR,THDCB;1GDFTV,2GDFTV..GUN12#..SASCB,THDCB202006-202109

28150SWITCH ASSY, MAGNET STARTER

main28150-0L050i2GDFTV..GUN135..SASCB,SAXTR,THDCB;1GDFTV,2GDFTV..GUN12#..SASCB,THDCB¥25,000202006-202109

28160ARMATURE ASSY, STARTER

main28160-54140i2GDFTV..GUN135..SASCB,SAXTR,THDCB;1GDFTV,2GDFTV..GUN12#..SASCB,THDCB¥20,000202006-202109

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0022

main90178-T0022¥100

90182T0003

main90182-T0003¥100

10 parts on this diagram · 2 diagrams in section
