EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
RUSSIA, CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
*114=*102,UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
sub17410-0E041
*114=*102,ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO6D-TEMP
sub17410-0E041
*114=*102,TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO6D-TEMP
sub17410-0E041
*114=TOYOTA/ZC3ZD6/Y
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,TYPE A:REFER ILLUST.
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
RUSSIA, CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
17451AGASKET, EXHAUST PIPE, NO.2
ISRAEL SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
UKRAINE SPEC (EURO 6 REGULATION)
RUSSIA, CUSTOM UNION SPEC
17564SUPPORT,EXHAUST PIPE, NO.4
MARK:17565-0L100
RUSSIA, CUSTOM UNION SPEC,MARK:17565-0L110
MARK:17565-0L110
MARK:17565-0L120
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L070
RUSSIA, CUSTOM UNION SPEC,MARK:17565-0L070
MARK:17565-0L080
MARK:17565-0L090
NO MARK
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
5151
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035

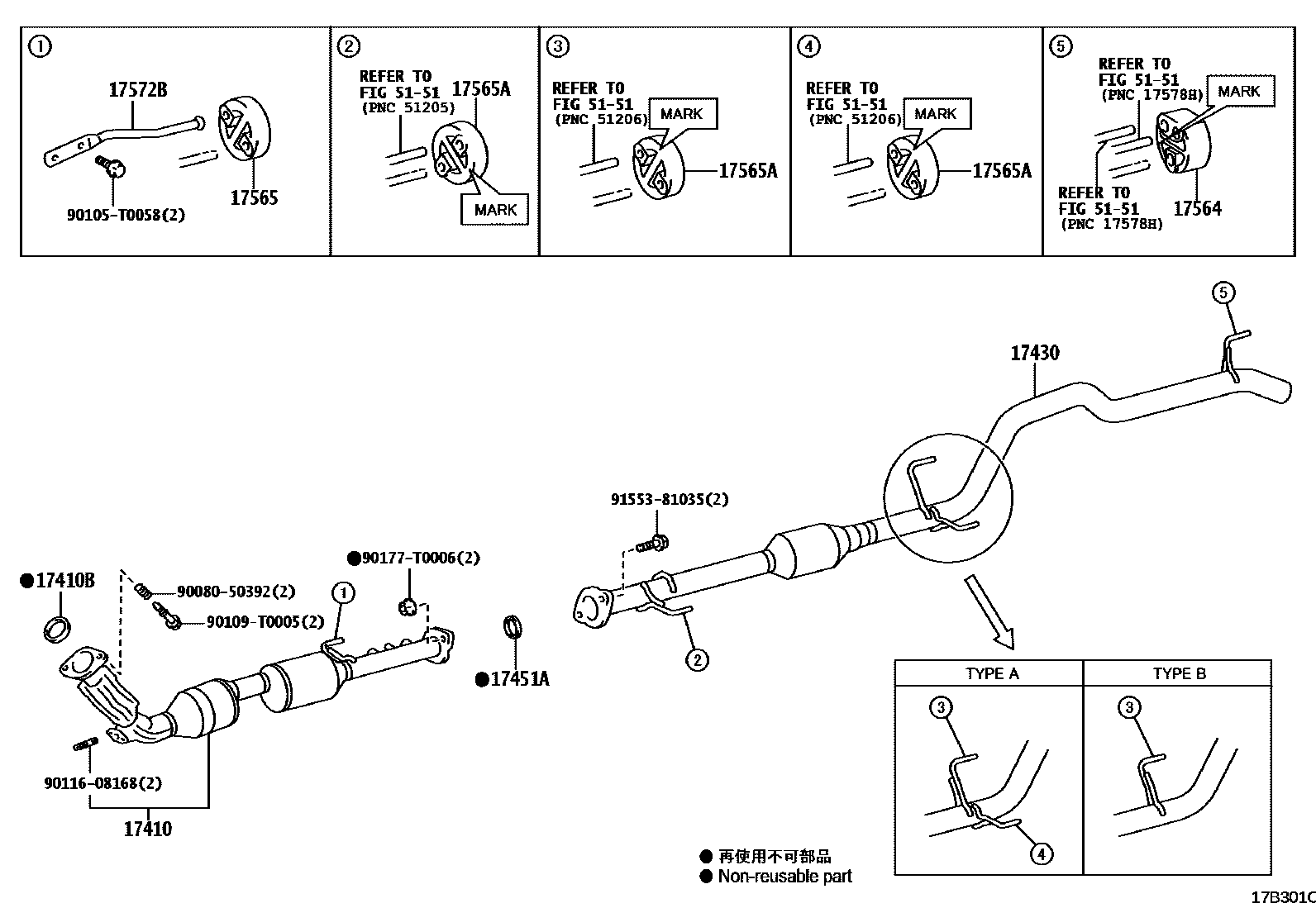

15 parts on this diagram · 2 diagrams in section
