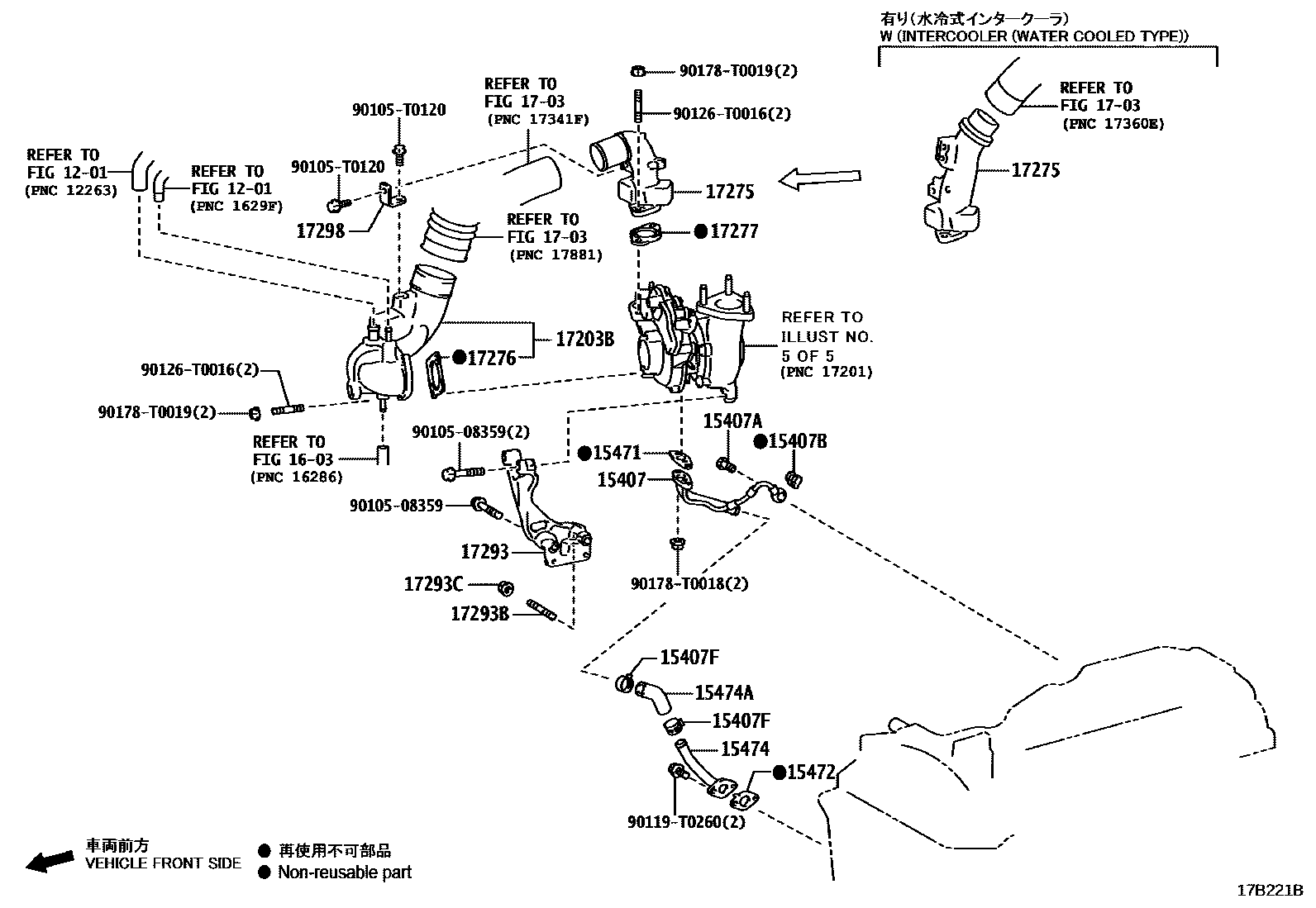

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
(L)
15407BGASKET(FOR TURBO OIL INLET PIPE)
(L)
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
15472GASKET, TURBO OIL OUTLET, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
15474PIPE, TURBO OIL OUTLET
THA SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
15474AHOSE, TURBO OIL OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
17275ELBOW, COMPRESSOR OUTLET
THA SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,THA SOURCED PARTS
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
IND SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
17276GASKET, COMPRESSOR INLET
(L)
(J)
17277GASKET, COMPRESSOR OUTLET
THA SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
17293STAY, TURBOCHARGER
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
17293BBOLT(FOR TURBOCHARGER STAY)
17293CNUT(FOR TURBOCHARGER STAY)
17298STAY, COMPRESSOR ELBOW
THA SOURCED PARTS
RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
9010508359
main90105-08359
90105T0120
main90105-T0120
90119T0260
main90119-T0260
90126T0016
main90126-T0016
90178T0018
main90178-T0018
90178T0019
main90178-T0019
23 parts on this diagram · 5 diagrams in section
