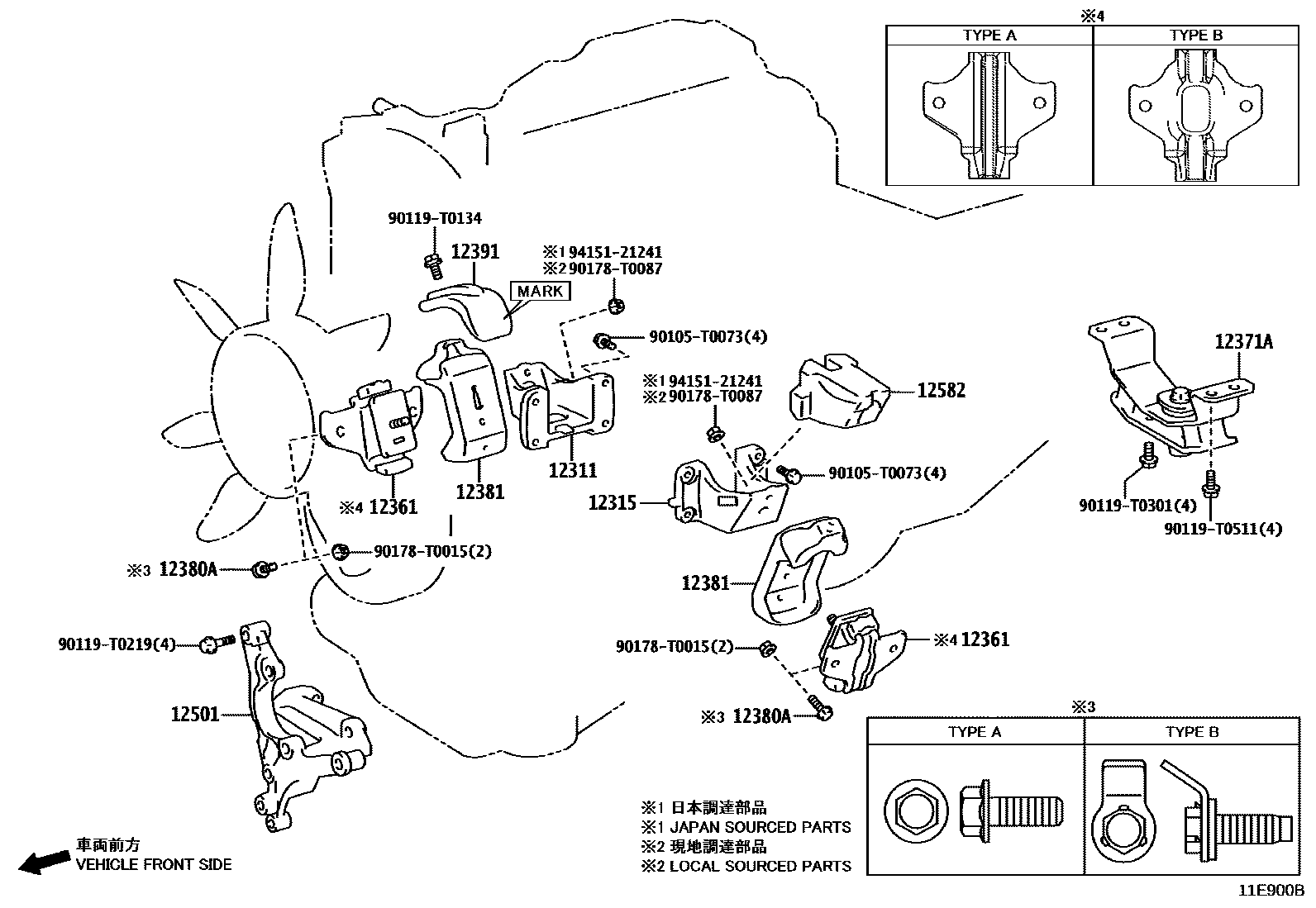

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0E020i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main12311-0E050i2GDFTV..GUN125..THDCB..6F202008-202108

RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

main12311-0E050i1GDFTV..GUN126..THDCB202008-202108

IND SOURCED PARTS

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0E010i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main12315-0E040i2GDFTV..GUN125..THDCB..6F202008-202108

RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

main12315-0E040i1GDFTV..GUN126..THDCB202008-202108

IND SOURCED PARTS

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0L021i1GDFTV,2GDFTV..GUN12#,135202006-202109

(L)

main12361-30170i1GDFTV,2GDFTV..GUN12#,135202006-202101

(J),TYPE A:REF ILL.

sub12361-30171

sub12381-30091

main12361-30171i1GDFTV,2GDFTV..GUN12#,135202101-202107

(J),TYPE B:REF ILL.

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0L180i2GDFTV..GUN135..6F202006-202109

main12371-0L200i2GDFTV..GUN135..6FC202006-202108

main12371-0L210i1GDFTV,2GDFTV..GUN12#202006-202109

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-T0174i1GDFTV,2GDFTV..GUN12#,135202006-202109

TYPE A:REFER ILLUST.

main90910-03003i1GDFTV,2GDFTV..GUN12#,135202006-202109

TYPE B:REFER ILLUST.

12381STABILIZER, ENGINE MOUNTING

main12381-0L081i1GDFTV,2GDFTV..GUN12#,135202006-202109

(L)

main12381-30090i1GDFTV,2GDFTV..GUN12#,135202006-202101

(J),PNC 12361=TYPE A

main12381-30091i1GDFTV,2GDFTV..GUN12#,135202101-202107

(J),PNC 12361=TYPE B

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i1GDFTV,2GDFTV..GUN12#,135..THDCB202006-202108

MARK=T

main12391-0L050i1GDFTV,2GDFTV..GUN12#,135..SADCB,SASCB,SAXTR202009-202109

MARK=S

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-0E011i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main12501-0E020i2GDFTV..GUN125..THDCB..6F202008-202108

RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

main12501-0E020i2GDFTV..GUN125..THDCB..6F202008-202108

IND SOURCED PARTS

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0E010i1GDFTV,2GDFTV..GUN12#,135202006-202109

THA SOURCED PARTS

main12582-0E020i1GDFTV..GUN126..THDCB202008-202108

RUSSIA, CUSTOM UNION SPEC,IND SOURCED PARTS

main12582-0E020i2GDFTV..GUN125..THDCB..6F202008-202108

IND SOURCED PARTS

90105T0073

main90105-T0073

90119T0134

main90119-T0134

90119T0219

main90119-T0219

90119T0301

main90119-T0301

90119T0511

main90119-T0511

90178T0015

main90178-T0015

90178T0087

main90178-T0087

9415121241

main94151-21241

17 parts on this diagram · 2 diagrams in section
