STANDARD TOOL

09110JACK ASSY

main09111-0K161iGUN12#,135¥5,500202006-202109

sub09111-0K162¥5,500

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K150iGUN12#,135..THDCB¥660202006-202108

main09114-0K190iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K170iGUN12#,135..THDCB¥1,140202006-202108

TYPE B:REFER ILLUST.

main09115-0K190iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

09120BAG, TOOL

main09120-0K230iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

sub09120-0K231

main09120-0K240iGUN12#,135..THDCB¥1,180202006-202108

09130PLIERS

main90089-99010iGUN12#,135¥440202006-202109

09135DRIVER, SCREW

main90089-99009iGUN12#,135¥500202006-202109

09141SPANNER

main09141-0K030iGUN12#,135¥530202006-202109

8 X 10

main09141-0K040iGUN12#,135¥800202006-202109

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

main09150-0K010iGUN12#,135..THDCB¥1,300202006-202108

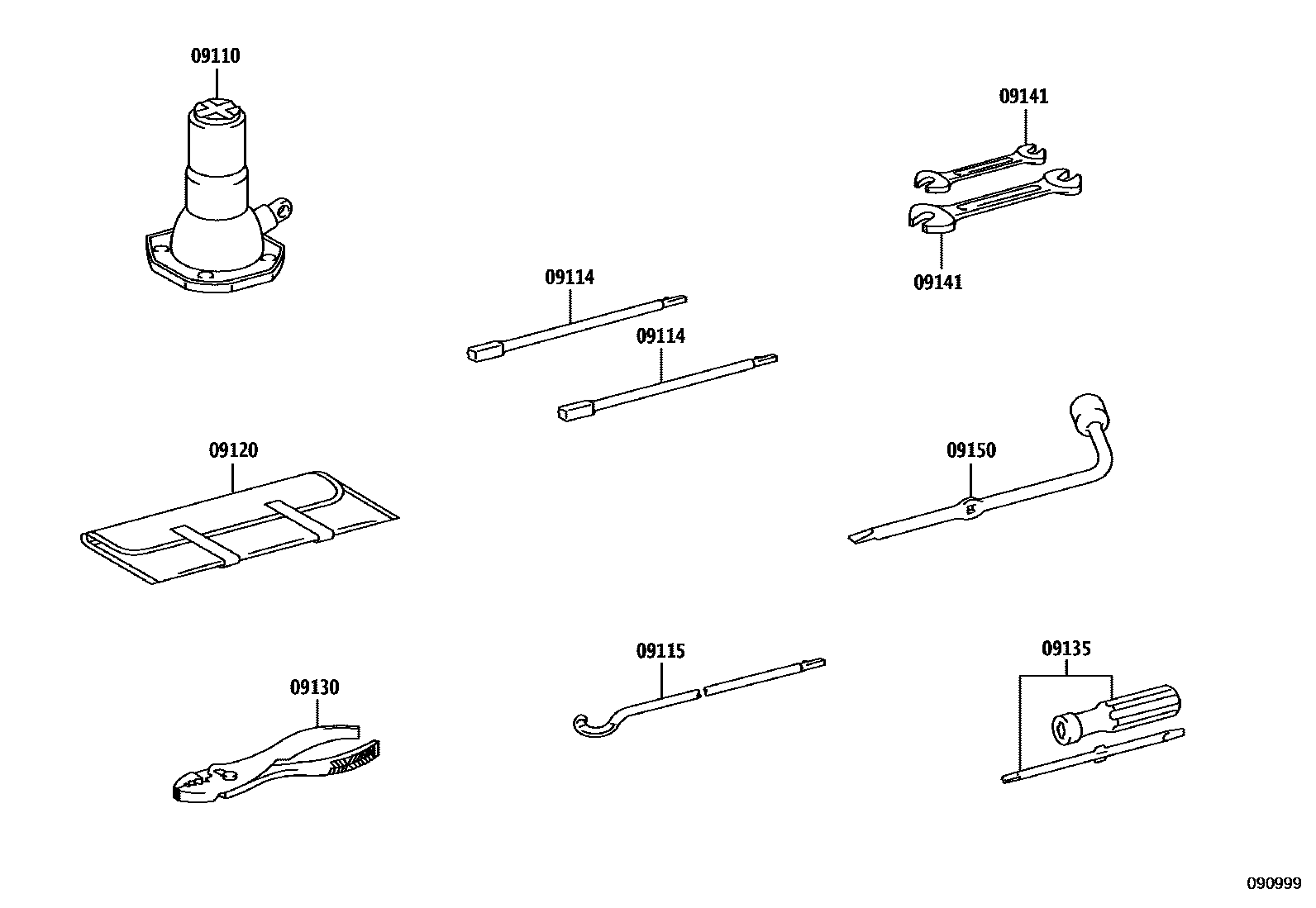

8 parts on this diagram · 1 diagram in section
