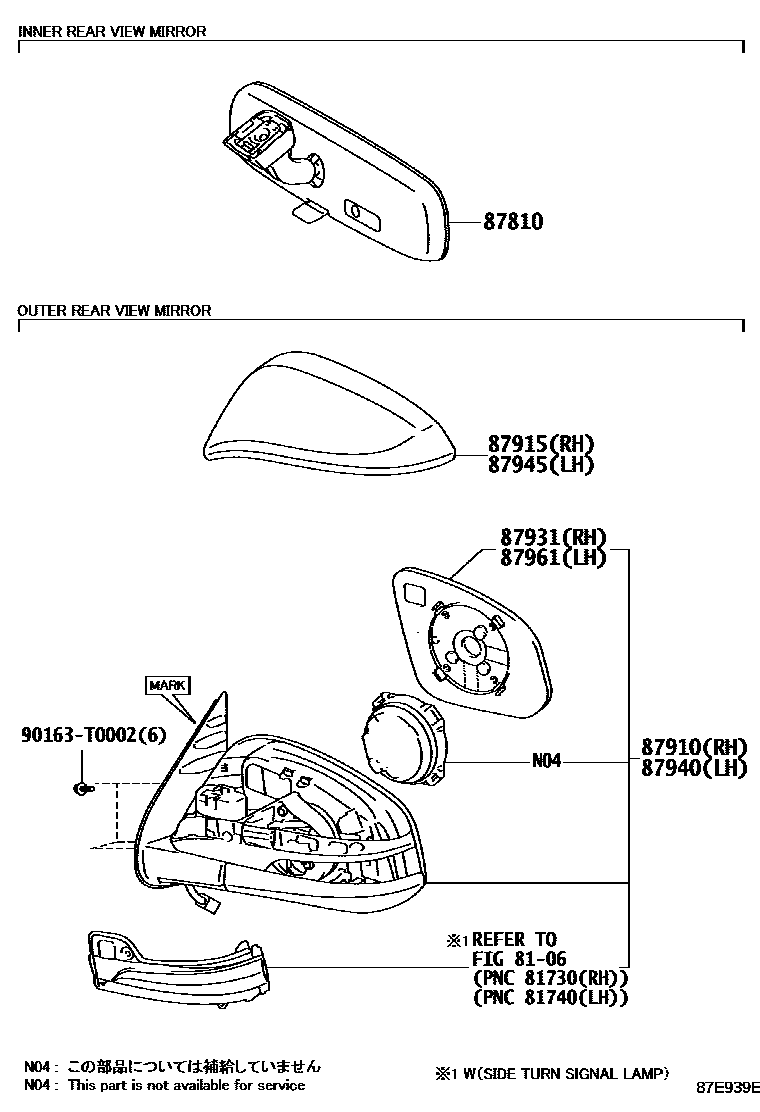

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-06041iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,MARK=R721
NO PAINT REQ.,MARK=R722
NO PAINT REQ.,MARK=R731
NO PAINT REQ.,MARK=R831
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)
NO PAINT REQ.,MARK=R841
NO PAINT REQ.,MARK=R842
NO PAINT REQ.,MARK=RG21
NO PAINT REQ.,MARK=RG22
87915COVER, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP),BLACK
BLACK
*CR
*CR
OUTSIDE REAR VIEW MIRROR-*273(BLACK)&W(*MIH)&W(SIDE TURN LAMP)
OUTSIDE REAR VIEW MIRROR-*273(BLACK)&W(*MIH)&W(SIDE TURN LAMP)
87931OUTER MIRROR, RH
main87931-0KC80iGUN125..SASCB;GUN135..(M,S)..DCRE;GUN125,135..(H,M)..HDCR;GUN135..SASCB..S..HDCR..CBU;GUN125..(SADCB,SAXTR,THDCB)..(H,M,S)..DCRE201506-202009
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,MARK=L701
NO PAINT REQ.,MARK=LE31
NO PAINT REQ.,MARK=LF21
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)
NO PAINT REQ.,MARK=LF31
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)
NO PAINT REQ.,MARK=LF91
NO PAINT REQ.,MARK=LF92
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.
PLATED
PLATED,RUSSIA & UKRAINE SPEC
PLATED
OUTSIDE REAR VIEW MIRROR-*273(BLACK)&W(*MIH)&W(SIDE TURN LAMP)
OUTSIDE REAR VIEW MIRROR-*273(BLACK)&W(*MIH)&W(SIDE TURN LAMP)
87961MIRROR OUTER, LH
main87961-0KB40iGUN125..SASCB;GUN135..(M,S)..DCRE;GUN125,135..(H,M)..HDCR;GUN135..SASCB..S..HDCR..CBU;GUN125..(SADCB,SAXTR,THDCB)..(H,M,S)..DCRE201506-202009
90163T0002
main90163-T0002
9 parts on this diagram · 1 diagram in section
