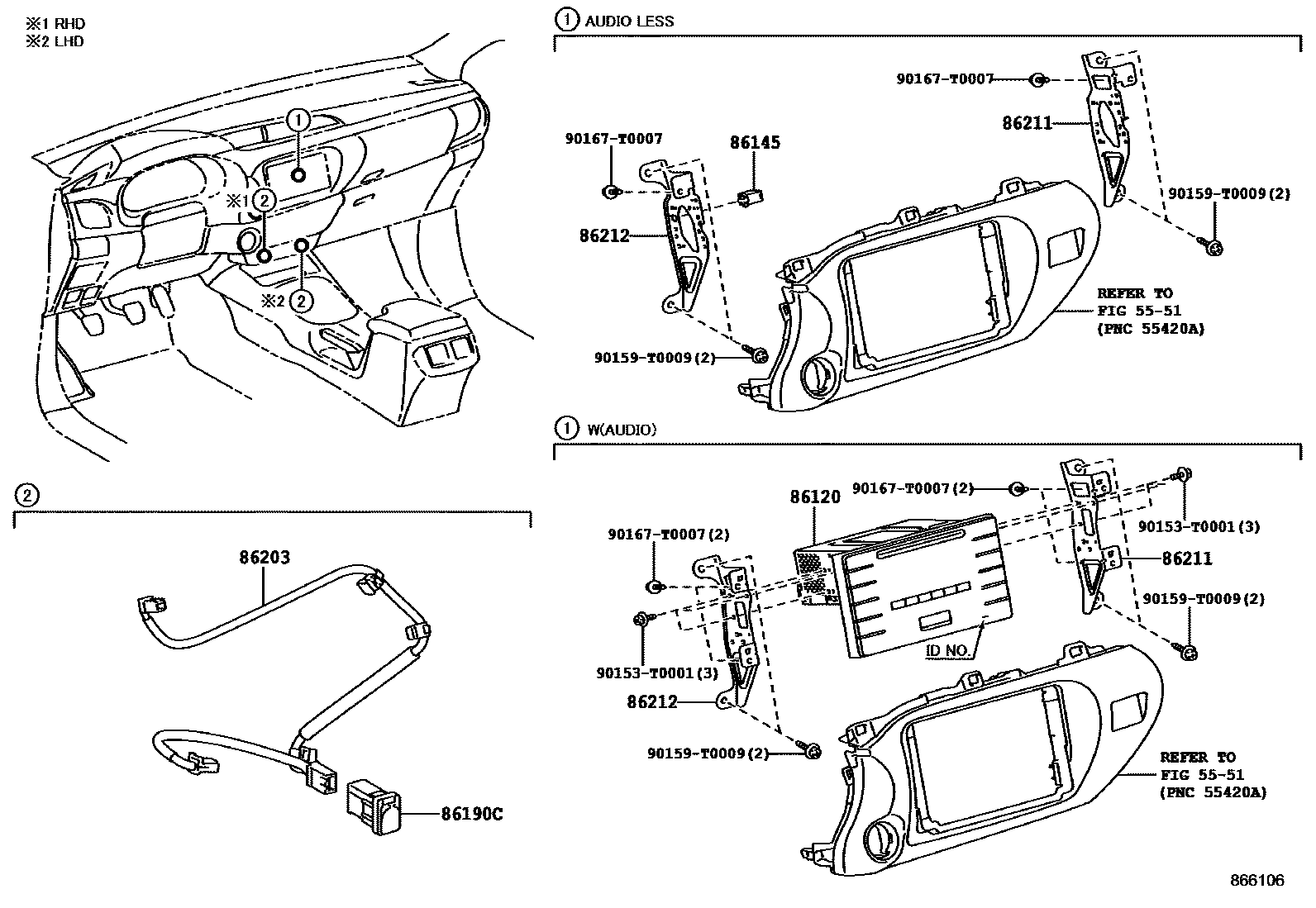

RADIO RECEIVER & AMPLIFIER & CONDENSER

5551

86120RECEIVER ASSY, RADIO

main86120-0KA60iGUN125,135..THDCB..S201506-201608

PIONEER,ID=P10797,AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER

main86120-0KA70iGUN125..RHD..S201604-202009

PIONEER,ID=P10798,AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER

main86120-0KE50iGUN135..SAXTR..X201604-202009

PIONEER,ID=P11298,AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER

86145CONNECTOR, ANTENNA MALE

main86145-52010iGUN135..SAXTR..X201506-202009

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0K030iGUN12#,135..H,M201506-202009

AUDIO-*DA & CD & *BT & RDS & DAB

86203WIRE, RADIO

main86203-71120iGUN125..RHD..(H,M)201604-202009

AUDIO-*DA & CD & *BT & RDS & DAB

main86203-71130iGUN12#,135..LHD..(H,M)201506-202009

AUDIO-*DA & CD & *BT & RDS & DAB

86211BRACKET, RADIO, NO.1

main86211-KK030iGUN125..S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..(S,X)201506-202009

AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER

main86211-KK030iGUN125..S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..(S,X)201506-202009

AUDIO-*DA & CD & *BT & RDS & DAB

main86211-KK050iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

86212BRACKET, RADIO, NO.2

main86212-KK030iGUN125..S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..(S,X)201506-202009

AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER

main86212-KK030iGUN125..S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..(S,X)201506-202009

AUDIO-*DA & CD & *BT & RDS & DAB

main86212-KK050iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

90153T0001

main90153-T0001

90159T0009

main90159-T0009

90167T0007

main90167-T0007

10 parts on this diagram · 1 diagram in section
