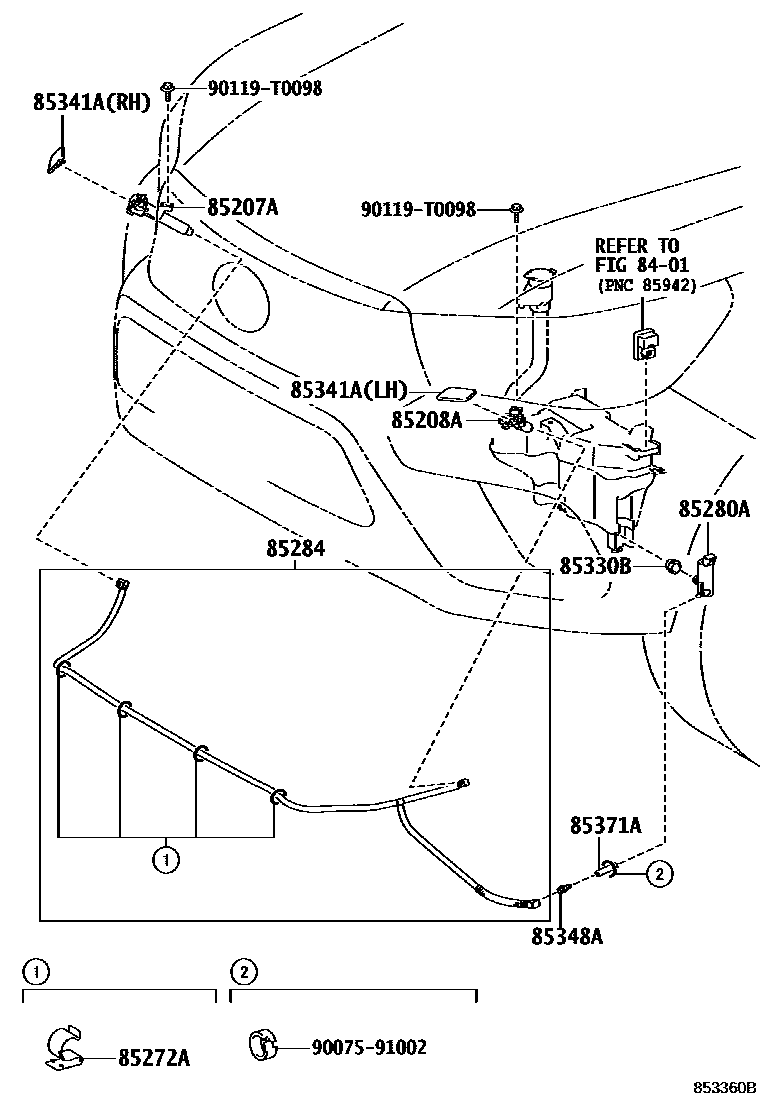

HEADLAMP CLEANER

8401

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-0K040iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201506-201912

RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B)

main85207-0K040iGUN125..THDCB..6F..M..HDCR201506-202002

"BLACK RALLY EDITION"*(B)

main85207-0K040iGUN12#,135..H,M201506-202009

PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-0K040iGUN125..(SADCB,SAXTR)..(H,M)..DCRE201506-202002

"BLACK RALLY EDITION"*(B)

main85208-0K040iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201506-201912

RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B)

main85208-0K040iGUN12#,135..H,M201506-202009

PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)

85272ACLAMP, HEADLAMP CLEANER, NO.1

main90075-90512iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201506-201912

RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B)

main90075-90512iGUN125..THDCB..6F..M..HDCR201506-202002

"BLACK RALLY EDITION"*(B)

main90075-90512iGUN12#,135..H,M201506-202009

PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-33030iGUN12#,135..H,M201506-202009

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main85271-0K040iGUN126..THDCB201506-202009

PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)

main85271-0K040iGUN126..THDCB201506-202002

"BLACK RALLY EDITION"*(B)

main85271-0K040iGUN125..THDCB..(H,M);GUN135..THDCB..M..DCRE201506-201912

RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B)

main85271-0K070iGUN125..6F..M..HDCR201910-202005

RUSSIA & UKRAINE SPEC

main85271-0K070iGUN126..H201910-202005

PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)

main85271-0K070iGUN126201910-201912

"BLACK RALLY EDITION"*(B)

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iGUN12#,135..H,M201506-202009

85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE

main85046-0K030iGUN125..THDCB..6F..M201506-201708

"BLACK RALLY EDITION"*(B),RH,PAINT REQ.

main85046-0K030iGUN12#,135..THDCB..(H,M)201506-201710

RH,PAINT REQ.

main85046-0K030iGUN12#,135..THDCB..(H,M)201506-201710

PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),RH,PAINT REQ.

main85046-0K030iGUN12#,135..THDCB..(H,M)201506-201708

RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B),RH,PAINT REQ.

main85046-0K031iGUN12#,135..(SADCB,SAXTR)..(H,M)..HDCR201708-202009

PREMIUM FULL PACKAGE(HOOD MOLD = BLACK),RH,PAINT REQ.

main85046-0K031iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201708-202002

"BLACK RALLY EDITION"*(B),RH,PAINT REQ.

main85046-0K031iGUN12#..THDCB..(H,M);GUN135..THDCB..M..DCRE201708-201912

RUSSIA & UKRAINE SPEC&"BLACK RALLY EDITION"*(B),RH,PAINT REQ.

main85046-0K031iGUN12#,135..THDCB..(H,M);GUN125,135..(SADCB,SAXTR)..(H,M)..DCRE201708-202009

RH,PAINT REQ.

main85047-0K030iGUN12#,135..(SADCB,SAXTR)..(H,M)201506-201710

LH,PAINT REQ.

main85047-0K031iGUN12#,135..(SADCB,SAXTR)..(H,M)..HDCR201708-202009

LH,PAINT REQ.

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17012iGUN12#,135..H,M201506-202009

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15053iGUN125..6F..M..HDCR201905-202005

L=35,RUSSIA & UKRAINE SPEC

main90075-15053iGUN12#,135..H,M201506-202009

L=35

9007591002

main90075-91002

90119T0098

main90119-T0098

12 parts on this diagram · 1 diagram in section
