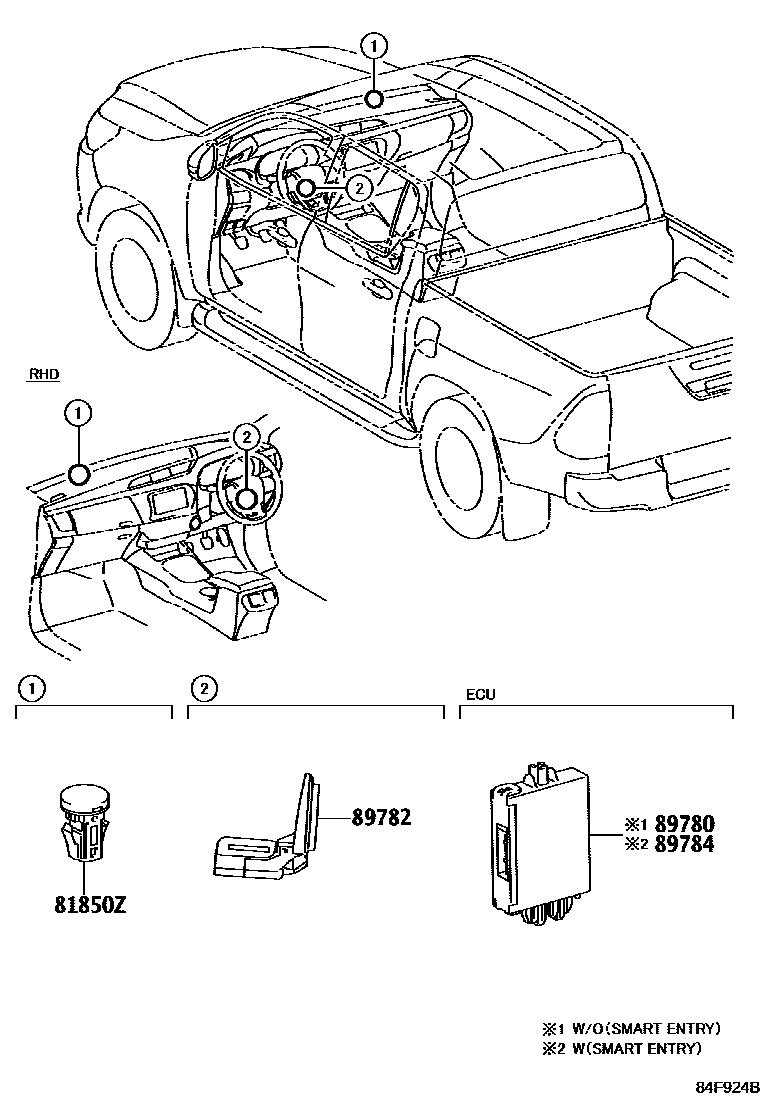

ANTI-THEFT DEVICE
81850ZLAMP ASSY, THEFT WARNING INDICATOR
main81850-0K040iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009
89780COMPUTER ASSY, TRANSPONDER KEY
sub89780-06111
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX)
sub89780-06111
main89780-06111iGUN135..SADCB,SASCB;GUN135..SAXTR..DCRE;GUN125..6FC..S..HDCR;GUN135..(SAXTR,THDCB)..(M,S)..HDCR;GUN12#..(SADCB,SASCB,SAXTR)..(M,S,X)201612-201907
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX)
sub89780-06112
sub89780-06112
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX)
sub89780-06114
sub89780-06114
89782COIL, TRANSPONDER KEY
main89782-0K030iGUN12#..(SADCB,SASCB,SAXTR)..(M,S);GUN135..(SADCB,SASCB,SAXTR)..(M,S)..CBU201604-202009
main89782-0K040iGUN125..LHD..(SADCB,SASCB,SAXTR)..S;GUN135..(SADCB,SASCB,SAXTR)..S..CBU201810-202009
DOOR OUTSIDE HANDLE-PIGMENT
89784COMPUTER, IMMOBILIZER CODE
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))&WIRELESS DOOR LOCK-WITH(*SES &ID CODE BOX)
4 parts on this diagram · 1 diagram in section
