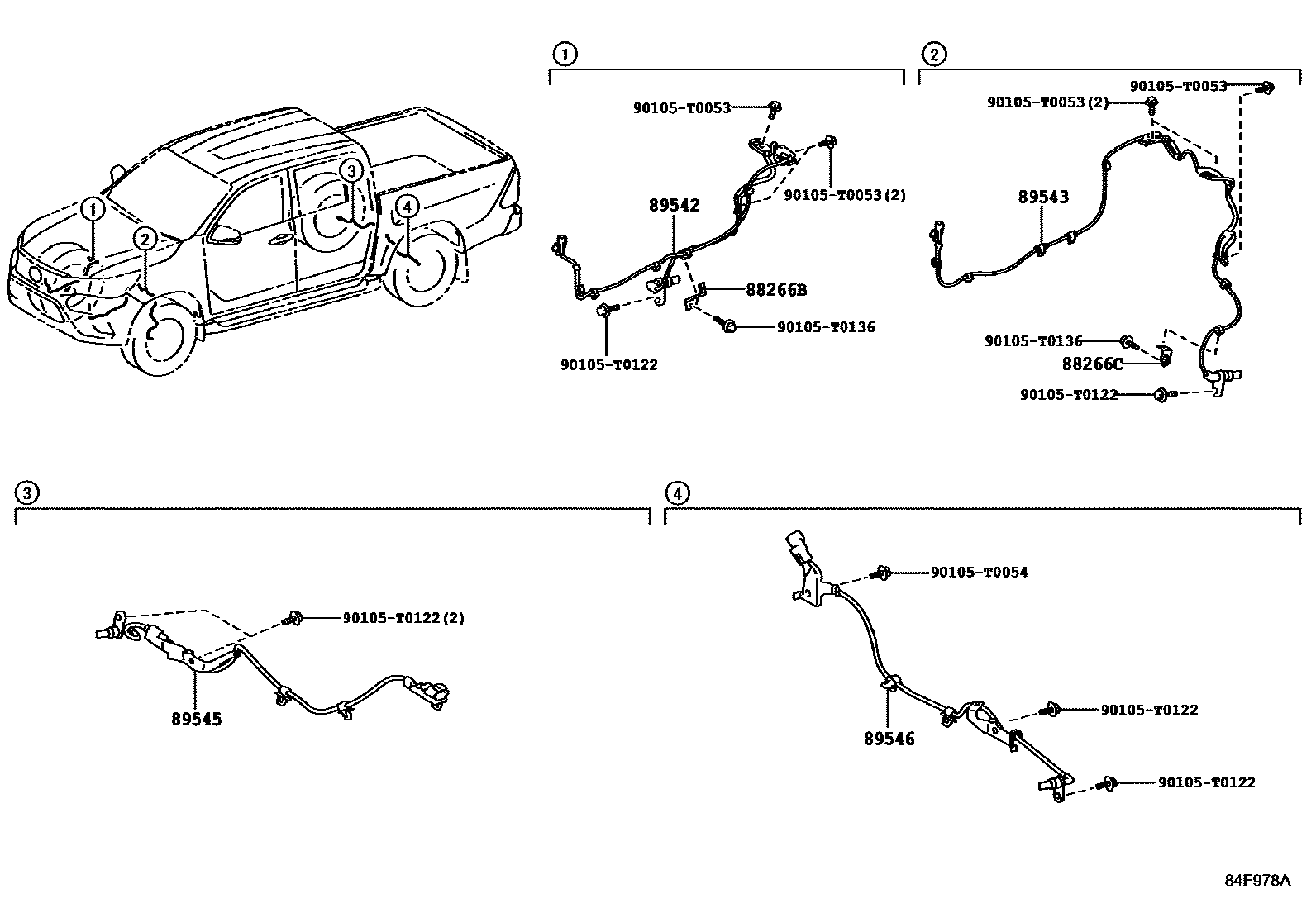

ABS & VSC

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iGUN135..IV3;GUN135..SASCB..X;GUN125..SASCB,SAXTR201506-202009

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K040iGUN135..SAXTR..X201506-202009

89542SENSOR, SPEED, FRONT RH

main89542-0K060iGUN12#,135..THDCB201506-202005

main89542-0K080iGUN135..IV3;GUN135..SASCB..X;GUN125..SASCB,SAXTR201604-202009

89543SENSOR, SPEED, FRONT LH

main89543-0K060iGUN12#,135201506-201510

sub89543-0K061

main89543-0K061iGUN12#,135..THDCB201511-202005

main89543-0K081iGUN135..SAXTR..X201604-202009

89545SENSOR, SPEED, REAR RH

main89545-0K240iGUN12#,135..THDCB201506-202005

main89545-0K290iGUN135..X..DCRE;GUN12#..SADCB..HDCR;GUN125..(SADCB,SASCB,SAXTR)..DCRE;GUN135..(SADCB,SASCB,SAXTR)..(M,S)..CBU201604-202009

89546SENSOR, SPEED, REAR LH

main89546-0K240iGUN12#,135..THDCB201506-202005

main89546-0K290iGUN135..SAXTR..X..CBU201604-202009

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

90105T0136

main90105-T0136

10 parts on this diagram · 1 diagram in section
