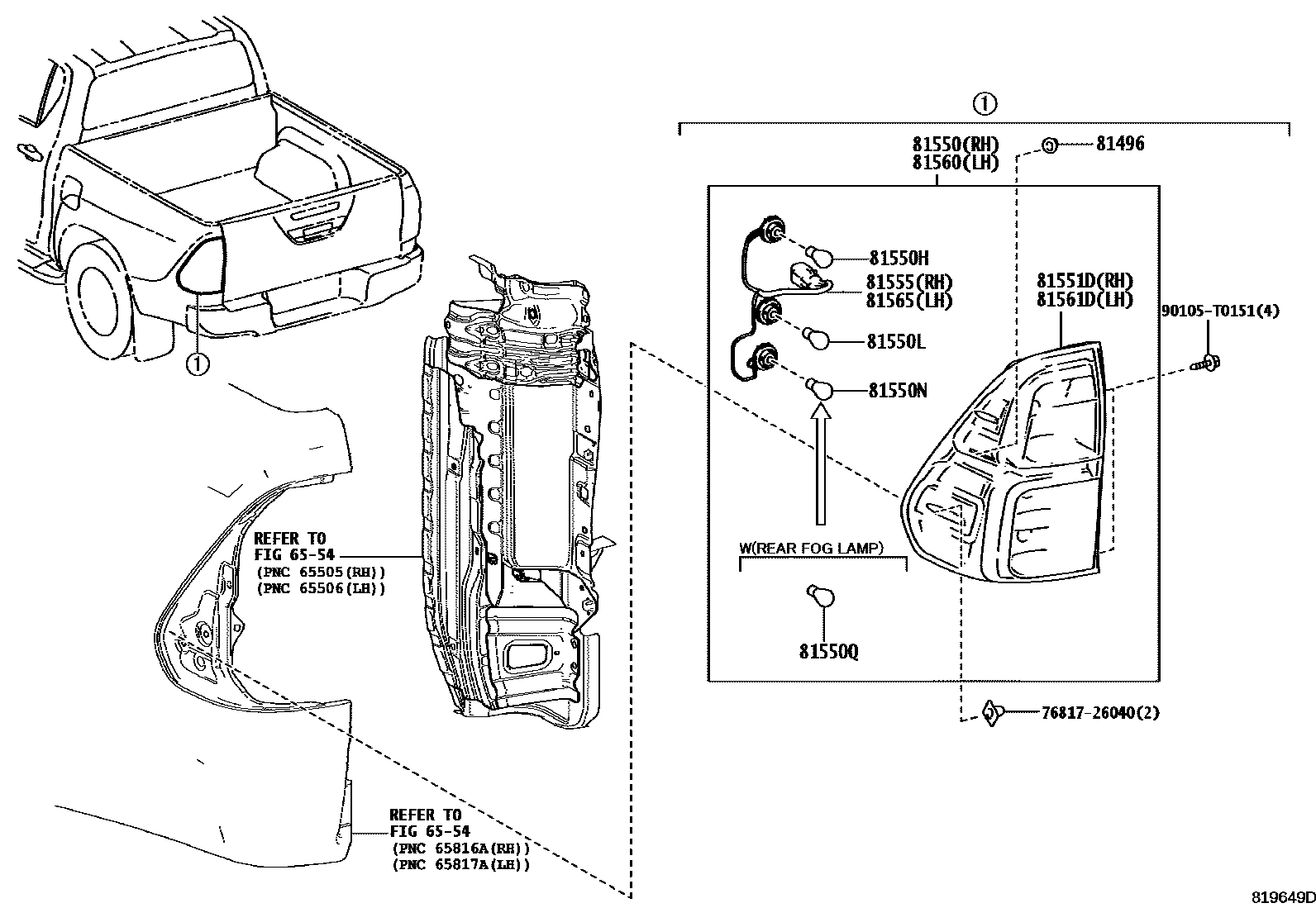

REAR COMBINATION LAMP

0001 1 0002 1

6554

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iGUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU201708-202009

(L)

main81496-52020iGUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU¥70201708-202009

(J)

main81496-52020iGUN12#,135..CBU¥70201506-201708

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K260iGUN12#,135..THDCB¥17,800201506-201703

sub81550-0K261¥20,200

main81550-0K261iGUN12#,135..THDCB¥20,200201704-202005

main81550-0K280iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..CBU201604-201706

sub81550-0K281

main81550-0K281iGUN135..SAXTR..X201707-202009

main81550-0K290iGUN125..RHD201604-201706

sub81550-0K291

main81550-0K291iGUN125..RHD..CBU201707-202009

main81550-0K360iGUN125,135..IV3201604-202009

81550HBULB, TAIL & STOP LAMP

main90981-13094iGUN135..SAXTR..X¥400201506-202009

12V 21/5W

main90981-TD004iGUN125,135..IV3201604-202009

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028iGUN135..SAXTR..X¥350201506-202009

12V 21W,AMBER

main90981-TD003iGUN125,135..IV3201604-202009

12V 21W

81550NBULB, BACK UP LAMP

main90981-13093iGUN135..SAXTR..X¥160201506-202009

12V 21W

main90981-TD003iGUN125,135..IV3201604-202009

12V 21W

81550QBULB, REAR FOG LAMP, NO.1

main90981-13093iGUN135..SAXTR..X¥160201506-202009

12V 21W

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K360iGUN125,135..IV3201604-202009

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K260iGUN12#,135..THDCB¥15,500201506-201704

sub81551-0K261¥11,700

main81551-0K261iGUN12#,135..THDCB¥11,700201704-202005

main81551-0K280iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..CBU201604-201707

sub81551-0K281

main81551-0K281iGUN135..SAXTR..X201707-202009

main81551-0K290iGUN125..RHD201604-201707

sub81551-0K291

main81551-0K291iGUN125..RHD..CBU201707-202009

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K260iGUN12#,135..THDCB¥1,540201506-202005

main81555-0K280iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..CBU201604-201707

sub81555-0K281

main81555-0K281iGUN135..SAXTR..X201707-202009

main81555-0K290iGUN125..RHD201604-201707

sub81555-0K291

main81555-0K291iGUN125..RHD..CBU201707-202009

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K270iGUN12#,135..THDCB¥20,600201506-201703

sub81560-0K271

main81560-0K271iGUN12#,135..THDCB201704-202005

main81560-0K280iGUN125..RHD201604-201706

sub81560-0K281

main81560-0K281iGUN125..RHD..CBU201707-202009

main81560-0K290iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..CBU201604-201706

sub81560-0K291

main81560-0K291iGUN135..SAXTR..X201707-202009

main81560-0K400iGUN125,135..IV3201604-202009

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K400iGUN125,135..IV3201604-202009

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K270iGUN12#,135..THDCB201506-201704

sub81561-0K271

main81561-0K271iGUN12#,135..THDCB201704-202005

main81561-0K280iGUN125..RHD201604-201707

sub81561-0K281

main81561-0K281iGUN125..RHD..CBU201707-202009

main81561-0K290iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..CBU201604-201707

sub81561-0K291

main81561-0K291iGUN135..SAXTR..X201707-202009

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K270iGUN12#,135..THDCB¥1,540201506-202005

main81555-0K280iGUN125..RHD201604-201707

sub81555-0K281

main81555-0K281iGUN125..RHD..CBU201707-202009

main81555-0K290iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..CBU201604-201707

sub81555-0K291

main81555-0K291iGUN135..SAXTR..X201707-202009

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040¥110

90105T0151

main90105-T0151¥60

16 parts on this diagram · 2 diagrams in section
