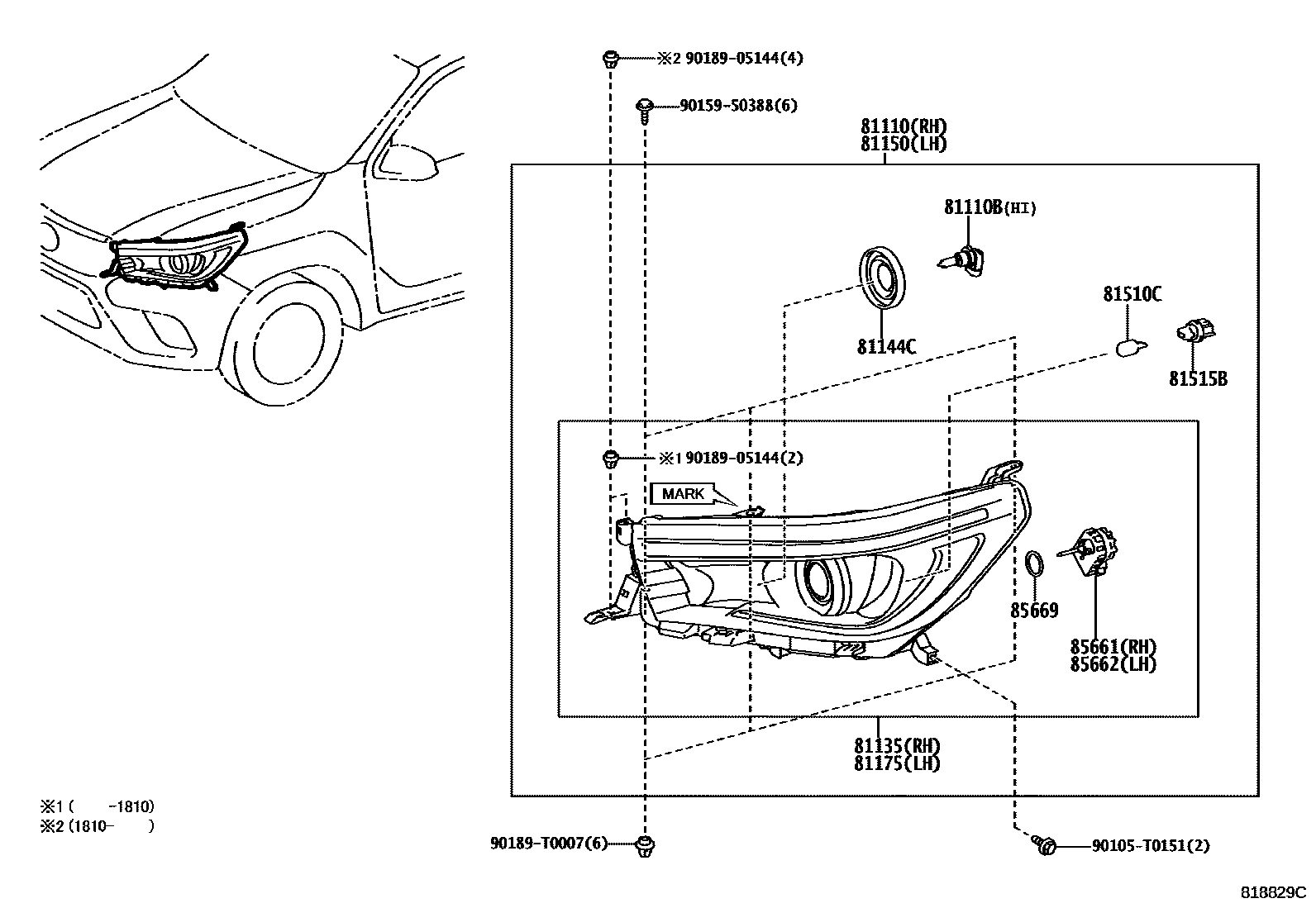

HEADLAMP

0001 1LED HEADLAMP 0002 1LED HEADLAMP 0003 1HALOGEN HEADLAMP 0004 1HALOGEN HEADLAMP 0005 1HALOGEN HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0K690iGUN12#,135..M,S201506-201604

sub81110-0K691

main81110-0K691iGUN12#,135..THDCB..(M,S)201604-201808

sub81110-0K692

sub90189-05144

main81110-0K692iGUN12#,135..THDCB..(M,S)201808-202005

main81110-0K720iGUN125..RHD..H201604-201810

W(*DAL & *CL LENS)

main81110-0K722iGUN125..RHD..H201810-202009

W/O(*DAL & *CL LENS)

main81110-0K730iGUN12#..LHD..H201506-201808

W(*DAL & *CL LENS)

main81110-0K732iGUN125..SAXTR..M201808-202009

HEADLAMP-LED,W/O(*DAL & *CL LENS)

main81110-0K732iGUN12#..LHD..H201808-202009

W/O(*DAL & *CL LENS)

main81110-0K780iGUN125..RHD..(M,S)201604-201606

sub81110-0K781

main81110-0K781iGUN125..RHD..(M,S)201606-201809

sub81110-0K782

sub90189-05144

main81110-0K782iGUN125..RHD..(M,S)201809-202009

main81110-0K790iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201604-201606

sub81110-0K791

main81110-0K791iGUN135..SAXTR..X201606-201809

sub81110-0K792

sub90189-05144

main81110-0K792iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201810-202009

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iGUN135..SAXTR..X201506-202009

12V 60/55W,HALOGEN

main90981-13099iGUN12#..H201506-202009

12V 65W(SAE),60W(UN)

81135UNIT ASSY, HEADLAMP, RH

main81130-0K690iGUN12#,135..M,S201506-201604

sub81130-0K691

main81130-0K691iGUN12#,135..THDCB..(M,S)201604-201808

sub81130-0K692

sub90189-05144

main81130-0K692iGUN12#,135..THDCB..(M,S)201808-202005

main81130-0K780iGUN125..RHD..(M,S)201604-201606

sub81130-0K781

main81130-0K781iGUN125..RHD..(M,S)201606-201809

sub81130-0K782

sub90189-05144

main81130-0K782iGUN125..RHD..(M,S)201809-202009

main81130-0K790iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201604-201606

sub81130-0K791

main81130-0K791iGUN135..SAXTR..X201606-201809

sub81130-0K792

sub90189-05144

main81130-0K792iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201810-202009

main81140-0K720iGUN125..RHD..H201604-201810

main81140-0K722iGUN125..RHD..H201810-202009

main81140-0K730iGUN12#..LHD..H201506-201808

main81140-0K732iGUN125..SAXTR..M201808-202009

HEADLAMP-LED

81144CCOVER, HEADLAMP SOCKET

main90075-65002iGUN135..SAXTR..S;GUN135..SADCB,SASCB;GUN12#..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201506-202009

main90075-65006iGUN12#..H201506-202009

main90075-65019iGUN12#,135..THDCB..(M,S)201604-202005

81150HEADLAMP ASSY, LH

main81150-0K690iGUN12#,135..M,S201506-201604

sub81150-0K691

main81150-0K691iGUN12#,135..THDCB..(M,S)201604-201808

sub81150-0K692

sub90189-05144

main81150-0K692iGUN12#,135..THDCB..(M,S)201808-202005

main81150-0K720iGUN125..RHD..H201604-201810

W(*DAL & *CL LENS)

main81150-0K722iGUN125..RHD..H201810-202009

W/O(*DAL & *CL LENS)

main81150-0K730iGUN12#..LHD..H201506-201808

W(*DAL & *CL LENS)

main81150-0K732iGUN125..SAXTR..M201808-202009

W/O(*DAL & *CL LENS)

main81150-0K732iGUN12#..LHD..H201808-202009

HEADLAMP-LED,W/O(*DAL & *CL LENS)

main81150-0K780iGUN125..RHD..(M,S)201604-201606

sub81150-0K781

main81150-0K781iGUN125..RHD..(M,S)201606-201809

sub81150-0K782

sub90189-05144

main81150-0K782iGUN125..RHD..(M,S)201809-202009

main81150-0K790iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201604-201606

sub81150-0K791

main81150-0K791iGUN135..SAXTR..S;GUN135..SADCB,SASCB;GUN12#..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201606-201809

sub81150-0K792

sub90189-05144

main81150-0K792iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201810-202009

81175UNIT ASSY, HEADLAMP, LH

main81070-0K720iGUN125..RHD..H201604-201810

main81070-0K722iGUN125..RHD..H201810-202009

main81070-0K730iGUN12#..LHD..H201506-201808

main81070-0K732iGUN12#..LHD..H201808-202009

HEADLAMP-LED

main81170-0K690iGUN12#,135..M,S201506-201604

sub81170-0K691

main81170-0K691iGUN12#,135..THDCB..(M,S)201604-201808

sub81170-0K692

sub90189-05144

main81170-0K692iGUN12#,135..THDCB..(M,S)201808-202005

main81170-0K780iGUN125..RHD..(M,S)201604-201606

sub81170-0K781

main81170-0K781iGUN125..RHD..(M,S)201606-201809

sub81170-0K782

sub90189-05144

main81170-0K782iGUN125..RHD..(M,S)201809-202009

main81170-0K790iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201604-201606

sub81170-0K791

main81170-0K791iGUN135..SAXTR..S;GUN135..SADCB,SASCB;GUN12#..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201606-201809

sub81170-0K792

sub90189-05144

main81170-0K792iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201810-202009

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iGUN12#..H201506-202009

12V 21W,AMBER

main90981-15028iGUN135..SAXTR..X201506-202009

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iGUN12#..H201506-202009

main90075-60069iGUN135..SAXTR..X201506-202009

85661MOTOR, HEADLAMP LEVELING, RH

main85661-02040iGUN12#..H201601-202009

main85661-0D020iGUN135..DCRE;GUN125..RHD..(M,S);GUN135..THDCB..HDCR;GUN12#..THDCB..(M,S);GUN125..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)..DCRE201506-202009

main85661-12020iGUN12#..H201506-201601

85662MOTOR, HEADLAMP LEVELING, LH

main85661-02040iGUN12#..H201601-202009

main85661-0D020iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201506-202009

main85661-12020iGUN12#..H201506-201601

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)..(M,S,X)201506-202009

90105T0151

main90105-T0151

9015950388

main90159-50388

9018905144

main90189-05144

90189T0007

main90189-T0007

15 parts on this diagram · 5 diagrams in section
