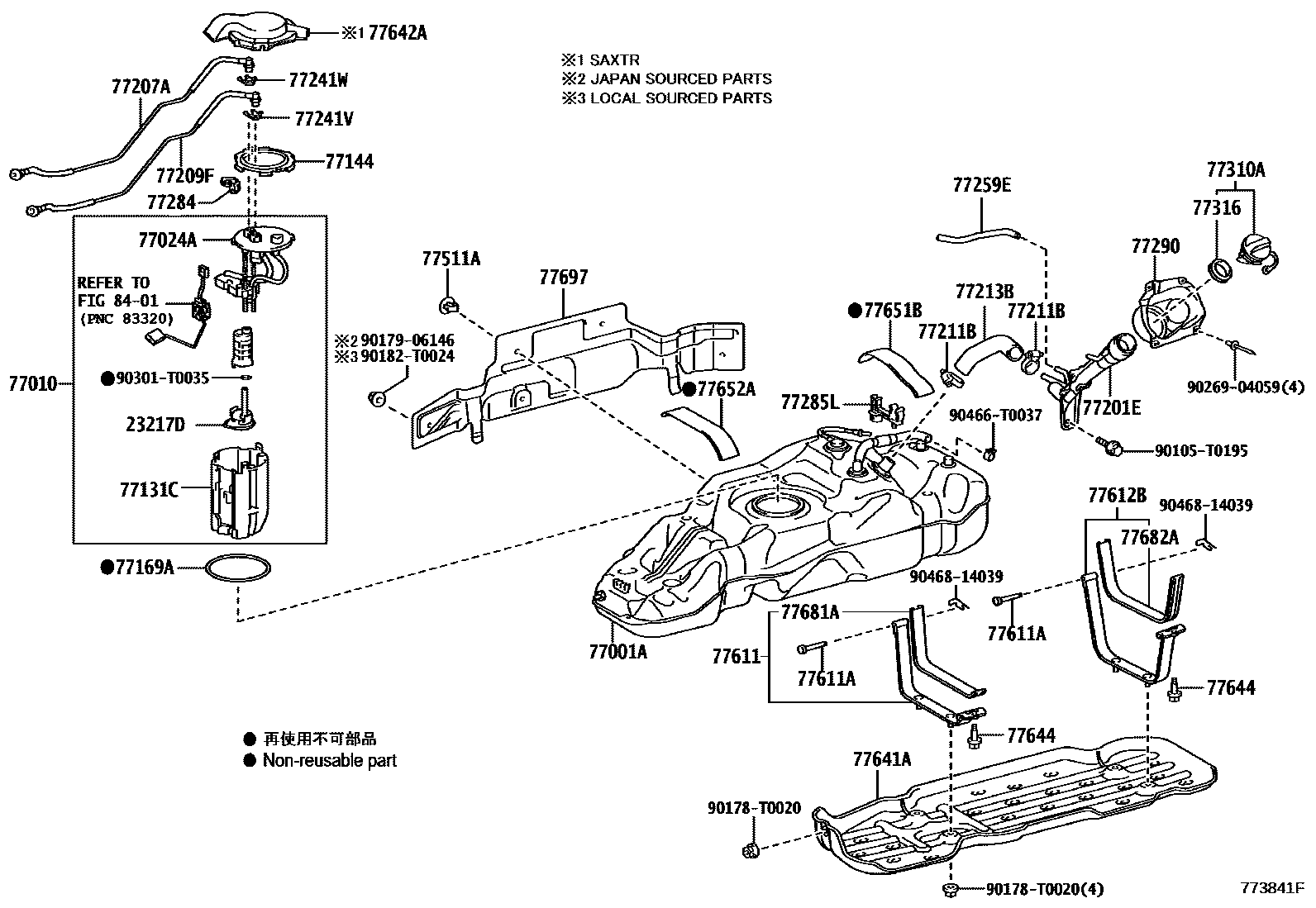

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
77001ATANK SUB-ASSY, FUEL
77010TUBE ASSY, FUEL TANK VENT
sub77010-0K201
main77010-0K201iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201809-202009
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
main77131-0K200iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201809-202009
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77207ATUBE SUB-ASSY, FUEL RETURN
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77241VCLIP, TUBE JOINT
77241WCLIP, TUBE JOINT
77259EHOSE, FUEL
77284CLAMP, FUEL TUBE
77285LCLAMP, FUEL TUBE, NO.1
main77285-0K250iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77511ABRACKET, FUEL TANK
77611BAND, FUEL TANK
(J)
(L)
77611APIN (FOR FUEL TANK BAND)
77612BBAND, FUEL TANK, NO.2
main77602-71010iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202001
(J)
(L)
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77644BOLT, FUEL TANK
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77681ASEAT, FUEL TANK BAND
(J)
(L)
77682ASEAT, FUEL TANK BAND, NO.2
(J)
(L)
77697INSULATOR, FUEL TANK HEAT, NO.1
8401
90105T0195
main90105-T0195
90178T0020
main90178-T0020
9017906146
main90179-06146
90182T0024
main90182-T0024
9026904059
main90269-04059
90301T0035
main90301-T0035
90466T0037
main90466-T0037
9046814039
main90468-14039
41 parts on this diagram · 5 diagrams in section
