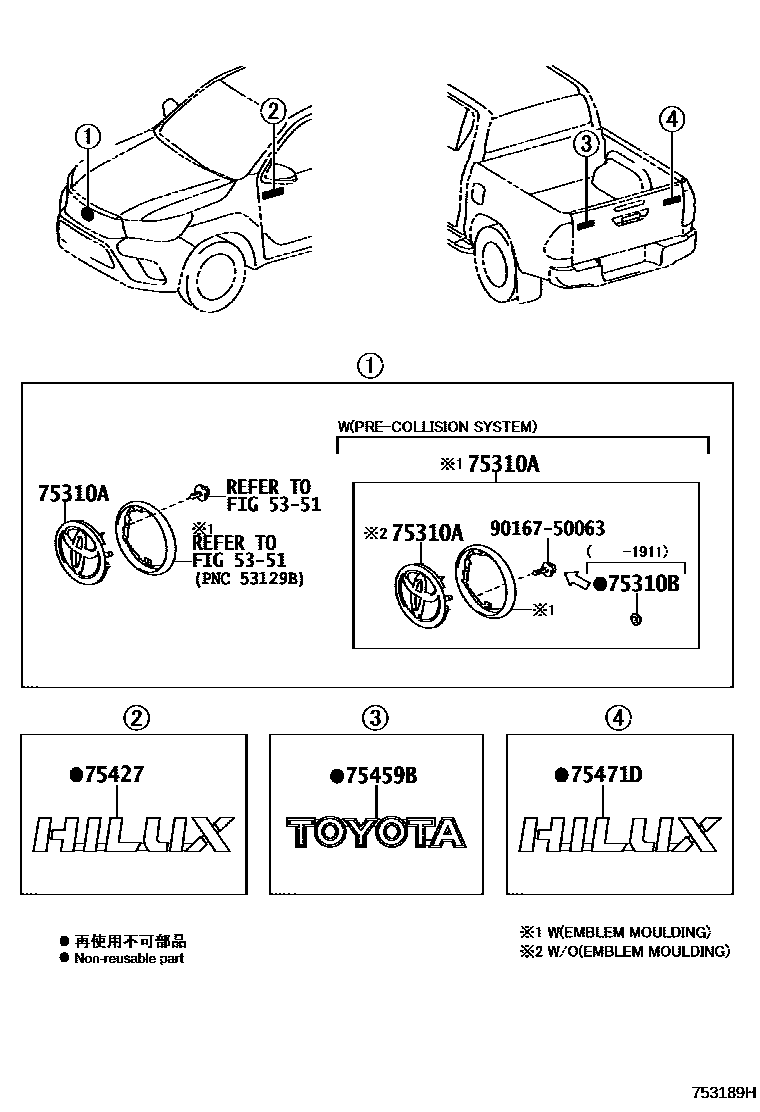

EMBLEM & NAME PLATE

5351

75310AEMBLEM ASSY, RADIATOR GRILLE

main53127-0K250iGUN125,135..(SADCB,SASCB,SAXTR)..(S,X)..DCRE201906-202009

sub53127-0K251

main53127-0K260iGUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

main53127-0K310iGUN125,135..THDCB..S..DCRE201905-201911

main53127-0K330iGUN125..THDCB..6FC..(H,M)201806-201905

PRE-COLLISION SYSTEM-WITH

main53127-0K330iGUN135..THDCB..M;GUN125..THDCB..(H,M)..DCRE201806-201911

main53127-0K490iGUN125,135..THDCB..S..DCRE201911-202005

main53127-0K520iGUN125,135..THDCB..(H,M)..DCRE201911-202005

main75310-0K040iGUN135..SAXTR..X201506-201807

TURKEY SPEC(EURO 5 REGULATION)

main75310-0K040iGUN125..S,X;GUN135..SAXTR..S;GUN125..THDCB..6F..M;GUN135..(SADCB,SASCB,THDCB)..(S,X)201506-201905

main75310-0K060iGUN125..HDCR201506-202005

75310BNUT, SPRING

main90183-06031iGUN125,135..(SADCB,SASCB,SAXTR)..DCRE201905-202009

main90183-06044iGUN135..THDCB..M;GUN125..THDCB..6FC..(H,M)201604-201905

PRE-COLLISION SYSTEM-WITH

main90183-06044iGUN135..THDCB..M;GUN125..THDCB..6FC..(H,M)201806-201905

UKRAINE SPEC(EURO 6 REGULATION)&PRE-COLLISION SYSTEM-WITH

75427PLATE, FRONT DOOR NAME

main75427-0K030iGUN126..SADCB201506-201807

TURKEY SPEC(EURO 5 REGULATION)

main75427-0K030iGUN125..THDCB..(H,M);GUN125..THDCB..6F..S201506-202009

main75427-0K080iGUN125..HDCR201506-202005

75459BMARK, TAIL GATE, NO.2

main75469-0K050iGUN125..THDCB..(H,M);GUN125..THDCB..6F..S201506-202009

main75469-0K050iGUN135..SAXTR..X201506-201807

TURKEY SPEC(EURO 5 REGULATION)

main75469-0K060iGUN125..HDCR201506-202005

75471DPLATE, REAR NAME

main75427-0K130iGUN125..6FC..S;GUN135..SAXTR..S..CBU;GUN125..THDCB..6F..DCRE;GUN125..THDCB..6FC..(H,M)..DCRE;GUN135..(SADCB,SASCB,THDCB)..CBU;GUN125..(SADCB,SASCB,SAXTR)..CBU201506-202009

HILUX

main75427-0K130iGUN135..SAXTR..X201506-201807

HILUX,TURKEY SPEC(EURO 5 REGULATION)

main75427-0K140iGUN125..HDCR201506-202005

HILUX

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section
