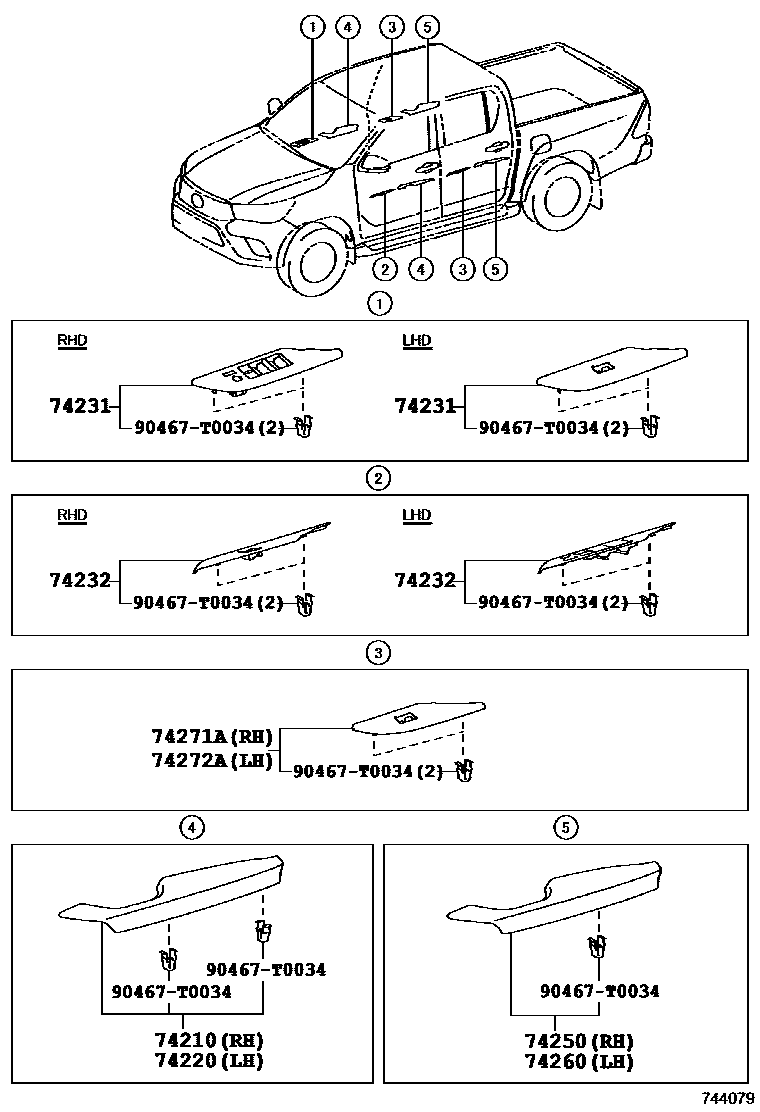

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-0K060-C3iGUN12#,135..THDCB201506-202005

BLACK,TRIM2#

main74210-0K060-D2iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

MAROON,TRIM3#

main74210-0K230-C0iGUN135..SAXTR..X201604-201807

BLACK,TRIM2#

main74210-0K240-C2iGUN125..SASCB,SAXTR;GUN135..(SASCB,SAXTR)..S..CBU201604-202009

BLACK,TRIM2#

main74210-0K260-C0iGUN125..X201604-202009

BLACK,TRIM2#

main74210-0K270-C3iGUN12#,135..SADCB..(H,M,S)201604-202009

BLACK,TRIM2#

main74210-0K080-C2iGUN12#,135..THDCB..(H,M)201506-202005

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

main74210-0K290-C2iGUN12#,135..SADCB..(H,M)201604-202009

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-0K060-C3iGUN12#,135..THDCB201506-202005

BLACK,TRIM2#

main74220-0K060-D2iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

MAROON,TRIM3#

main74220-0K230-C0iGUN135..SAXTR..X201604-201807

BLACK,TRIM2#

main74220-0K240-C2iGUN125..SASCB,SAXTR;GUN135..(SASCB,SAXTR)..S..CBU201604-202009

BLACK,TRIM2#

main74220-0K260-C0iGUN125..X201604-202009

BLACK,TRIM2#

main74220-0K270-C3iGUN12#,135..SADCB..(H,M,S)201604-202009

BLACK,TRIM2#

main74220-0K080-C2iGUN12#,135..THDCB..(H,M)201506-202005

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

main74220-0K290-C2iGUN12#,135..SADCB..(H,M)201604-202009

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0K600iGUN125,135..THDCB..S201506-202005

main74231-0K610iGUN12#,135..THDCB..(H,M)201506-201706

main74231-0K611iGUN12#,135..THDCB..(H,M)201707-202005

main74231-0K660iGUN125..RHD..SADCB..S201604-201707

main74231-0K770iGUN125..RHD..(SASCB,SAXTR)201604-202009

main74231-0K800iGUN12#,135..LHD..(SADCB,SAXTR)..(H,M)201604-202009

main74231-0K810iGUN125..RHD..(H,M)201604-202009

main74231-0KA90iGUN125..RHD..SADCB..S201707-202009

main74231-0KA80iGUN125..RHD..M201906-202009

OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0K590iGUN125..SAXTR..M201604-201706

main74232-0K591iGUN125..SAXTR..M201707-202009

main74232-0K650iGUN12#,135..THDCB..(H,M)201506-201706

main74232-0K651iGUN12#,135..THDCB..(H,M)201707-202005

main74232-0K660iGUN125,135..THDCB..S201506-202005

main74232-0K790iGUN125..RHD..S201604-202009

main74232-0K800iGUN125..RHD..(H,M)201604-202009

main74232-0K810iGUN12#,135..LHD..SADCB..(H,M)201604-202009

main74232-0K671iGUN126,135..THDCB..M;GUN125..THDCB..M..DCRE201905-202005

OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)

main74232-0KA60iGUN125..SAXTR..M201906-202009

OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)

main74232-0KB10iGUN125,135..LHD..SADCB..M201906-202009

OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)

74250ARMREST ASSY, REAR RH

main74250-0K020-C3iGUN12#,135..THDCB201506-202005

BLACK,TRIM2#

main74250-0K020-D2iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

MAROON,TRIM3#

main74250-0K170-C0iGUN125..X201604-202009

BLACK,TRIM2#

main74250-0K180-C3iGUN12#,135..SADCB..(H,M,S)201604-202009

BLACK,TRIM2#

main74250-0K040-C2iGUN12#,135..THDCB..(H,M)201506-202005

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

main74250-0K200-C2iGUN12#,135..SADCB..(H,M)201604-202009

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

74260ARMREST ASSY, REAR LH

main74260-0K020-C3iGUN12#,135..THDCB201506-202005

BLACK,TRIM2#

main74260-0K020-D2iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

MAROON,TRIM3#

main74260-0K170-C0iGUN125..X201604-202009

BLACK,TRIM2#

main74260-0K180-C3iGUN12#,135..SADCB..(H,M,S)201604-202009

BLACK,TRIM2#

main74260-0K040-C2iGUN12#,135..THDCB..(H,M)201506-202005

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

main74260-0K200-C2iGUN12#,135..SADCB..(H,M)201604-202009

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0K310iGUN125,135..THDCB..S201506-202005

main74271-0K320iGUN12#,135..THDCB..(H,M)201506-201706

main74271-0K321iGUN12#,135..THDCB..(H,M)201707-202005

main74271-0K390iGUN125,135..SADCB..S201604-202009

main74271-0K400iGUN12#,135..SADCB..(H,M)201604-202009

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0K310iGUN125,135..THDCB..S201506-202005

main74272-0K320iGUN12#,135..THDCB..(H,M)201506-201706

main74272-0K321iGUN12#,135..THDCB..(H,M)201707-202005

main74272-0K390iGUN125,135..SADCB..S201604-202009

main74272-0K400iGUN12#,135..SADCB..(H,M)201604-202009

90467T0034

main90467-T0034

9 parts on this diagram · 2 diagrams in section
