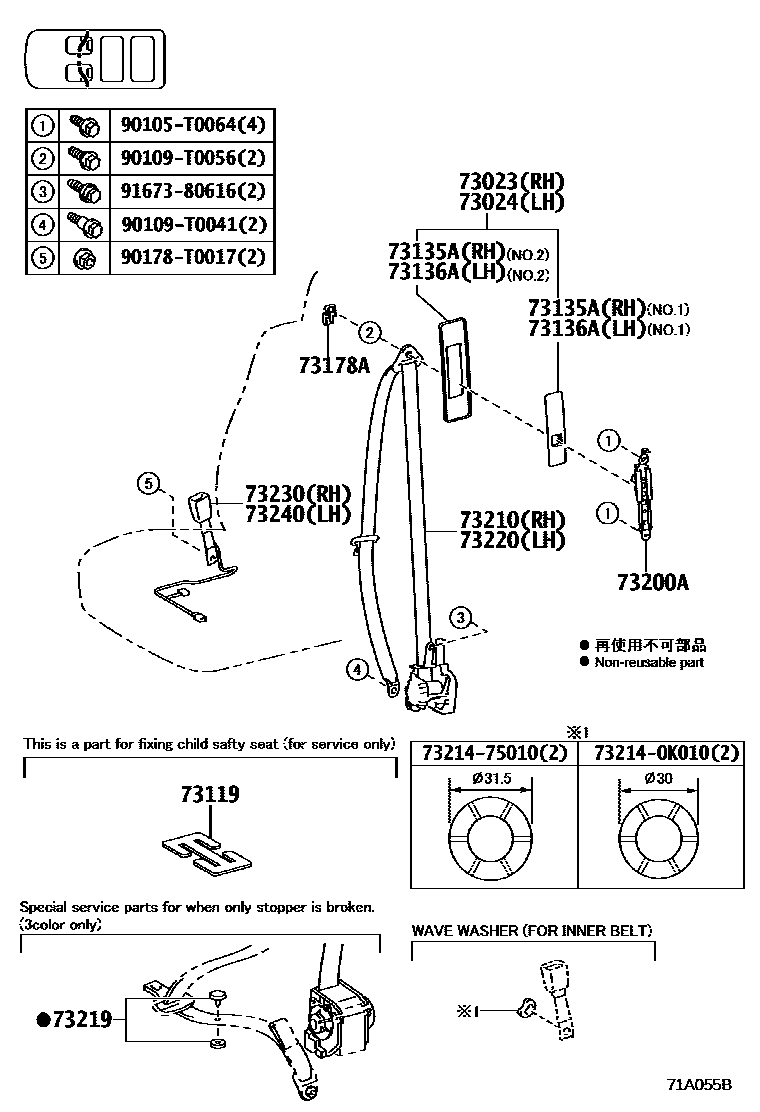

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#,3#,4#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
LT.GRAY,TRIM20,3#
LT.GRAY,TRIM20,3#,4#
main73023-KK010-C0iGUN125..6F..H..DCRE;GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE;GUN135..THDCB..M..DCRE201712-202006
BLACK,TRIM21
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#,3#,4#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
LT.GRAY,TRIM20,3#,4#
LT.GRAY,TRIM20,3#
main73023-KK010-C0iGUN125..6F..H..DCRE;GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE;GUN135..THDCB..M..DCRE201712-202006
BLACK,TRIM21
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM20,3#,4#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,3#,4#
BLACK,TRIM21
LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,3#,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,3#,4#,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,3#,4#,NO.1:REFER ILLUST.
main73135-KK010-C0iGUN125..6F..H..DCRE;GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE;GUN135..THDCB..M..DCRE201712-202006
BLACK,TRIM21,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,3#,4#,NO.2:REFER ILLUST.
LT.GRAY,TRIM20,NO.2:REFER ILLUST.
LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST.
LT.GRAY,TRIM20,3#,4#,NO.2:REFER ILLUST.
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
LT.GRAY,TRIM20,3#,NO.2:REFER ILLUST.
main73135-KK020-C0iGUN125..6F..H..DCRE;GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE;GUN135..THDCB..M..DCRE201712-202006
BLACK,TRIM21,NO.2:REFER ILLUST.
73136ACOVER, SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,3#,4#,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,3#,4#,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,3#,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,NO.1:REFER ILLUST.
main73135-KK010-C0iGUN125..6F..H..DCRE;GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE;GUN135..THDCB..M..DCRE201712-202006
BLACK,TRIM21,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST.
LT.GRAY,TRIM2#,3#,4#,NO.2:REFER ILLUST.
LT.GRAY,TRIM20,3#,4#,NO.2:REFER ILLUST.
LT.GRAY,TRIM20,3#,NO.2:REFER ILLUST.
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
LT.GRAY,TRIM20,NO.2:REFER ILLUST.
main73135-KK020-C0iGUN125..6F..H..DCRE;GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE;GUN135..THDCB..M..DCRE201712-202006
BLACK,TRIM21,NO.2:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#,3#,4#
LT.GRAY,TRIM20,3#,4#
LT.GRAY,TRIM20,3#
LT.GRAY,TRIM20
main73178-KK010-C0iGUN125..6F..H..DCRE;GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE;GUN135..THDCB..M..DCRE201712-202006
BLACK,TRIM21
LT.GRAY,TRIM20
main73178-KK020-B0iGUN135..IV3;GUN135..SASCB..CBU;GUN135..SAXTR..S..CBU;GUN125..SAXTR..M..HDCR;GUN125..(SASCB,SAXTR)..S201604-202009
LT.GRAY,TRIM2#
BLACK,TRIM21
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
LT.GRAY,TRIM20,3#,4#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM2#,3#,4#
LT.GRAY,TRIM20,3#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
main73200-0D051-C0iGUN125..6F..H..DCRE;GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H;GUN125..SADCB..M..DCRE;GUN135..THDCB..M..DCRE201712-202006
BLACK,TRIM21
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM20
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM20,3#
BLACK,TRIM21
BLACK,TRIM2#
sub73210-0K861
BLACK,TRIM21
sub73210-0K861
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM2#,3#
BLACK,TRIM20,3#
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM21
BLACK,TRIM2#
sub73220-0K571
BLACK,TRIM21
sub73220-0K571
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main73230-0KA50-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005
BLACK,TRIM2#,3#
main73230-0KA50-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005
BLACK,TRIM2#
main73230-0KA50-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005
SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main73230-0KA50-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
ISRAEL SPEC(EURO 6 REGULATION),BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
RUSSIA & UKRAINE SPEC,BLACK,TRIM2#
RUSSIA & UKRAINE SPEC,BLACK,TRIM2#,3#
TURKEY SPEC(EURO 5 REGULATION),BLACK,TRIM2#,3#
TURKEY SPEC(EURO 5 REGULATION),BLACK,TRIM2#
RUSSIA & UKRAINE SPEC&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
RUSSIA & UKRAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
TURKEY SPEC(EURO 5 REGULATION)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
TURKEY SPEC(EURO 5 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
ISRAEL SPEC(EURO 6 REGULATION),BLACK,TRIM2#
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
main73230-0KB50-C0iGUN135..SAXTR..S;GUN125..LHD..SADCB..DCRE;GUN125..LHD..(SASCB,SAXTR);GUN135..(SADCB,SASCB)..(S,X);GUN125..LHD..SADCB..(S,X)..HDCR;GUN135..(SADCB,SAXTR)..(M,X)..DCRE201604-202009
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#
ISRAEL SPEC(EURO 6 REGULATION)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#
RUSSIA & UKRAINE SPEC&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
TURKEY SPEC(EURO 5 REGULATION)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
main73230-0K880-C0iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..LHD..(SADCB,SASCB,SAXTR)..(S,X)201604-202009
SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
732140K010PLATE, FRONT SEAT BELT ANCHOR
7321475010PLATE, FRONT SEAT BELT ANCHOR
90105T0064
90109T0041
main90109-T0041
90109T0056
main90109-T0056
90178T0017
main90178-T0017
9167380616
19 parts on this diagram · 5 diagrams in section
