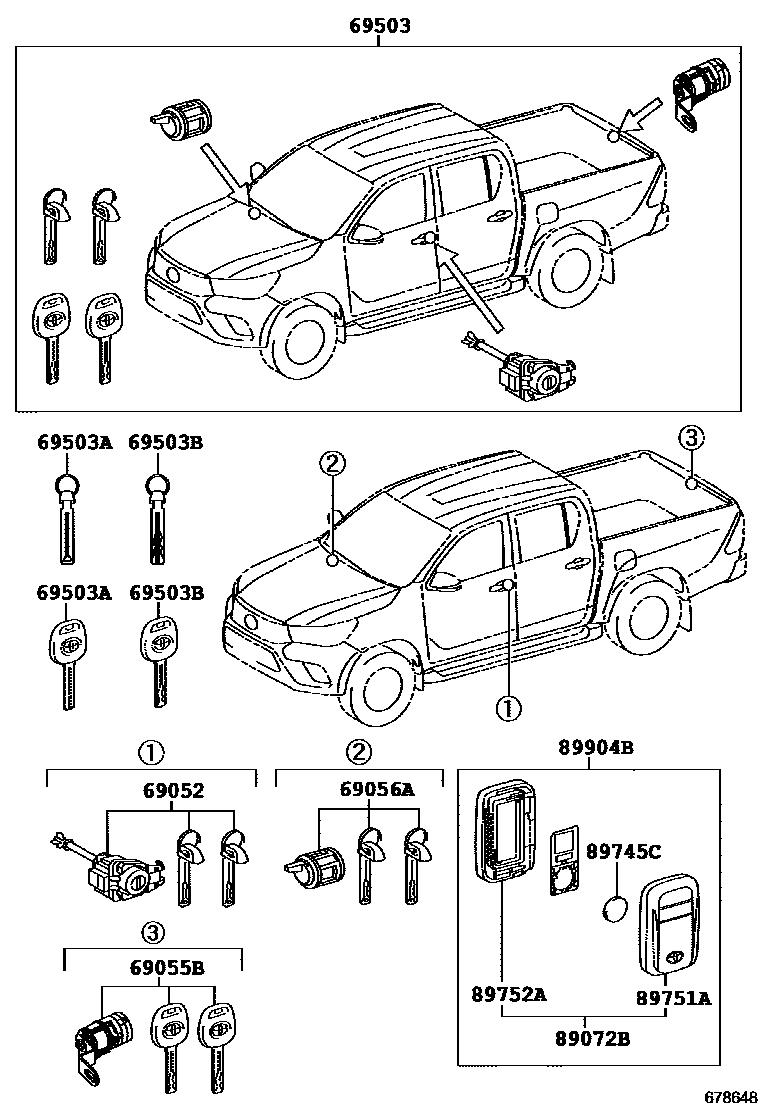

LOCK CYLINDER SET

0001 1WITH(SMART ENTRY) 0002 1WITH(WIRELESS DOOR LOCK) 0003 1WITHOUT(WIRELESS OR SMART ENT0004 1WITH(SMART ENTRY) 0005 1WITHOUT(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0K050iGUN135..IV3;GUN125,135..(SADCB,SASCB)..X..CBU201604-202009

main69052-0K060iGUN12#..LHD..(M,S);GUN135..(M,S)..CBU201506-202009

main69052-0K070iGUN12#..LHD..H201506-202009

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-0K060iGUN135..SAXTR..X201604-202009

main69055-0K070iGUN12#,135..(SADCB,SAXTR,THDCB)..(M,S)..CBU¥6,500201506-202009

main69055-0K080iGUN12#..H¥6,500201506-202009

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0K040iGUN135..SAXTR..X201604-202009

main69056-0K050iGUN12#..M,S;GUN135..(M,S)..CBU¥7,000201506-202009

main69056-0K060iGUN12#..H¥7,000201506-202009

69503CYLINDER SET, LOCK

main69005-0KB40iGUN135..SASCB..X..CBU201604-202009

main69005-0KB50iGUN135..IV3201604-202009

main69005-0KB70iGUN125..X201604-202009

main69005-0KC50iGUN125..RHD..H201604-202009

main69005-0KD10iGUN12#..LHD..H201506-202009

main89704-0KJ80iGUN125,135..LHD..SASCB..S..CBU201604-201710

sub89704-0KJ81

main89704-0KJ81iGUN125,135..LHD..SASCB..S..CBU201711-202009

main89704-0KK40iGUN125..RHD..SASCB201604-201710

sub89704-0KK41

main89704-0KK41iGUN125..RHD..SASCB..CBU201711-202009

main89704-0KK60iGUN12#,135..LHD..(SADCB,SAXTR,THDCB)..(M,S)..CBU201506-201710

sub89704-0KK61

main89704-0KK61iGUN12#,135..LHD..(SADCB,SAXTR,THDCB)..(M,S)..CBU201711-202009

main89704-0KK80iGUN125..RHD..(SADCB,SAXTR)..(M,S)201604-201710

sub89704-0KK81

main89704-0KK81iGUN125..RHD..(SADCB,SAXTR)..(M,S)..CBU201711-202009

sub89704-0KK82

main89704-0KL10iGUN125..IV3201604-201710

sub89704-0KL11

main89704-0KL11iGUN125..LHD..IV3201711-202009

main89704-0KV20iGUN125..RHD..IV3201906-202009

sub89704-0KV21

69503AKEY, BLANK

main69515-0K100iGUN12#..H201506-202009

MASTER KEY,W(*68),SMART KEY,INSIDE CUT

main69515-0K130iGUN12#..H¥7,200201506-202009

MASTER KEY,W(*68),INSIDE CUT TYPE

69503BKEY, CUT

main69515-0K070iGUN125..RHD..H¥7,100201604-202009

MASTER KEY,W(*68),FOR SMART KEY

main69515-0K070iGUN12#..LHD..H¥7,100201506-202009

MASTER KEY,W(*68),SMART KEY,INSIDE CUT

main69515-0K120iGUN12#..H¥7,100201506-202009

MASTER KEY,W(*68),INSIDE CUT TYPE

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-0K590iGUN12#..H201506-202009

89745CBATTERY, TRANSMITTER

main89745-0K010iGUN12#..H¥440201506-202009

CR2032

89751ACOVER, TRANSMITTER HOUSING

main89751-0K120iGUN12#..H¥3,520201506-202009

89752ACASE, TRANSMITTER HOUSING

main89752-0K180iGUN12#..H201506-202009

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0K490iGUN12#..H201506-202009

11 parts on this diagram · 5 diagrams in section
