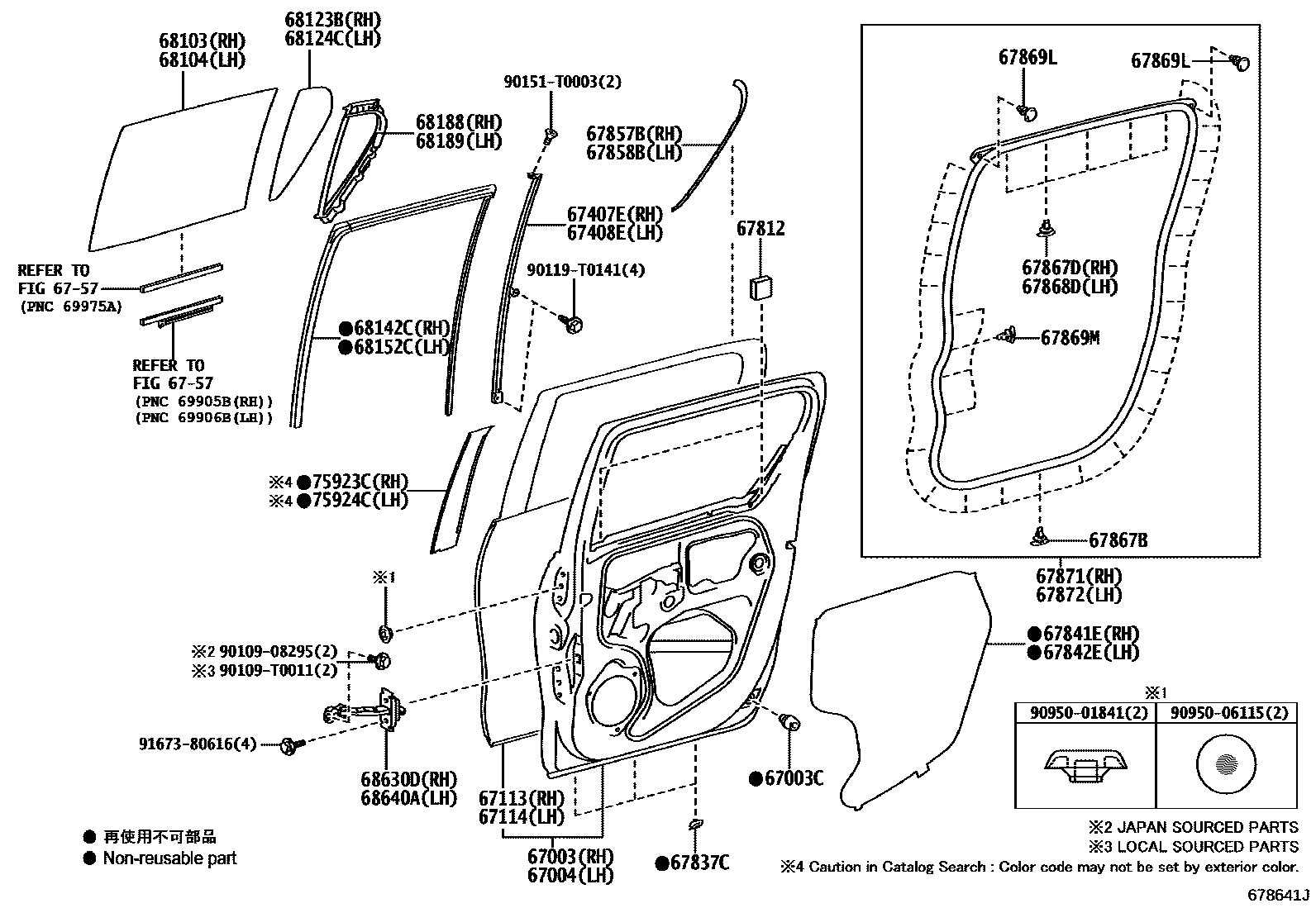

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM,W(POWER WINDOW) 0004 1DOOR TRIM,W/O(POWER WINDOW) 0005 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-KK010iGUN12#,135..SADCB,THDCB201506-201605

sub67003-KK011

main67003-KK011iGUN12#,135..SADCB,THDCB201606-202009

67003CCUSHION, REAR DOOR PANEL

main90541-09131iGUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S)201506-202009

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-KK010iGUN12#,135..SADCB,THDCB201506-201605

sub67004-KK011

main67004-KK011iGUN12#,135..SADCB,THDCB201606-202009

67113PANEL, REAR DOOR, OUTER RH

main67113-KK010iGUN12#,135..SADCB,THDCB201506-202009

67114PANEL, REAR DOOR, OUTER LH

main67114-KK010iGUN12#,135..SADCB,THDCB201506-202009

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K100iGUN12#,135..SADCB,THDCB201506-202009

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K100iGUN12#,135..SADCB,THDCB201506-202009

6757

67812PAD, REAR DOOR SILENCER

main69759-0K030iGUN12#,135..THDCB201506-202005

main69759-0K060iGUN12#,135..SADCB201707-202009

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K090iGUN135..6FC201506-201609

main67837-0K091iGUN12#,135..THDCB201609-201703

main67837-0K092iGUN12#,135..THDCB201704-201707

main67837-0K092iGUN12#,135..THDCB201707-202005

PLANT TMT

main67837-0K100iGUN125,135..SAXTR201604-201608

sub67837-0K101

main67837-0K101iGUN125,135..SAXTR201609-201703

sub67837-0K102

main67837-0K102iGUN135..SAXTR..X201704-202009

sub67837-0K103

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K130iGUN12#,135..SADCB,THDCB201506-202009

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0K010iGUN12#,135..SADCB,THDCB201506-202009

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0K030iGUN12#,135..THDCB201506-202005

main67857-0K080iGUN12#,135..SADCB201604-202009

main67857-0K090iGUN135..SAXTR..X201604-202009

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0K030iGUN12#,135..THDCB201506-202005

main67858-0K080iGUN12#,135..SADCB201604-202009

main67858-0K090iGUN135..SAXTR..X201604-202009

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150iGUN135..SAXTR..X201506-202009

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52010iGUN12#,135..SADCB,THDCB201604-202009

main67867-52020iGUN12#,135..SADCB,THDCB201506-201605

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52010iGUN12#,135..SADCB,THDCB201506-202009

main67867-52030iGUN12#,135..SADCB,THDCB201606-202009

67869LCLIP, REAR DOOR WEATHERSTRIP

main90467-06084iGUN12#,135..SADCB,THDCB201506-202009

67869MCLIP, DOOR WEATHERSTRIP

main67867-0K020iGUN12#,135..THDCB201701-202005

main67867-12150iGUN12#,135201506-201604

main67867-50050iGUN12#,135..SADCB201604-202009

main67869-20030iGUN125..SAXTR;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU201604-202009

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K080iGUN12#,135..THDCB201506-202005

sub67871-0K081

main67871-0K110iGUN12#,135..SADCB201604-202009

sub67871-0K111

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K080iGUN12#,135..THDCB201506-202005

sub67872-0K081

main67872-0K110iGUN12#,135..SADCB201604-202009

sub67872-0K111

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0K210iGUN125,135..THDCB..S201506-202005

main68113-0K220iGUN125,135..SADCB..(S,X)201604-202009

main68113-0K240iGUN12#,135..THDCB..(H,M)201506-202005

main68113-0K250iGUN12#,135..SADCB..(H,M)201604-202009

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0K210iGUN125,135..THDCB..S201506-202005

main68114-0K220iGUN125,135..SADCB..(S,X)201604-202009

main68114-0K240iGUN12#,135..THDCB..(H,M)201506-202005

main68114-0K250iGUN12#,135..SADCB..(H,M)201604-202009

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0K230iGUN125,135..THDCB..S201506-201705

sub68123-0K231

main68123-0K231iGUN125,135..THDCB..S201706-202005

main68123-0K240iGUN12#,135..THDCB..(H,M)201506-201702

sub68123-0K241

main68123-0K241iGUN12#,135..THDCB..(H,M)201703-202005

main68123-0K250iGUN125,135..SADCB..(S,X)201604-202009

main68123-0K260iGUN12#,135..SADCB..(H,M)201604-202009

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0K230iGUN125,135..THDCB..S201506-201705

sub68124-0K231

main68124-0K231iGUN125,135..THDCB..S201706-202005

main68124-0K240iGUN12#,135..THDCB..(H,M)201506-201702

sub68124-0K241

main68124-0K241iGUN12#,135..THDCB..(H,M)201703-202005

main68124-0K250iGUN125,135..SADCB..(S,X)201604-202009

main68124-0K260iGUN12#,135..SADCB..(H,M)201604-202009

68142CRUN, REAR DOOR GLASS, RH

main68142-0K080iGUN12#,135..THDCB201506-202005

main68142-0K100iGUN12#,135..SADCB201604-202009

68152CRUN, REAR DOOR GLASS, LH

main68152-0K080iGUN12#,135..THDCB201506-202005

main68152-0K100iGUN12#,135..SADCB201604-202009

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0K110iGUN12#,135..SADCB,THDCB201506-201607

main68188-0K111iGUN12#,135..SADCB,THDCB201607-202009

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0K110iGUN12#,135..SADCB,THDCB201506-201607

main68189-0K111iGUN12#,135..SADCB,THDCB201607-202009

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K080iGUN12#,135..SADCB201604-202009

main68630-0K090iGUN12#,135..THDCB201506-201801

sub68630-0K110

main68630-0K091iGUN125,135..THDCB..DCRE;GUN12#..THDCB..(H,M)..HDCR;GUN125..THDCB..6F..S..HDCR201811-202005

main68630-0K110iGUN135..THDCB;GUN125..6FC..S201802-201904

sub68630-0K091

68640ACHECK ASSY, REAR DOOR, LH

main68630-0K080iGUN12#,135..SADCB201604-202009

main68630-0K090iGUN12#,135..THDCB201506-201801

sub68630-0K110

main68630-0K091iGUN125,135..THDCB..DCRE;GUN12#..THDCB..(H,M)..HDCR;GUN125..THDCB..6F..S..HDCR201811-202005

main68630-0K110iGUN135..THDCB;GUN125..6FC..S201802-201904

sub68630-0K091

75923CTAPE, BLACK OUT, NO.2 RH

main75923-0K030iGUN12#,135..THDCB..(H,M)201506-202005

WHEEL CAP-WITH(FULL CAP)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main75923-0K030iGUN125..THDCB..S201806-202005

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main75923-0K090iGUN12#,135..SADCB..(H,M)201604-202009

WHEEL CAP-WITH(FULL CAP)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

75924CTAPE, BLACK OUT, NO.2 LH

main75924-0K030iGUN12#,135..THDCB..(H,M)201506-202005

WHEEL CAP-WITH(FULL CAP)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main75924-0K030iGUN125..THDCB..S201806-202005

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

main75924-0K090iGUN12#,135..SADCB..(H,M)201604-202009

WHEEL CAP-WITH(FULL CAP)&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90151T0003

main90151-T0003

9095001841

main90950-01841

9095006115

main90950-06115

9167380616

main91673-80616

40 parts on this diagram · 5 diagrams in section
