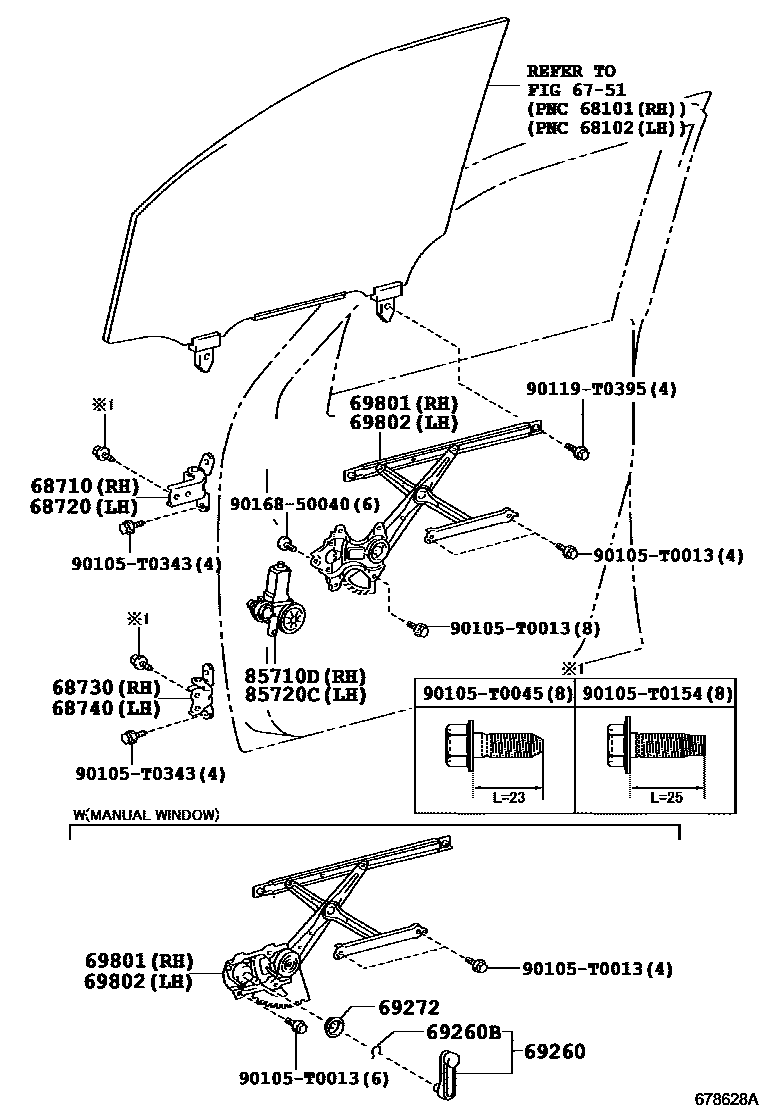

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

main68710-0D050iGUN12#,135..THDCB201506-202005

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

main68720-0D050iGUN12#,135..THDCB201506-202005

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02070iGUN135..SAXTR..X201604-201807

main68730-02100iGUN12#,135..THDCB201506-202005

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02070iGUN135..SAXTR..X201604-201807

main68740-02100iGUN12#,135..THDCB201506-202005

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0K040-C0×2iGUN135..SAXTR..X201604-201807

BLACK,TRIM2#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52152×2iGUN135..IV3;GUN135..SASCB..X..CBU201604-202009

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-02022×2iGUN135..SAXTR..X201604-201807

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K140iGUN12#,135..THDCB201506-202005

main69801-0K150iGUN12#..(SADCB,SASCB,SAXTR)..(H,M,S);GUN135..(SADCB,SASCB,SAXTR)..(M,S)..CBU201604-202009

main69810-0K270iGUN135..SAXTR..X201604-201807

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K140iGUN12#,135..THDCB201506-202005

main69802-0K150iGUN12#..(SADCB,SASCB,SAXTR)..(H,M,S);GUN135..(SADCB,SASCB,SAXTR)..(M,S)..CBU201604-202009

main69820-0K290iGUN135..SAXTR..X201604-201807

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K180iGUN12#..LHD..(M,S);GUN135..(M,S)..CBU201506-202009

main85710-0K190iGUN125..RHD;GUN12#..LHD..H201506-202009

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K180iGUN125..RHD..(M,S)201604-202009

main85720-0K190iGUN125..RHD..H;GUN135..(M,S)..CBU;GUN12#..LHD..(H,M,S)201506-202009

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0395

main90119-T0395

9016850040

main90168-50040

18 parts on this diagram · 1 diagram in section
